2.5" 2008-2010 Ford F250/F350 4wd Leveling System by Carli Suspension Brand: Carli Suspension | SKU: CS-FLVL-SIG-05
$840
- +
840

2.5" 2008-2010 Ford F250/F350 4wd Leveling System by Carli Suspension

Brand: Carli Suspension | SKU: CS-FLVL-SIG-05
$840.00

2.5" 2008-2010 Ford F250/F350 4wd Leveling System by Carli Suspension

Brand: Carli Suspension | SKU: CS-FLVL-SIG-05
$840.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Carli Suspension CS-FLVL-SIG-05 2.5 inch front leveling system for the Ford F250 / F350 4wd models in the year range 2008 thru 2010 is a high quality kit that will lift the front end while also improving ride quality and suspension performance.

Featured in this leveling system are 2.5 inch lift front coil springs that have a slightly reduced multi rate for better ride comfort. Paired with the coil springs are Carli Signature Series shock absorbers. These shocks use a 2" diameter body with Zinc plating and clear coating for corrosion resistance. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured.

Features & Benefits:

  • 2.5 inch front lift / 0 inch rear lift
  • High quality components
  • Front linear rate coil springs - with reduced linear rate to improve ride quality
  • Carli Signature 2.0 IFP Front Shocks - 2" diameter body with zinc plating and internal reservoir
  • Designed to improve ride quality
  • Front Travel = 9" / Rear Travel = stock
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)

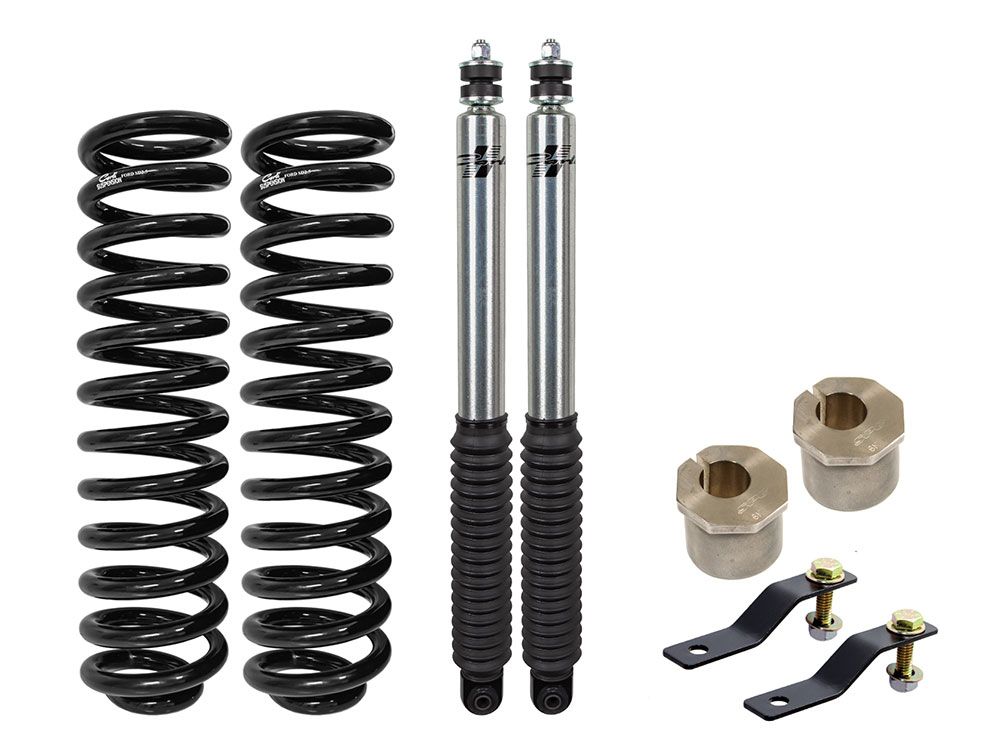

Components Included:

  • CS-FLC-05: Front Coil Springs
  • CS-FSIG20SPKG-FRONT-LVL-05: Carli Signature Series 2.0 IFP Shocks
  • CS-FCASTERSHIM-25: 2 degree Caster Shims
  • CS-FBLT-05: Brake Line Tabs

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Important Notes1. Recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspacing with factory arms
2. It is not advisable to use factory wheels with oversized tires, as this can lead to issues such as rubbing against the radius arm, sway bar, and, most importantly, the brake lines.

Available Options

Matching Rear Shocks
F250 / F350 2005-2023 Ford (w/0-2" rear) - Carli Signature 2.0 Shocks (set of 2)

These Carli Signature Series Shocks are a great suspension upgrade. Carli designed these shocks with a durable zinc plating finish with an added clear coating for corrosion resistance. Also added are high quality bushings and black dust boots to protect the shafts. Backed with a limited lifetime warranty.

  • Custom Tuned with Internal Floating Reservoir
  • Zinc plated finish with clear coat
  • High quality bushing
  • Limited Lifetime Warranty
Read More

These Carli Signature Series Shocks are a great suspension upgrade. Carli designed these shocks with a durable zinc plating finish with an added clear coating for corrosion resistance. Also added are high quality bushings and black dust boots to protect the shafts. Backed with a limited lifetime warranty.

  • Custom Tuned with Internal Floating Reservoir
  • Zinc plated finish with clear coat
  • High quality bushing
  • Limited Lifetime Warranty
$350
Leaf Spring Shackle
F250 / F350 Super Duty 2005-2023 Ford 4WD Fabricated Rear Leaf Spring Shackle Kit by Carli Suspension

Carli Suspension's Fabricated Leaf Spring Shackle kit is built from 1/4 inch steel construction and are greaseable and rebuildable. In contrast to the factory vulcanized bushings (which can significant portion of the rough ride experienced in Rams), the Carli shackle bushing assembly utilizes more bushing material and a thinner sleeve to prioritize ride damping. Moreover, the bushings are serviceable. You can droop the rear end and grease them through the protected zerk fitting. These heavy duty Carli shackles are a cost-effective method to improve the ride on the rear end of your truck, and works wonders by offering both serviceability and rebuildability. It is a worthwhile upgrade for your truck, even if you have factory leaf springs.

  • Carli utilize superior bushings over OEM
  • Greaseable and Rebuildable
  • Far better ride than factory shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
  • Carli provides a Limited Lifetime Warranty



Read More

Carli Suspension's Fabricated Leaf Spring Shackle kit is built from 1/4 inch steel construction and are greaseable and rebuildable. In contrast to the factory vulcanized bushings (which can significant portion of the rough ride experienced in Rams), the Carli shackle bushing assembly utilizes more bushing material and a thinner sleeve to prioritize ride damping. Moreover, the bushings are serviceable. You can droop the rear end and grease them through the protected zerk fitting. These heavy duty Carli shackles are a cost-effective method to improve the ride on the rear end of your truck, and works wonders by offering both serviceability and rebuildability. It is a worthwhile upgrade for your truck, even if you have factory leaf springs.

  • Carli utilize superior bushings over OEM
  • Greaseable and Rebuildable
  • Far better ride than factory shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
  • Carli provides a Limited Lifetime Warranty



$265
Adjustable Track Bar
F250/F350 2005-2016 Ford 4WD (w/2.5-4.5" Front Lift) Adjustable Track Bar by Carli Suspension

Adjustable to re-center the front geometry after lifting the front-end while providing a stronger link between the suspension and steering to accommodate the larger tires.

  • Keeps front axle centered
  • Tightens Steering Feel while Extending Service Life
Read More

Adjustable to re-center the front geometry after lifting the front-end while providing a stronger link between the suspension and steering to accommodate the larger tires.

  • Keeps front axle centered
  • Tightens Steering Feel while Extending Service Life
$420
High-Mount Steering Stabilizer
F250 / F350 2008-2016 Ford 4WD (w/2.5"-4.5" Suspension Lift) High Mount Steering Stabilizer by Carli Suspension

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts in factory OE location
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts in factory OE location
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
$450
Low-Mount Steering Stabilizer
F250 / F350 2005-2022 Ford 4WD Low Mount Steering Stabilizer with Diff Guard by Carli Suspension

This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts to tie-rod and included diff guard
  • Corrects left tire pull, adjustable
  • Combines with High-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts to tie-rod and included diff guard
  • Corrects left tire pull, adjustable
  • Combines with High-Mount for opposing stabilization
$695
Adjustable Radius Arms
F250 / F350 2005-2022 Ford 4WD (w/2.5"-3.5" of lift) Fabricated Radius Arm System by Carli Suspension

Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.

  • Heavy Duty design provides a massive strength upgrade over factory arms
  • 0.5°-2.5° of adjustable Caster correction
  • Improved ride quality and control
  • Internal Cross Bracing and Gusseting for superior strength and durability
  • Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
  • Includes 12" Limit straps
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.

  • Heavy Duty design provides a massive strength upgrade over factory arms
  • 0.5°-2.5° of adjustable Caster correction
  • Improved ride quality and control
  • Internal Cross Bracing and Gusseting for superior strength and durability
  • Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
  • Includes 12" Limit straps
  • Carli provides a Limited Lifetime Warranty
$1565
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2010, 2009, 2008
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-FLVL-SIG-05
Item Numbercar_cs-flvl-sig-05
MPN(UPC)883584150565
Product LineLeveling Kits
Lift Height2.5 inch
