3.5" 2020-2022 Ford F250/F350 4wd (w/Diesel Engine) Commuter System by Carli Suspension

This Carli Suspension CS-FLVL-COM-CS-17 3.5-inch Commuter lift system for the Ford F250 / F350 4WD diesel models is a premium lift kit that will lift your vehicle enough to fit up to 37-inch x 12.5-inch tires (w/trimming). It is perfect for Ford owners wanting the best on-road ride quality and not planning on much off-roading.

This lift kit system features 3.5-inch lift front coil springs with a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. An internal reservoir with a 5/8-inch diameter hardened steel chrome-plated shaft is also featured.

An adjustable front track bar is included to keep the front axle centered properly. In typical Carli fashion, this bar has features not found in other track bars. This includes 3/8-inch DOM construction that allows for the use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

This package completes the front-end enhancements by incorporating Caster Shims to enhance steering responsiveness. Additionally, a custom High-Clearance Bump Stop Drop is provided to ensure the springs maintain proper clearance from the factory bump stop.

In the rear, Carli gives you various choices to lift or not lift the vehicle's rear. The base kit does not lift the rear; however, for a level ride, you will want to choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec.

Features & Benefits:

• 3.5 inch front lift / 0 to 1 inch rear lift (optional rear lift)
• Premium lift kit optimized for on-road ride quality
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli SPEC 2.0 IFP Front and Rear Shocks - 2" diameter aluminum body with internal reservoir
• Shocks are fully serviceable and rebuildable
• Optional Rear Add-a-Pack replaces factory overload springs, transforming the factory leaf spring pack into a progressive system (F250 only)
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Stainless steel braided extended front brake hoses
• Front Travel = 9.5" / Rear Travel = 12.3"
• Lifetime warranty on components, 1-year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)

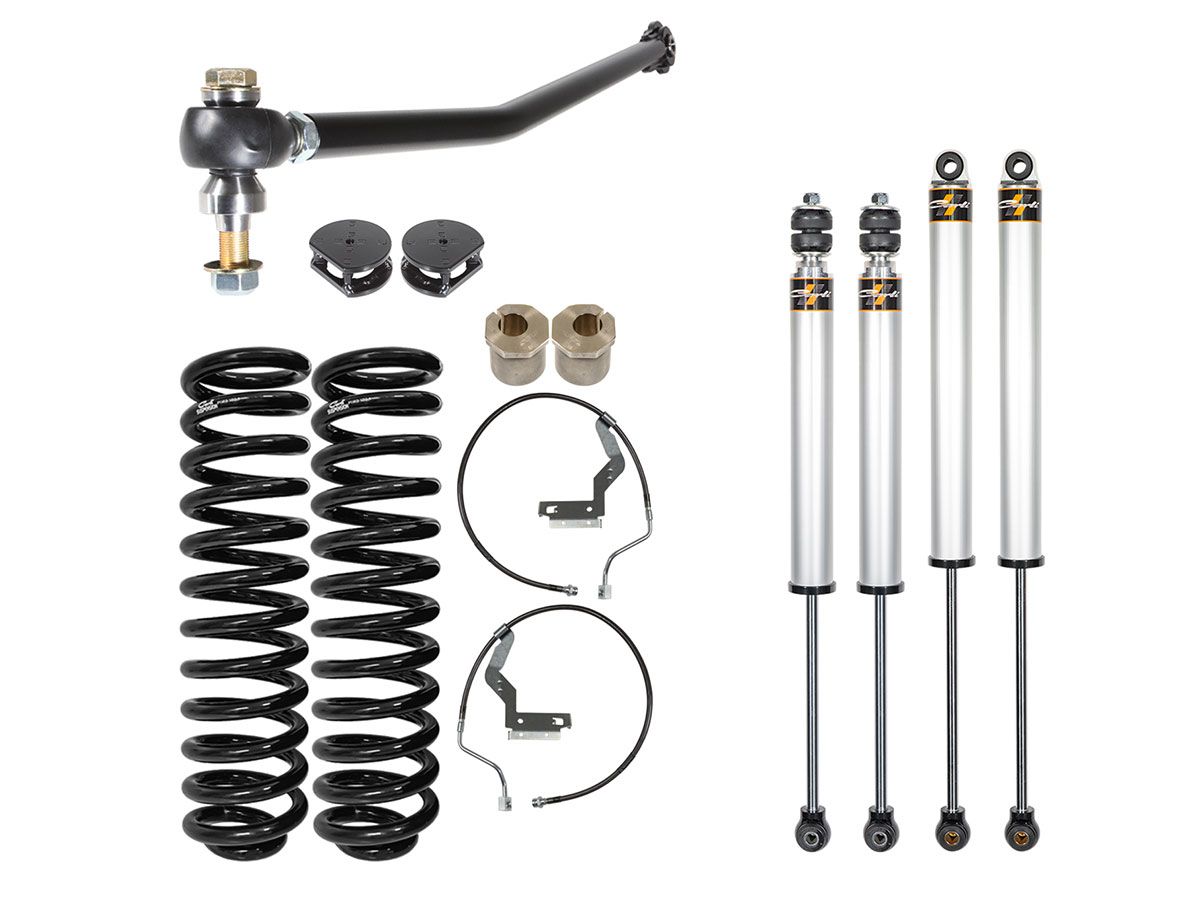

Components Included:

• CS-FLC-05: Front Coil Springs
• CS-FLVLSPKG-CS20IFP-A: Carli SPEC 2.0 IFP Shocks, Front and Rear
• CS-FORDBBL-LVL-17-F: Front Brake Lines
• CS-FCASTERSHIM-25: 2 degree Caster Shims
• CS-FBDF-25-17: High Clearance Front Bump Stops
• CS-FATB-17: Adjustable Track Bar

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and/or performance of this leveling system. These can be found in the option section above.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.
