2.5" 2005-2007 Ford F250/F350 4wd (w/Diesel Engine) Pathfinder System by Carli Suspension

The Carli Pathfinder 2.5" Leveling System (CS-FLVL-PF-05) is engineered for Ford Super Duty owners who want exceptional on-road comfort with confident light-to-moderate off-road capability. Positioned between Carli’s Backcountry and Pintop systems, the Pathfinder delivers a smooth, controlled ride that removes fatigue from daily driving while still performing when the pavement ends.

This system levels the front approximately 2.5" using Carli front coil springs and dramatically improves ride quality with Carli-SPEC 2.5" remote reservoir shocks. Featuring hard-anodized aluminum bodies, increased oil volume, and Carli’s custom valving, these shocks provide excellent heat management, consistent damping, and long service intervals—ideal for highway miles, rough roads, and light off-road use.

To maintain proper suspension geometry and steering feel, the Pathfinder includes an adjustable front track bar, and caster shims to recenter the axle and restore alignment at ride height. Stainless steel brake lines ensure safe operation through the system’s increased suspension travel.

Designed as the perfect middle ground for Super Duty owners, the Pathfinder offers a plush, composed ride without requiring aggressive driving to feel the benefits. It’s an ideal solution for drivers who prioritize comfort and control on the road but still want their suspension to come alive off pavement.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 1" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec.

Features & Benefits

• 2.5-inch front lift / 0 to 1-inch rear lift (optional rear lift)
• Premium lift kit optimized for all conditions: on-road road quality, towing, and slow to medium speed off-roading
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• Carli-SPEC 2.5" remote reservoir shocks for superior ride quality
• Hard-anodized aluminum shock bodies for durability and corrosion resistance
• 55% more piston surface area than 2.0" shocks for improved heat control
• Radius arm drop brackets and caster shims restore proper steering geometry
• Designed for excellent on-road comfort with light to moderate off-road performance
• Shocks are fully serviceable and rebuildable
• Designed to improve ride quality and suspension performance
• Optional Rear Add-a-Pack - Replaces factory overload springs, transforming the factory leaf spring pack into a progressive system (F250 only)
• Heavy-duty radius arm drop brackets maintain proper caster, allowing for optimal alignment specs
• Optional Rear Progressive Leaf Springs - Provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec
• Adjustable track bar - keeps the front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Stainless steel braided extended front brake hoses
• Lifetime warranty on components, 1-year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires or 37 inch x 12.5 (with trimming)
• Made in the USA

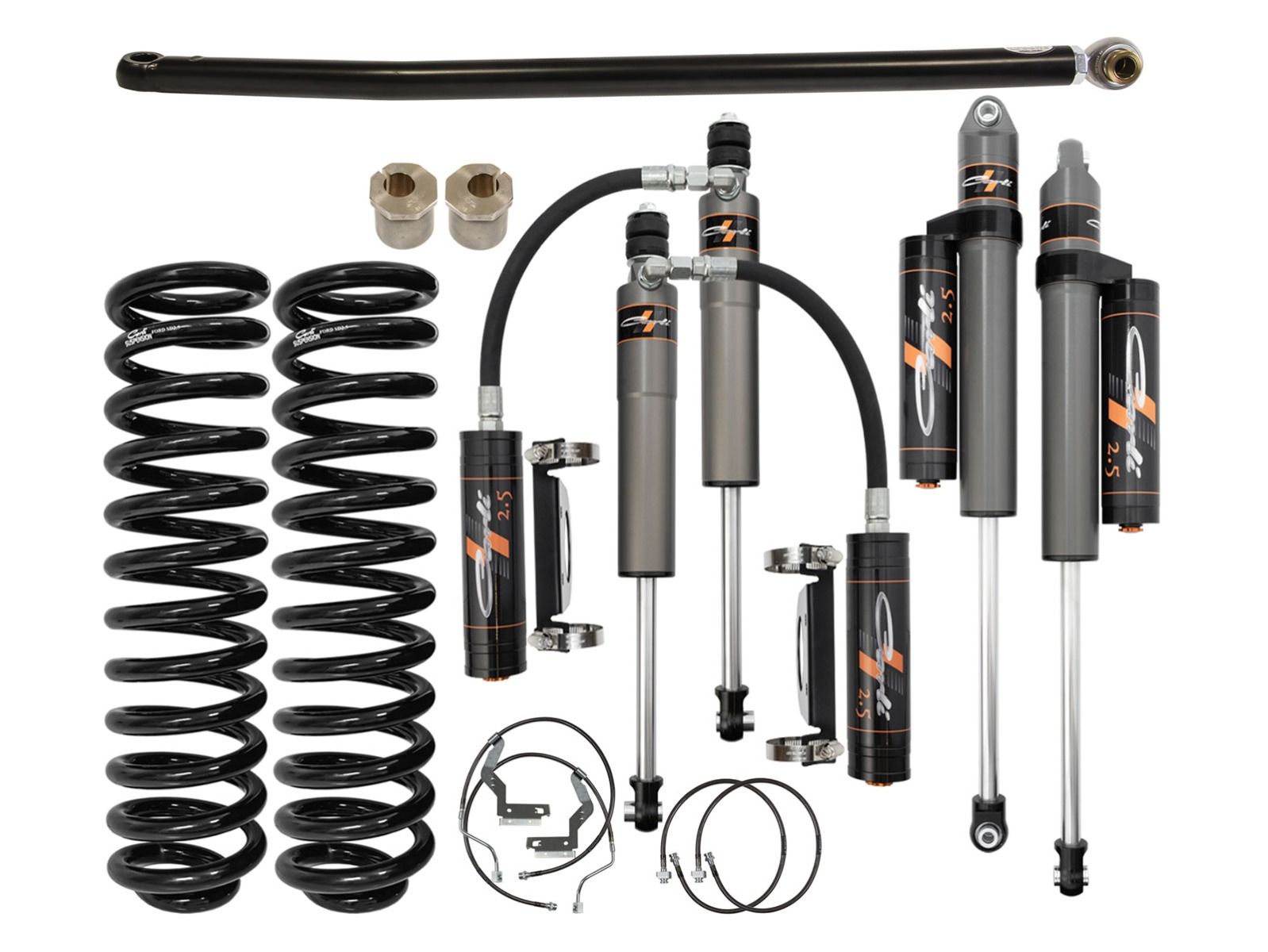

Base Kit Includes

• Carli front leveling coil springs
• Carli-SPEC 2.5" remote reservoir shocks with mounts
• Adjustable front track bar
• 2° caster shims
• Stainless steel front brake lines
