2.5" 2019-2024 Dodge Ram 1500 Rebel 4wd Performance Lift System by Carli Suspension

This Carli Suspension CS-RAM15PERF25-RBL-19 Performance 2.5 inch lift system for the Dodge Ram 1500 Rebel 4wd models is a premium lift kit that will lift your vehicle enough to fit up to 35 inch x 12.5 inch tires. It is perfect for Ram owners wanting the best ride quality during on-road, highway, towing/hauling along with slow to mid speed off road use.

Featured in this lift kit system are 2.5" inch lift front Carli tuned King 2.5 Remote Reservoir Coilovers. Paired with the coilovers are King 2.5 remote resi shock absorbers. These custom Carli King shocks and coilovers use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

Boxed steel Carli upper control arms are included to provide corrected geometry by changing the pivot point position. 1 inch FK Uniballs and Carli machined 17-4 Stainless Uniball Pin combine to allow 1 inch more droop travel than the factory ball joint. Poly bushings and crush sleeves minimize vibrations and provide a solid mount. Bushings and uniballs are fully serviceable and replaceable.

In the rear Carli gives you the choice of rear coil springs that will best fit your needs. Standard coil springs will provide .5 of rear lift and are designed for models without the Ram Box or Multi-Function Tailgate options.   Heavy Duty coil springs provide .5 inches of rear lift designed for models with the Ram Box or Multi-Function Tailgate options or 500 lbs constant load.

Features & Benefits:

• 2.5 inch front lift  / .5 rear lift
• Premium lift kit optimized for on-road road quality, towing and slow to mid speed off-roading
• King 2.5 Remote Resi Coilovers and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Shocks are fully serviceable and rebuild-able
• Carli Upper Control Arms with FK Uniballs and Poly Bushings
• Rear extended sway bar links with aluminum bodies
• Designed to greatly improve ride quality for on-road use
• Stainless steel braided extended front brake hoses
• Front Travel = 9" / Rear Travel = 12"
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 35 inch x 12.5 tires

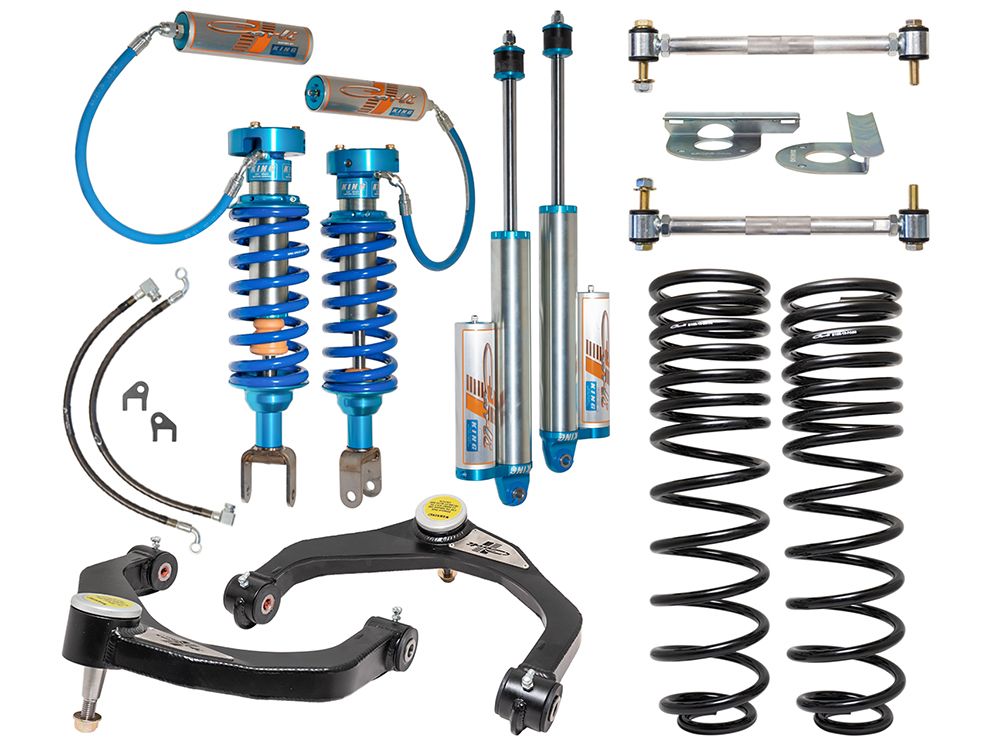

Components Included:

• AS-RAM15PERF25SPKG-19: Carli Tuned King 2.5" Coilovers w/Resi, King 2.5 Rear Shocks with Resi
• CS-RAM15UCA-09: Upper Control Arms
• CS-RAM15-EL-R: Rear Sway Bar End Links
• CS-RAM15BBL-19: Front Brake Line Kit
• CS-RAM15MRC-19-R or CS-RAM15MRC-RBL-19-R-HD: Rear Coil Springs
