6" 2014-2018 Chevy Silverado 1500 4wd Performance Coilover Lift Kit by Fabtech Brand: Fabtech | SKU: K1067DL / K1068DL / K1072DL / K1073DL
$4176.17
- +
4176.17

6" 2014-2018 Chevy Silverado 1500 4wd Performance Coilover Lift Kit by Fabtech

Brand: Fabtech | SKU: K1067DL / K1068DL / K1072DL / K1073DL
From $4,176.17 Regular Price $4,640.19

6" 2014-2018 Chevy Silverado 1500 4wd Performance Coilover Lift Kit by Fabtech

Brand: Fabtech | SKU: K1067DL / K1068DL / K1072DL / K1073DL
From $4,176.17 Regular Price $4,640.19


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

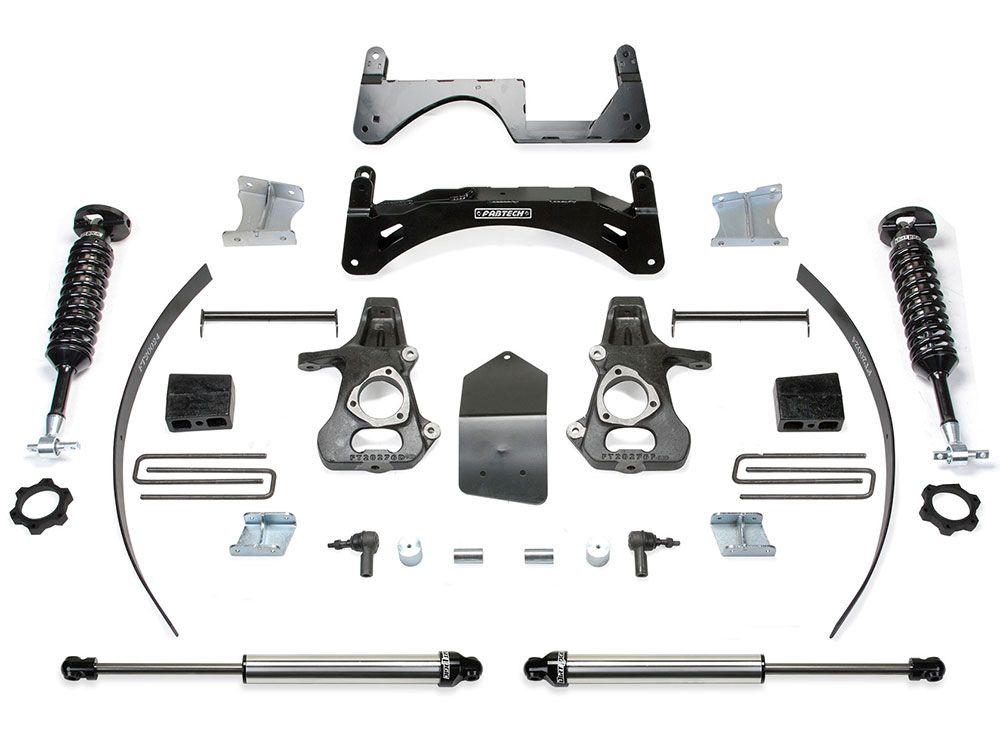

The Fabtech K1067DL / K1068DL 6 inch lift kit for the Chevy Silverado 1500 is a premium suspesnion sytem that features Dirt Logic front coilovers for awesome on and off-road performance.  Choose from the 2.5 version or the massive 4.0 Dirt Logic Coilover.  Also included are high arched 1/4" thick steel crossmember good better ground clearance. Ductile iron steering knuckles keep track width near stock and working properly with the Stablitrac® safety functions. The front differential is relocated with heavy duty brackets while a tightly formed 1/4 ” thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5” tall blocks and u bolts.

Top Features and Benefits

  • Allows use of 35 inch diameter tires
  • Features Dirt Logic 2.5 or 4.0 High Performance Coil-Overs
  • High arched crossmembers for better ground clearance
  • Offset ductile iron knuckles that keep wheel under fenders
  • Rear Dirt Logic 2.25 shocks provide excellent damping
  • Compatible with factory Stablitrac
  • Limited Lifetime Warranty

Recommended Tires and Wheels

  • Use 35/1250R17 tires w/ 17x8 wheels w/ 5 inch BS w/ minor trimming
  • Use 325/65R18 tires w/ 18x9 wheels w/ 5 inch BS w/ minor trimming
  • Use 35/1250R20 tires w/ 20x9 wheels w/ 5 inch BS w/ minor trimming

Product Highlights

Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
Fabtech Dirt Logic 2.5 CoilOvers
Fabtech Dirt Logic 2.5 Coilovers are a high end coilover that give exceptional performance in both on and off-road conditions. Featuring a 2.5 inch OD stainless steel body that resists corrosion while looking very cool! Cold wound coil springs, 7/8 inch black piston rod and 2.25 OD billet alumium piston round out the outstanding features.
Fabtech Dirt Logic 4.0 CoilOvers
Fabtech Dirt Logic 4.0 Coilovers are the ultimate high end coilovers that give amazing performance when off-roading or traveling the highway. Featuring a massive 4.0 inch OD stainless steel body that allows for additional fluid and dampening! Cold wound coil springs, 1 1/4 inch black piston rod and 3 5/8" OD billet alumium piston make these hard to match.
Important Notes1. Before ordering visually check your vehicle factory suspension for aluminum, steel cast or steel stamped control arms (see sample image above)
2. Will not fit models with Factory AutoRide shocks.
3. Will not fit all wheel drive models.
4. Cannot use OEM wheel and tire.
5. Does not fit standard cab.
Vehicle Fitment
MakeChevy
ModelSilverado 1500
Year Fitment2018, 2017, 2016, 2015, 2014
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerFabtech
Manufacturer Part NumberK1067DL / K1068DL / K1072DL / K1073DL
Item Numberfab_k1067dl-k1068dl
MPN(UPC)674866095786
Product LineLift Kits
Lift Height6 inch
