4" 2016-2021 Toyota Tundra 4wd & 2wd Dirt Logic Coilover Lift Kit by Fabtech

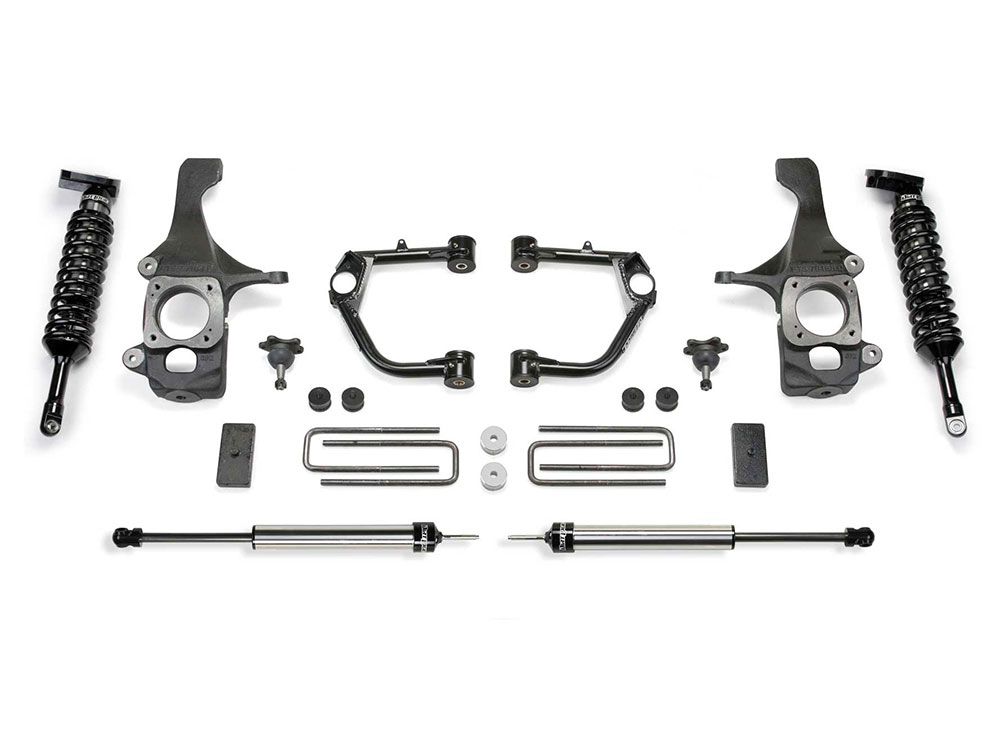

This Fabtech K7050DL / K7051DL / K7052DL / K7053DL 4 inch lift kit for the Toyota Tundra will allow for use of up to 35 inch tires to give your truck an awesome aggressive look while improving suspension performance.  Featuring the excellent performing Dirt Logic 2.5 Coilovers and 2.25 Shocks which give amazing ride quality and off-road performance to your truck. Also included is a combination of extended ductile steering knuckles and tubular upper control arms to keep proper suspension geometry.  The rear is lifted using axle blocks and extended ubolts.

Choose between heavy duty ball joints or ultra durable uni-ball joints for the upper control arms.

Top Features and Benefits

• Allows use of up to 35 inch diameter tires
• Dirt Logic 2.5 stainless steel body Coilovers for great ride quality and off-road performance
• Tubular upper control arms built from .120 inch wall DOM steel
• UCAs (upper control arms) choose from heavy duty ball joints or ultra durable uni-ball joints
• Ductile iron extended steering knuckles keep proper front end geometry
• Heavy duty front differential skid plate
• Rear Dirt Logic 2.25 shocks
• Limited Lifetime Warranty

Tire and Wheel Fitment:

• Use 35/12.50R18 tires w/ 18x9 wheels w/ 4-1/2 inch BS w/ minor trimming
• Use 295/70R18 tires w/ 18x9 wheels w/ 4-1/2 inch BS w/ minor trimming
• Use 35/12.5R20 tires w/ 20x9 wheels w/ 5 inch BS w/ minor trimming
