3" Tundra 2022-2023 Toyota 4WD (w/factory air suspension) Dirt Logic Coilover Uniball UCA Lift Kit by Fabtech Brand: Fabtech | SKU: K7090DL / K7091DL
$3587.31
- +
3587.31

3" Tundra 2022-2023 Toyota 4WD (w/factory air suspension) Dirt Logic Coilover Uniball UCA Lift Kit by Fabtech

Brand: Fabtech | SKU: K7090DL / K7091DL
From $3,587.31 Regular Price $3,985.90

3" Tundra 2022-2023 Toyota 4WD (w/factory air suspension) Dirt Logic Coilover Uniball UCA Lift Kit by Fabtech

Brand: Fabtech | SKU: K7090DL / K7091DL
From $3,587.31 Regular Price $3,985.90


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

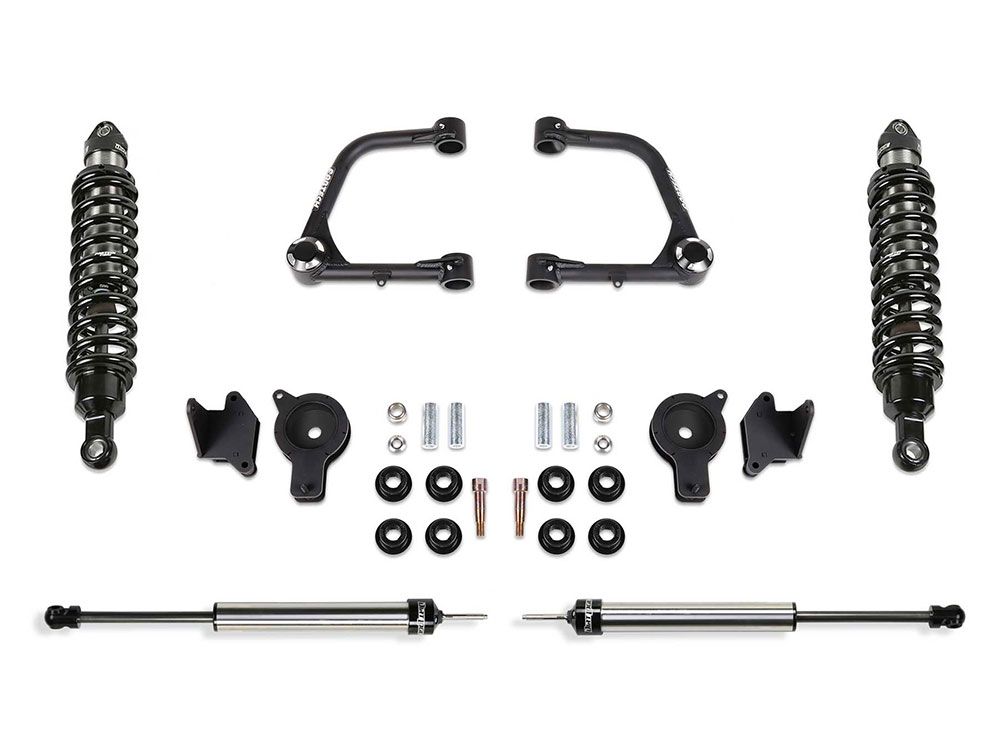

Fabtech's K7090DL / K7090DL 3" Uni-ball UCA (upper control arm) Lift Kit with Dirt Logic Coilovers for the Toyota Tundra provides a more aggressive appearance while allowing use of 33"-35" tires along with an awesome improvement in suspension performance! Factory Tundra upper control arms are replaced by Fabtech's Uniball Upper Control Arms which provide an extra degree of caster compared to the stock arms. Increased caster helps balance the steering paired with larger oversized tires. Fabtech upper control arms are constructed out of the finest materials around with .120" wall 1.25" OD 4130 Chromoly steel tubing. High quality FK Stainless PTFE lined uniball bearings are used in place of the small factory ball joints which allow for incrased suspension travel without bind. These tough upper control arms are designed for longevity and rough off-road terrains.

The Dirt Logic Coilovers included in this kit are constructed with a stainless steel body and a NitroSteel piston rod, providing maximum corrosion resistance. Chosse between the non-reservoir or reservoir Dirt Logic Coilovers. Rear lift is achieved by utilizing a spacer under the factory air bags, providing additional ride height. Rear shocks are replaced with Dirt Logic Performance Shocks, all great choices for great ride quality.

Features and Benefits:

  • Dirt Logic Coilovers provide amazing performance for ride quality and off-roading
  • Rear spacers lift the rear and maintain factory ride qualities
  • Arms eliminate upper ball joint w/ super strong 1 inch ID stainless American Uni-ball
  • Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments
  • Chromoly tubing reduces flex found in stock arms for more positive road feel
  • 4340 Heat treated Uni-ball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature
  • Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
  • Fits 33" to 35" tires
  • Fabtech offers a 5 year, 60,000 mile powertrain warranty

Product Highlights

Fabtech Dirt Logic 2.5 CoilOvers
Fabtech Dirt Logic 2.5 Coilovers are a high end coilover that give exceptional performance in both on and off-road conditions. Featuring a 2.5 inch OD stainless steel body that resists corrosion while looking very cool! Cold wound coil springs, 7/8 inch black piston rod and 2.25 OD billet alumium piston round out the outstanding features.
Fabtech Dirt Logic 2.5 Resi CoilOver
Upgrade to Fabtech Resi Dirt Logic 2.5 Coilovers to take the coilover to the next level with a remote reservoir for additional fluid capacity for even better performance in on and off-road conditions. Using a great looking 2.5 inch OD stainless steel body that resists corrosion these are an awesome suspension upgrade for any truck owner.
Uni-Ball Upper Control Arms
These included tubular upper control arms are designed maintain proper front geometry and allow for extended travel and no binding. Featuring 1 inch ID uniball joints that are super strong and durable.
Important Notes
  • Does NOT fit Hybrid models
  • Does NOT fit models equipped with adaptive variable suspension shocks
  • Fits CrewMax models ONLY
  • Vehicle Fitment
    MakeToyota
    ModelTundra
    Year Fitment2023, 2022
    2WD/4WD4WD
    Tech Specs
    ManufacturerFabtech
    Manufacturer Part NumberK7090DL / K7091DL
    Item Numberfab_k7090dl-k7091dl
    MPN(UPC)674866114128
    Product LineLift Kits
    Lift Height3 inch
