3" 2024-2026 Toyota Tacoma 4WD Uni-Ball Upper Control Arm Lift Kit (w/2.5 Dirt Logic Coilovers & Shocks) by Fabtech

The Fabtech K7103DL 3" Dirt Logic Uni-Ball Suspension Kit is engineered specifically for the 2024+ Toyota Tacoma, delivering a major increase in off-road capability while maintaining excellent on-road manners. Built around Fabtech’s legendary Uni-Ball upper control arms and Dirt Logic performance shocks, this system is designed for drivers who demand strength, durability, and tuned suspension performance.

The heavy-duty Uni-Ball upper control arms are constructed from 1.25" OD x .120" wall 4130 chromoly steel tubing, adding rigidity and strength to the front suspension while improving articulation. The Uni-Ball design allows for precise alignment correction, offering up to 1.0° of additional positive caster to enhance stability and steering feel on and off the trail.

Off-road performance is significantly enhanced with Dirt Logic 2.5 front coilovers and Dirt Logic 2.25 rear shocks, both extensively ride-tuned for the Tacoma platform. Developed from Fabtech’s desert racing experience, the Dirt Logic shocks provide excellent damping control, improved heat management, and consistent performance during aggressive off-road use.

Designed as a bolt-on system, the K7103DL installs cleanly with minimal downtime while retaining factory alignment specifications. This kit is an ideal upgrade for Tacoma owners looking to run larger tires while dramatically improving suspension strength and ride quality.

Features & Benefits

• 3" suspension system designed specifically for 2024+ Toyota Tacoma
• Heavy-duty Uni-Ball upper control arms for increased strength and articulation
• Upper control arms built from 1.25" OD x .120" wall 4130 chromoly steel tubing
• Maintains factory alignment with up to 1.0° additional positive caster
• Dirt Logic 2.5 front coilovers for exceptional off-road damping control
• Dirt Logic 2.25 rear shocks tuned for improved ride and stability
• Bolt-on installation for reduced install time

Front Dirt Logic 2.5 Coilover Features

• 2.5" OD stainless steel shock body
• 2.25" OD billet aluminum piston
• 7/8" NitroSteel® black piston rod
• Cold-wound coil springs
• Adjustable coilover construction
• 5/8" spherical ball mounting ends

Rear Dirt Logic 2.25 Shock Features

• 2.25" OD stainless steel shock body
• 2.0" OD billet aluminum piston
• 7/8" NitroSteel® black piston rod
• Polyurethane mounting ends

Tire & Wheel Fitment

• 33x12.50R18 tire on 18x9 wheel with 4.5" backspacing (minor trimming required)
• 33x12.50R20 tire on 20x9 wheel with 4.5" backspacing (minor trimming required)

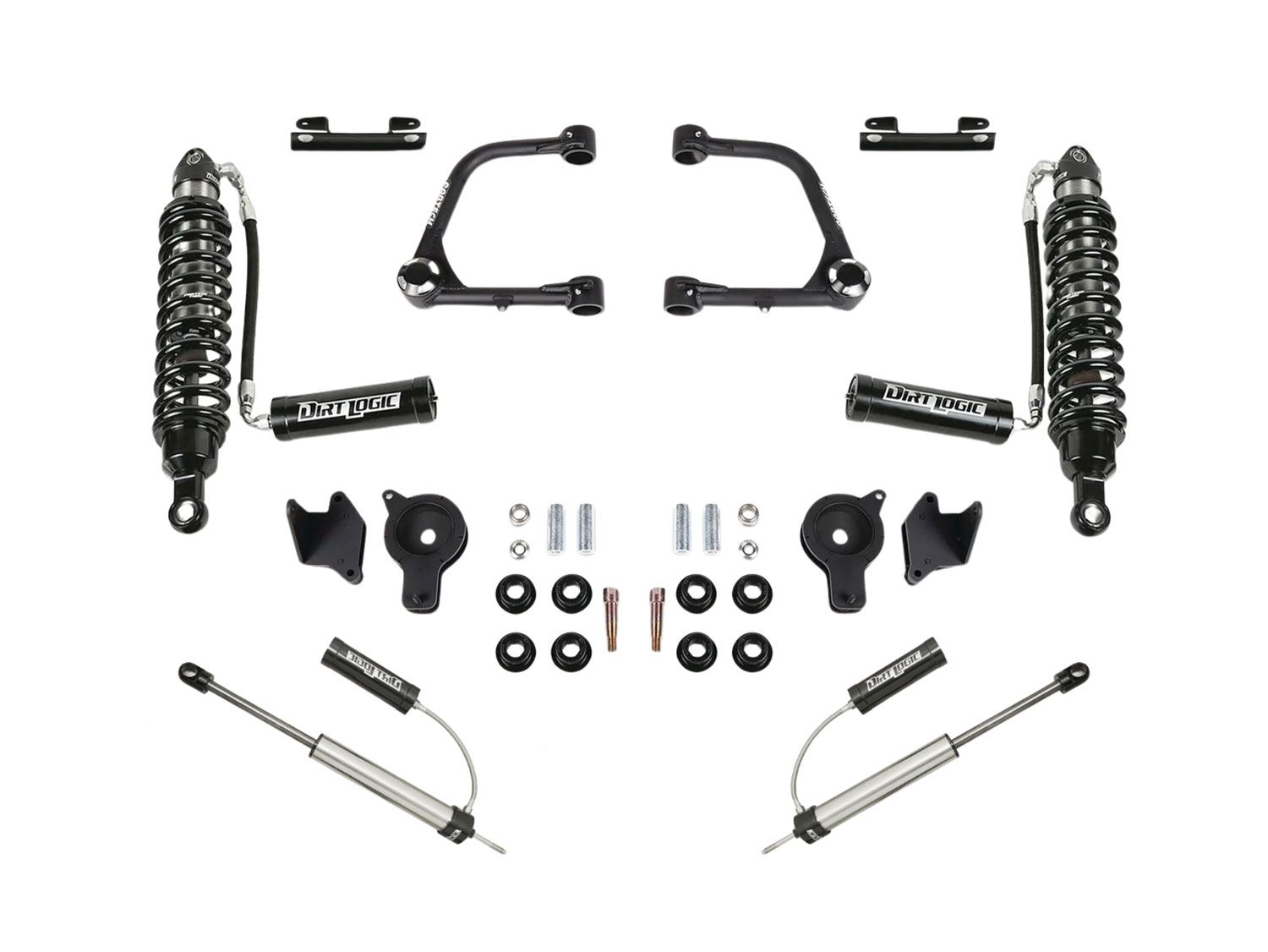

Kit Includes

• Uni-Ball Upper Control Arms
• Rear coil spacers
• Dirt Logic 2.5 front coilovers (pair)
• Dirt Logic 2.25 rear shocks (pair)
