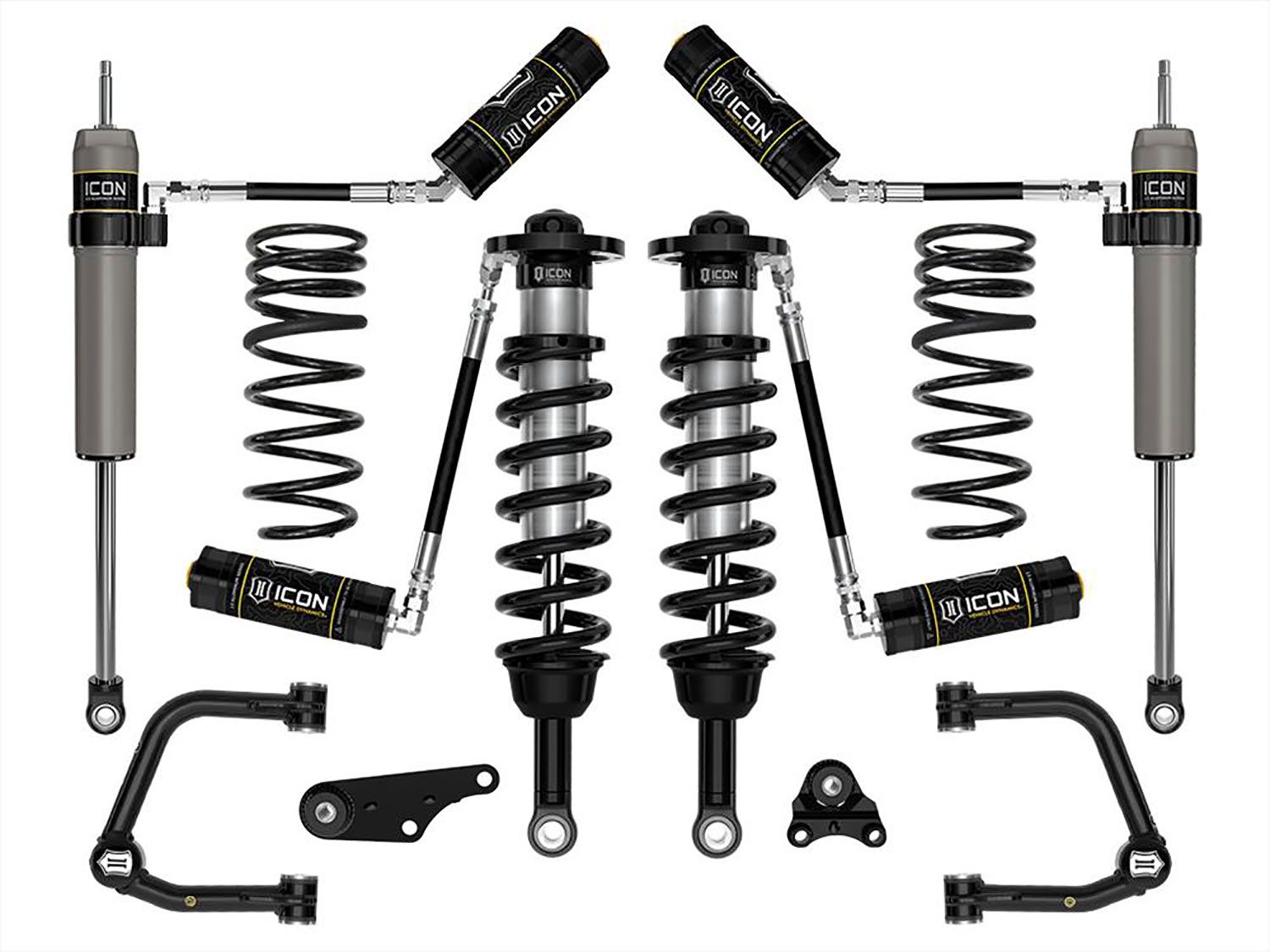

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 4

ICON Vehicle Dynamics presents the K53294TS for the 2024-2026 Toyota Tacoma suspension systems, meticulously crafted with the serious driver in mind, prioritizing maximum performance on and off the road. With a primary focus on increasing wheel travel and damping ability, ICON engineers ensure exceptional vehicle control and ride quality in any terrain.

ICON's Stage 4 system features vehicle-specific tuned 2.5 Series coil-over shocks equipped with remote reservoirs and ICON-engineered coil springs, delivering unparalleled "feel" throughout the entire range of travel. The remote reservoirs significantly boost shock oil volume and heat dissipation surface area, effectively combating overheating and cavitation, thus preventing damper fade. Moreover, with height adjustability ranging from 1.25 to 3 inches of front lift height over stock, these coil-overs easily accommodate more significant, more aggressive wheel and tire combinations. Incorporating front differential drop brackets and specially designed coilover lengths ensures maximum front suspension travel while preventing CV bind. Polyurethane differential mounting bushings also replace soft OE bushings, effectively limiting differential movement under load.

The ICON tubular upper control arm kit is meticulously designed to enhance the overall performance of the 2024 Toyota Tacoma, correcting front-end geometry, incorporating additional caster, and improving suspension component clearance. By replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO, unrestricted bump and droop travel of the front suspension are achieved while eliminating bind.

At the rear, triple-rate coil design delivers softer droop and ride rates with a firmer overload rate, ensuring unmatched on-road comfort, excellent bottoming resistance, and superior off-road performance. Paired with ICON 2.5 Aluminum Series remote reservoir rear shocks featuring integrated bump zones and vehicle-specific valving, the system ensures balanced performance from front to rear.

Features and Benefits:

• 2.5 Series front coilovers with remote reservoirs deliver superior damping, enhanced vehicle control, and improved shock cooling.
• Increased wheel travel and enhanced ride quality compared to stock suspension.
• Front differential drop ensures optimal CV joint operating angle and maximizes available wheel travel on 4WD models.
• Adjustable coilovers offer a lift height range of 1.25 to 3 inches over stock.
• Tubular Upper Control Arms (UCAs) provide added strength, durability, and alignment correction for improved drivability.
  UCAs feature the patented Delta Joint Pro (U.S. Pat. 10,731,700), which offers 90 degrees of total articulation.
• Triple-rate rear coil springs improve performance and ride quality while providing 0.5 inches of rear lift.
• Components crafted from 6061 aircraft-grade aluminum, CNC machined for precision.
• Corrosion-resistant CAD-plated coilover shock bodies equipped with 7/8 inch shafts.
• ICON-engineered front and rear coil springs ensure reliable performance.
• FK Rod End bearings offer extended longevity and minimal deflection.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8 inch shafts provide increased performance and a balanced tune when paired with coilovers.
