9" 1976 Ford F150 4WD Lift Kit by Jack-It Brand: Jack-It | SKU: FD160SD
$2308.7
- +
2308.7

9" 1976 Ford F150 4WD Lift Kit by Jack-It

Brand: Jack-It | SKU: FD160SD
From $2,308.70

9" 1976 Ford F150 4WD Lift Kit by Jack-It

Brand: Jack-It | SKU: FD160SD
From $2,308.70


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This 9-inch suspension lift kit for the Ford F150 4wd truck is a massive lift that will allow from larger diameter tires while upgrading critical suspension components. These kits were designed to give superior performance from highway handling and towing and excellent off-road stability. This is achieved using a combination of coil springs, radius arm drop brackets with C bushings, an adjustable drag link, lower tie rod assembly and an adjustable track bar. Coil springs are pre-settled to reduce height changes. C bushings and a radius arm drop bracket will correct the negative caster degree angle, which is one of the biggest problems with the F150. These are the most complete kits on the market.

Since 1994, Jack-it has specialized in lifted trucks and knows how important it is to get all the parts required to do the job right. Our custom packages only use top-quality components, and our kits feature extra parts not found in a standard lift kit.  This results in a more complete lift kit that, in most cases, installs easier and performs better.

An upgraded version of this lift kit is available that includes rear leaf springs (see below in related items).

Top Features and Benefits

  • Allows for larger diameter tires
  • Replaces worn suspension items that can improve handling
  • Top-quality components
  • Converts steering from Y-Style to T-Style (T-Style was standard on 78-79 models)
  • Complete kit (includes parts not found in most kits on the market)

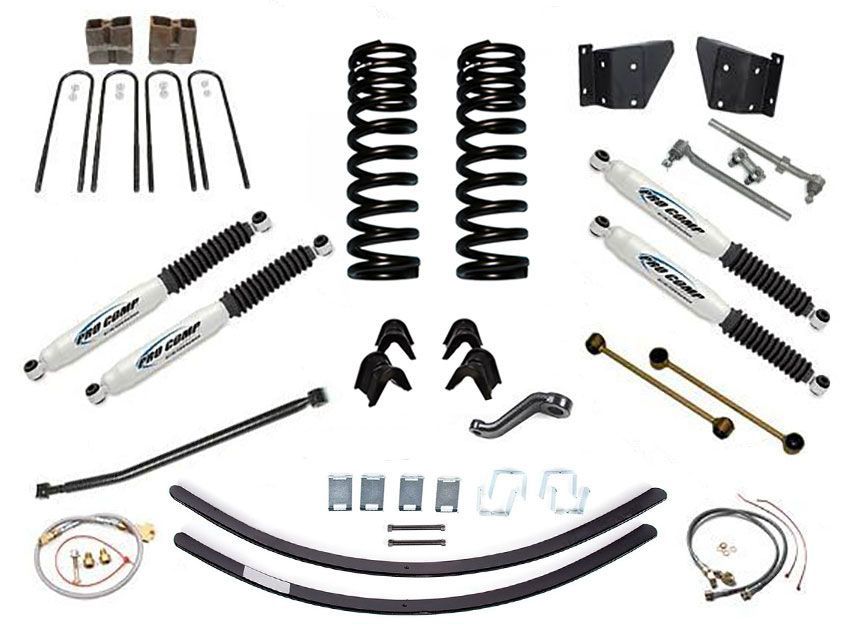

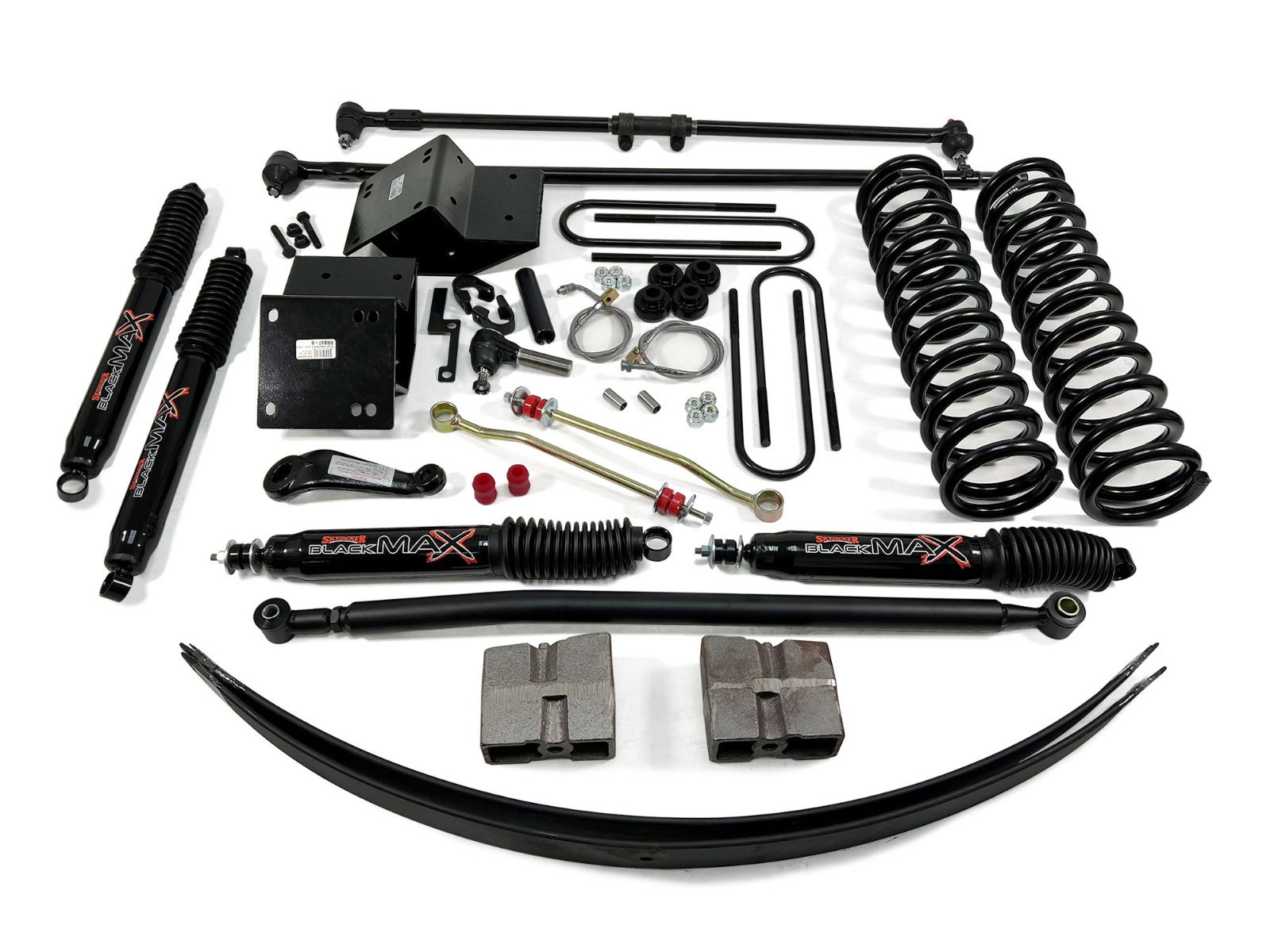

Kit Includes

  • Front Coil Springs (pair)
  • C-Bushings
  • Radius Arm Drop Brackets
  • Adjustable Front Track Bar
  • Adjustable Drag Link
  • Lower Tie Rod Assembly
  • Front and Rear Brake Lines
  • Extended Front Sway Bar End Links
  • Drop Pitman Arm
  • Rear Add-a-leafs
  • Rear Cast Iron Blocks
  • Extend U-Bolts
  • Front and Rear Shocks
Important NotesDrive Shaft will need to be lengthened. Sway bar bushings not included.
Vehicle Fitment
MakeFord
ModelF150
Year Fitment1976
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberFD160SD
Item NumberFD160SD
Product LineLift Kits
Lift Height9 inch
