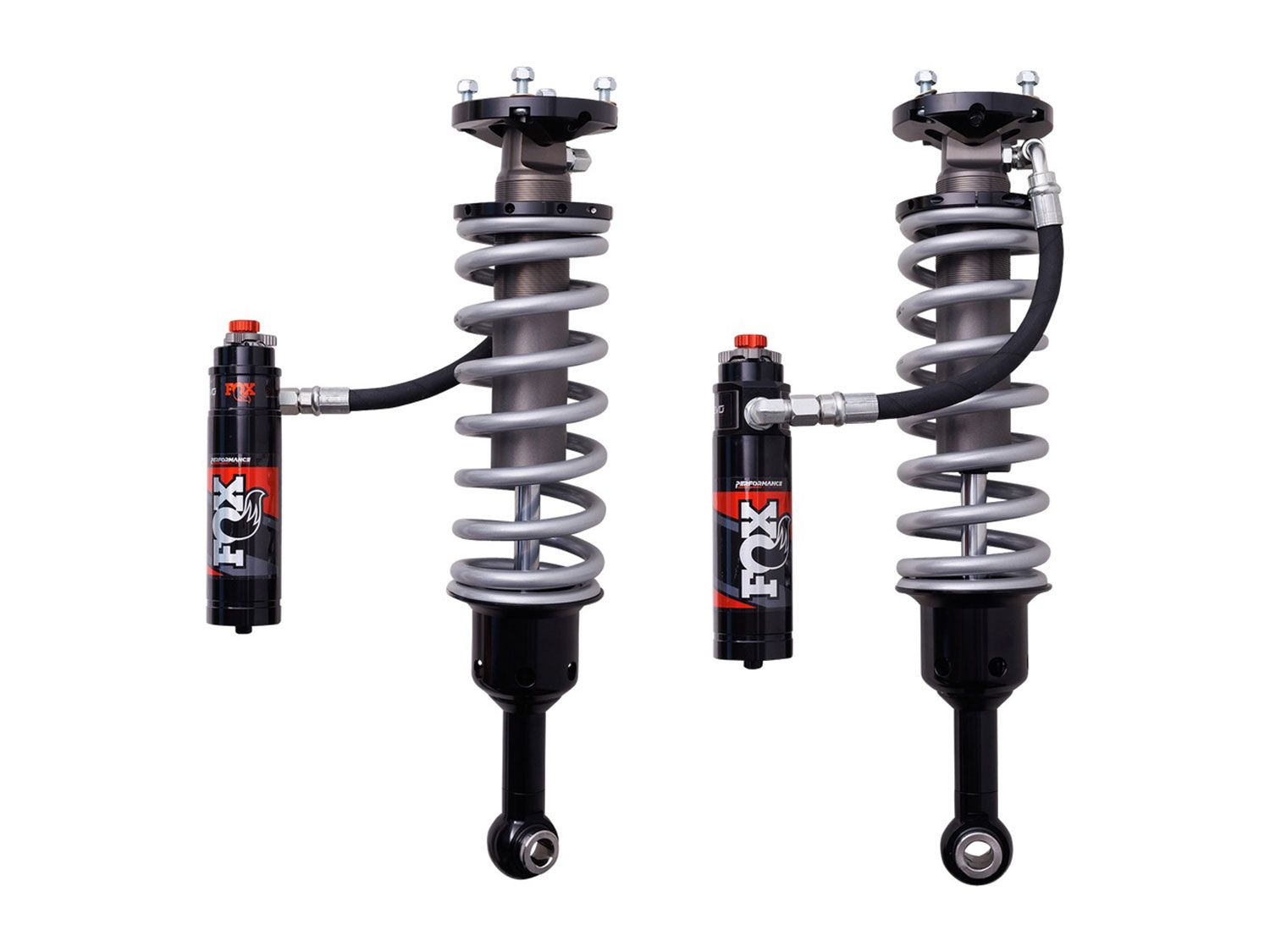

GX550 2024-2026 Lexus - Fox 2.5 Performance Elite Series Coil-Over Kit (1.5-3" Front Lift)

883-06-234 FOX Performance Elite Series 2.5 Front Coilover with DSC EVO is engineered to enhance suspension performance for Lexus GX550 platforms. Designed to eliminate factory-forward rake while improving articulation, this premium suspension upgrade delivers a level ride height and significantly increased off-road capability, while maintaining refined on-road comfort.

Built with a 2.5-inch impact-extruded and CNC-machined 6061-T6 aluminum body, the shock features a durable Type III hard-anodized coating that resists corrosion and wear in harsh environments. An external reservoir increases oil capacity and helps reduce heat buildup, minimizing harshness caused by nitrogen pressure ramp-up during demanding off-road driving.

The integrated Dual Speed Compression Evolution (DSC EVO) adjuster allows independent tuning of high-speed and low-speed compression damping. Using Variable Valve Control (VVC) technology, the high-speed circuit can be adjusted without adding preload to the shim stack, allowing drivers to increase resistance for large impacts without sacrificing small-bump sensitivity. With vehicle-specific tuning and robust construction, the 883-06-234 delivers versatile performance for both trail and daily driving conditions.

Features and Benefits:

• 883-06-234 FOX Performance Elite Series 2.5 Front Shock for Lexus GX550
• Provides 1.5 to 3 inches of front lift (adjustable height)
• 2.5" impact-extruded and CNC-machined 6061-T6 aluminum shock body
• Type III hard-anodized finish for maximum corrosion and wear resistance
• External reservoir increases oil capacity and improves heat management
• Dual Speed Compression Evolution (DSC EVO) adjuster for precise damping control
• Variable Valve Control (VVC) allows high-speed compression adjustment without sacrificing small-bump sensitivity
• Vehicle-specific tuning optimized for performance and ride quality
• 7/8" hard chrome steel shaft for increased strength and durability
• Redundant sealing pack with main seal, wiper seal, and scraper seal
• OEM top mount with eyelet bottom mount
• Travel: 6.74"
• Extended Length: 24.38"
• Compressed Length: 17.64"
• Series: Performance Elite
