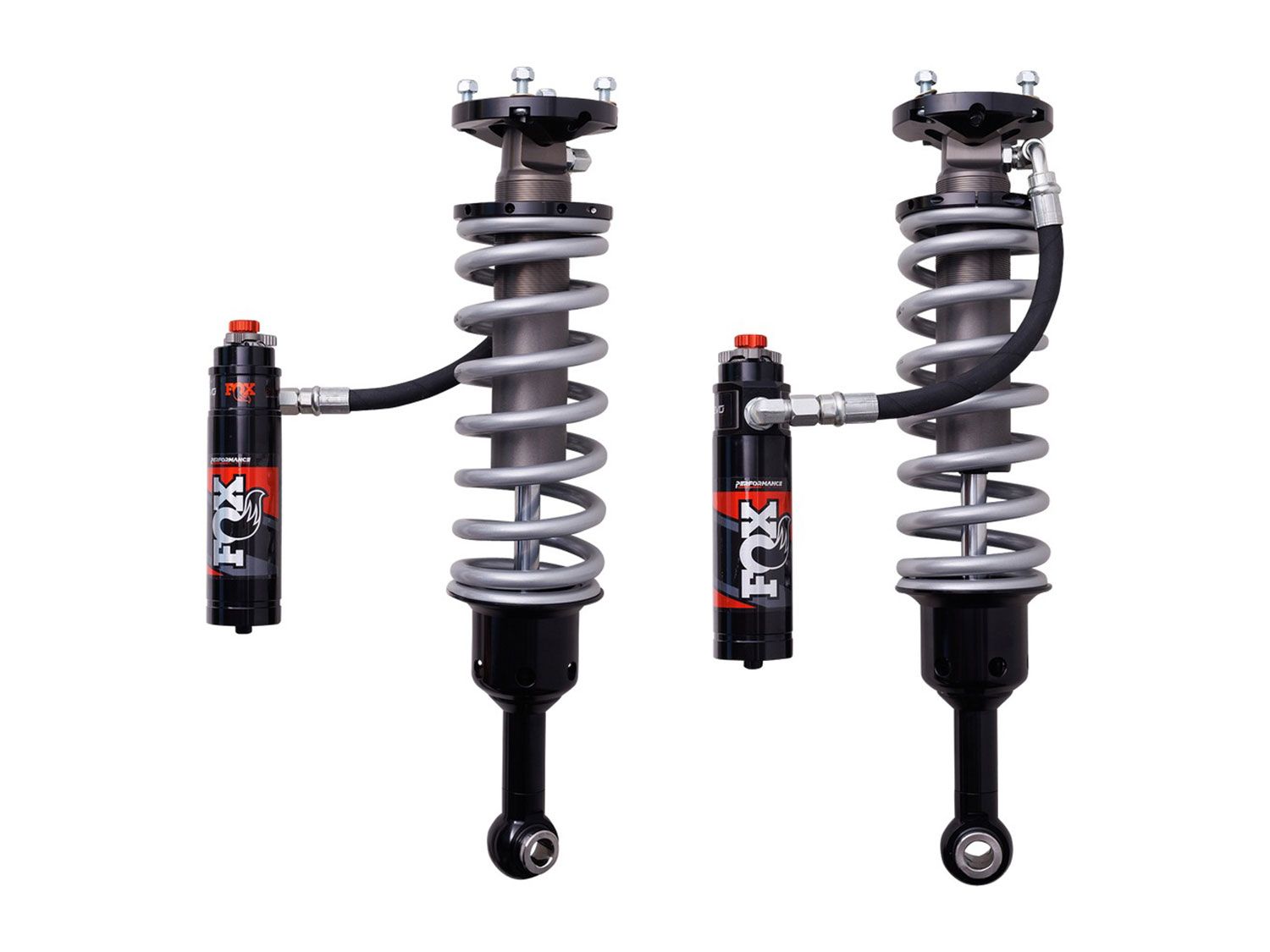

GX550 2024-2026 Lexus - Fox HD Tune 2.5 Performance Elite Series Coil-Over Kit (1.5-3" Front Lift)

883-06-248 FOX Performance Elite Series 2.5 Front Coilover with DSC EVO is engineered to improve suspension performance and ride quality for Lexus GX550 applications. Designed to eliminate the factory forward rake while increasing suspension articulation, this premium shock system delivers a level stance with enhanced off-road capability and refined on-road handling.

The shock features a 2.5-inch impact-extruded and CNC-machined 6061-T6 aluminum body finished with a durable Type III hard anodized coating to resist corrosion and wear. An external reservoir increases oil capacity for improved heat management and reduces harshness caused by nitrogen pressure ramp-up during aggressive off-road use.

Integrated Dual Speed Compression Evolution (DSC EVO) adjusters provide independent tuning of high-speed and low-speed compression damping. Variable Valve Control (VVC) technology allows high-speed damping adjustments without adding preload to the shim stack, enabling greater resistance for large impacts while maintaining excellent small-bump sensitivity. Vehicle-specific tuning and premium construction make the 883-06-248 a versatile suspension upgrade for both daily driving and demanding trail environments.

Features and Benefits:

• 883-06-248 FOX Performance Elite Series 2.5 Front Shock for Lexus GX550
• HD (heavy duty) Tune for front winch, heavy duty bumper, etc
• 2.5" impact-extruded and CNC-machined 6061-T6 aluminum shock body
• Type III hard-anodized finish for superior corrosion and wear resistance
• External reservoir increases oil capacity and improves heat dissipation
• Dual Speed Compression Evolution (DSC EVO) adjuster for precise damping control
• Variable Valve Control (VVC) improves high-speed damping without sacrificing small-bump sensitivity
• Vehicle-specific tuning optimized for performance and ride quality
• 7/8" hard chrome steel shaft for strength and durability
• Redundant sealing pack system with main seal, wiper seal, and scraper seal
• OEM top mount with eyelet bottom mount
• Travel: 6.74"
• Extended Length: 24.38"
• Compressed Length: 17.64"
• Series: Performance Elite
