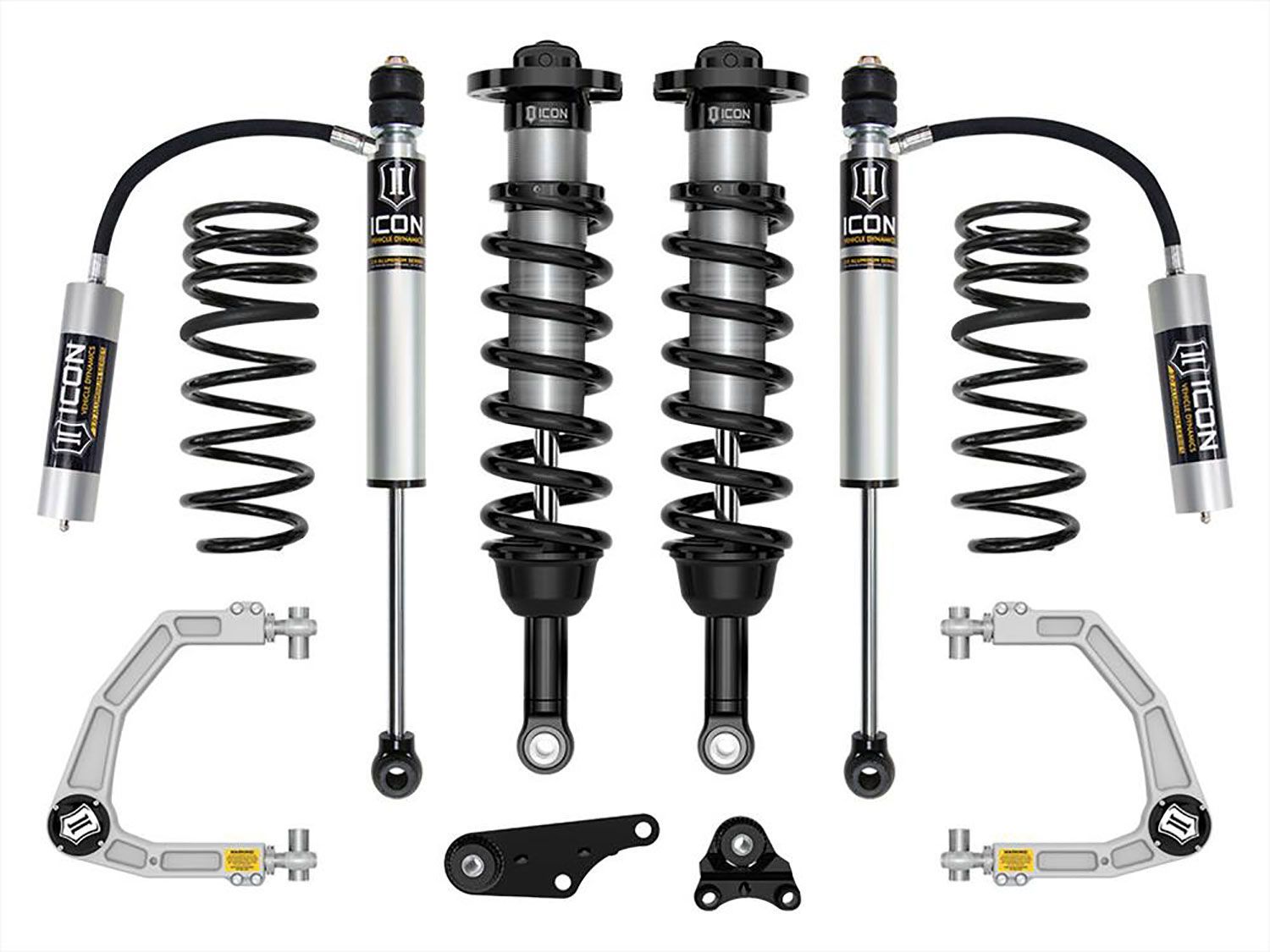

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit by ICON Vehicle Dynamics Brand: Icon Vehicle Dynamics | SKU: K53291 thru K53303
$1956.81
- +
1956.81

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit by ICON Vehicle Dynamics

Brand: Icon Vehicle Dynamics | SKU: K53291 thru K53303
From $1,956.81 Regular Price $2,059.80

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit by ICON Vehicle Dynamics

Brand: Icon Vehicle Dynamics | SKU: K53291 thru K53303
From $1,956.81 Regular Price $2,059.80

Coming Soon: We are taking pre-orders now!


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

ICON Vehicle Dynamics 2024 Toyota Tacoma suspension systems are designed for drivers seeking peak performance. Optimizing wheel travel and damping, they ensure unparalleled control and ride quality, whether navigating city streets or conquering rugged terrain. The systems are designed to provide from 1.25 to 3 inches of front lift height and 0 to .5 inches of rear lift height, allowing for larger diameter tires and additional ground clearance.

Icon 2.5 Coilovers

This kit has various options for Coilovers. Each Icon Coilover features a 2.5-inch diameter 6061 aircraft-grade aluminum body. Using Eibach coil springs, a 7/8 inch piston shaft, and FK rod end bearings. All with vehicle-specific (VS) valving. Adjustable from 1.25-3” of front lift height over stock, these coil-overs easily accommodate larger, more aggressive wheel and tire combinations. Below are the types of coilovers available for this kit:

Icon 2.5 VS IR Coilovers - Internal reservoir coilover. (included in Stage 1, Stage 2, Stage 3 kits)
Icon 2.5 VS RR Colivers - Remote reservoir coilover. (included in Stage 4, Stage 7 kits)
Icon 2.5 VS RR CDCV Coilovers - Adjustable ride (10 position dial), remote reservoir coilover. (included in Stage 5, Stage 8, Stage 11 kits)
Icon 2.5 VS RR CDEV Coilovers - Electronic valve control for extremely precise adjustment in varying terrain, adjustable with mobile app (included in Stage 6, Stage 10, Stage 13 kits)

Icon Rear Shocks

Choose the shocks that best fit your needs. These Icon shocks are monotube gas that uses an aluminum body in 2-inch and 2.5 diameters. All with VS (vehicle-specific valving) to give great on and off-road dampening. See all shock types below:

Icon 2.0 VS IR Shocks - Internal reservoir shock absorbers with 2-inch diameter body, 5/8-inch shaft. (included in Stage 1, Stage 2 kits)
Icon 2.0 VS RR Shocks - Remote reservoir shock absorbers with 2-inch diameter body, 5/8-inch shaft. (include in Stage 3 kits)
Icon 2.5 VS RR Shocks - Remote reservoir shock absorbers with 2.5-inch diameter body, 5/8-inch shaft. (included in Stage 4, Stage 7 kits)
Icon 2.5 VS RR CDCV Shocks - Adjustable ride (10 position dial), remote reservoir, with 2.5-inch diameter body, 7/8-inch shaft. (included in Stage 5, Stage 8, Stage 11 kits)
Icon 2.5 VS RR CDEV Shocks - Electronic valve control for extremely precise adjustment in varying terrain, adjustable with mobile app, with 2.5-inch diameter body, 7/8-inch shaft (included in Stage 6, Stage 10, Stage 13 kits)

Front Differential Drop Kit

Including front differential drop brackets prevents CV binding, ensuring smooth operation even under demanding conditions. Polyurethane differential mounting bushings replace factory bushings, minimizing differential movement under load for added stability. The differential drop kit is included in all kit stages.

Icon Upper Control Arms with Delta Joints (optional)

Icon's upper control arms are included in all but the Stage 1 kits; these are constructed from CNC-machined 6061 billet aluminum or tubular steel for exceptional strength. Featured are the amazing Delta Joints, which combine a ball joint's durability with a uni-ball's performance. They are ideal for increasing wheel travel when paired with Icon coilovers, translating into better suspension performance and ride quality. Engineered with built-in caster correction for optimal alignment specs, serviceable dual-stage poly bushings, and FK rod end 7/8-inch Heim joints for smooth operation, they are designed for optimal alignment.

Rear Triple-Rate Coil Springs  (optional)

In the rear, a triple-rate coil design provides a balanced blend of comfort and capability, offering softer droop and ride rates with a firmer overload rate for excellent bottoming resistance and off-road performance. These provide .5 inch rear lift.

Rear Links & Track Bar  (optional)

Tubular steel or billet aluminum rear upper and lower links feature dual-durometer greaseless bushings and massive FK rod ends, facilitating free articulation while dampening road noise and vibrations. The ICON Billet Adjustable Rear Track Bar re-centers the rear axle for improved stability. Lower links are included in Stage 7 and Stage 8 kits, while lower and upper links and the track bar are included only in the Stage 11 and Stage 13 kits.

Features and Benefits:

  • 2.5 Series front coilovers featuring internal or remote reservoirs ensure superior damping, precise vehicle control, and enhanced shock cooling.
  • Adjustable coilovers offer a front lift height range of 1.25-3 inches over stock, facilitating customization for various driving conditions.
  • Experience increased wheel travel and a smoother ride quality compared to stock suspension systems.
  • The front differential drop enhances the maximum operating angle for CV joints and optimizes wheel travel, which is particularly beneficial for 4WD models.
  • Billet Aluminum or Tubular Steel Upper Control Arms (UCAs) ensure added strength, durability, and on-vehicle caster/camber adjustment for optimal drivability. (not included in Stage 1 kits)
  • UCAs feature the patented Delta Joint Pro, boasting 90 degrees of total articulation for enhanced performance.
  • Triple-rate rear coil springs enhance performance and ride quality while providing a modest 0.5-inch rear lift. (included as options in some stages)
  • Shocks crafted from 6061 aircraft-grade aluminum, CNC machined components ensure durability and precision.
  • ICON-engineered front and rear coil springs optimize suspension performance for superior handling and comfort.
  • FK Rod End bearings provide extended longevity and minimal deflection, enhancing overall suspension performance.
  • Billet Aluminum or Tubular rear upper and lower links improve rear-end articulation, allowing on-vehicle pinion angle adjustment and ensuring optimal drivetrain alignment. (Lower links are included in Stage 7 and Stage 8 kits, while lower and upper links are included only in Stage 11 and Stage 13 kits)
  • The on-vehicle adjustable billet aluminum rear track bar effectively centers the rear axle while enhancing rear suspension performance. (included in Stage 11 and Stage 13 kits only)

Stage Quick Reference

ICON Vehicle Dynamics suspension systems are available in a variety of configurations or, as Icon calls them, "stages" (Stage 1, Stage 2, etc). The higher the stage, the more premium the components. Below is a quick reference guide showing each Stage's included components.

  • Stage 1 - 2.5 IR Coilovers, 2.0 IR Rear Shocks, Diff Drop Kit
  • Stage 2 - 2.5 IR Coilovers, 2.0 IR Rear Shocks, Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option
  • Stage 3 - 2.5 IR Coilovers, 2.0 Resi Rear Shocks, Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option
  • Stage 4 - 2.5 Resi Coilovers, 2.5 Resi Rear Shocks, Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option
  • Stage 5 - 2.5 Resi CDCV Coilovers (adjustable dampening), 2.5 Resi CDCV Rear Shocks (adjustable dampening), Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option
  • Stage 6 - 2.5 Resi CDEV Coilovers (electronic dampening), 2.5 Resi CDEV Rear Shocks (electronic dampening), Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option
  • Stage 7 - 2.5 Resi Coilovers, 2.5 Resi Rear Shocks, Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option, Lower Rear Links (Billet or Tubular)
  • Stage 8 - 2.5 Resi CDCV Coilovers (adjustable dampening), 2.5 Resi CDCV Rear Shocks (adjustable dampening), Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option, Lower Rear Links (Billet or Tubular)
  • Stage 10 - 2.5 Resi CDEV Coilovers (electronic dampening), 2.5 Resi CDEV Rear Shocks (electronic dampening), Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs Option, Lower Rear Links (Billet or Tubular)
  • Stage 11 - 2.5 Resi CDCV Coilovers (adjustable dampening), 2.5 Resi CDCV Rear Shocks (adjustable dampening), Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs, Upper & Lower Rear Links (Billet or Tubular), Rear Billet Adjustable Track Bar
  • Stage 13 - 2.5 Resi CDEV Coilovers (electronic dampening), 2.5 Resi CDEV Rear Shocks (electronic dampening), Diff Drop Kit, Upper Control Arms (Billet or Tubular), Rear .5" Lift Coil Springs, Upper & Lower Rear Links (Billet or Tubular), Rear Billet Adjustable Track Bar
Important Notes1. OEM Wheels & Tires Fitment: Yes
2. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
3. Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00" Backspace / 25mm Offset
4. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit, but fender trimming and modifications will be required.)
5. APPLICATION NOTE #55: Shocks are fully serviceable. The lift heights indicated are for a stock-equipped vehicle.
6. APPLICATION NOTE #85: Advertised lift height ranges are for a stock-equipped vehicle. Increasing the vehicle's weight due to accessories will alter the lift range.
7. TECH NOTE: An iOS-operated device is required to run the ICON Intelligent Control App
9. TECH NOTE: This kit is configured for fitment on 4WD models. If installed onto a 2WD 2024 Toyota Tacoma SR, SR5, or TRD Sport, front differential drop kit part # 55160 is not needed, and the other suspension system components can be ordered individually with full system functionality. 2WD-specific kits are coming soon!
10. TECH NOTE: Will not fit 2024 Toyota Tacoma TRD PreRunner or 2024 Toyota Tacoma Limited AWD
11. Does not fit models with rear leaf springs.
Vehicle Fitment
MakeToyota
ModelTacoma
Year Fitment2024
2WD/4WD4WD
Tech Specs
ManufacturerIcon Vehicle Dynamics
Manufacturer Part NumberK53291 thru K53303
Item Numberico_k53291-k53303
MPN(UPC)00840103429014
Product LineLift Kits
Lift Height3 inch
