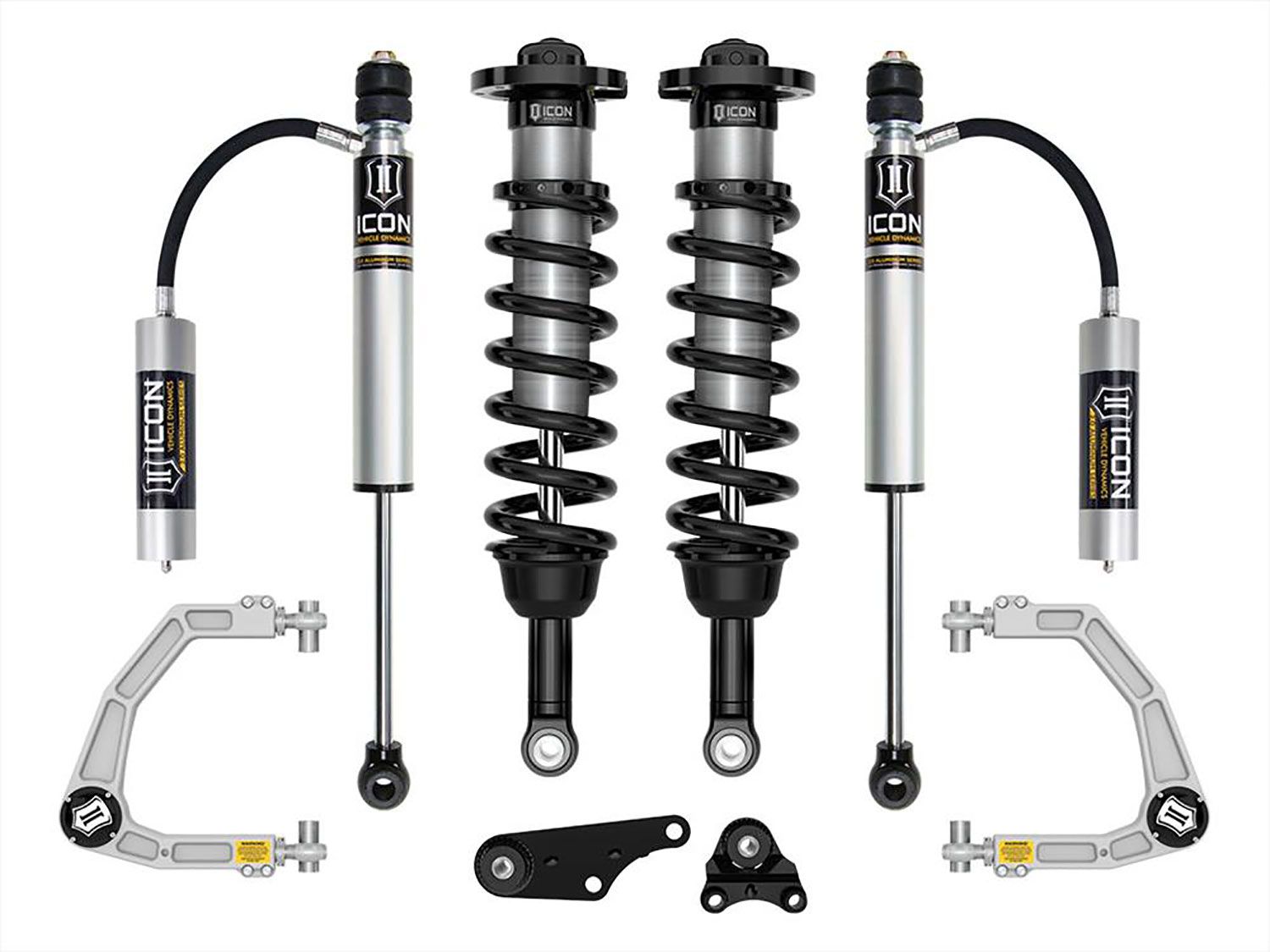

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms) by ICON Vehicle Dynamics - Stage 3

The ICON Vehicle Dynamics 2024 Toyota Tacoma suspension systems are engineered for maximum performance, catering to serious drivers who demand top-tier quality. These systems enhance wheel travel and damping ability and ensure exceptional vehicle control and ride quality on and off the road.

The Stage 3 system features vehicle-specific tuned 2.5 Series coil-over shocks with internal reservoirs, offering exceptional cooling properties for prolonged performance. Paired with ICON-engineered coil springs, these coil-overs provide a superior vehicle "feel" throughout the range of travel. Adjustable from 1.25 to 3 inches of front lift height over stock, they accommodate larger, more aggressive wheel and tire combinations. Front differential drop brackets and specifically designed coilover lengths maximize available front suspension travel while preventing CV bind. Polyurethane differential mounting bushings replace OE bushings to limit differential movement under load.

The ICON billet aluminum upper control arm kit is included in the system, designed to enhance overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. The all-new, serviceable, and rebuildable ICON Delta Joint PRO replaces the OE ball joint, enabling full bump and droop travel of the front suspension while eliminating bind.

For the rear, ICON 2.0 Aluminum Series remote reservoir shocks provide improved cooling ability and utilize vehicle-specific valving to balance truck performance from front to rear.

Features and Benefits:

• Vehicle-specific tuned front and rear shocks ensure superior shock damping and control.
• Enhanced wheel travel and improved ride quality compared to stock.
• Front differential drop maximizes available wheel travel on 4WD models and enhances CV joint operating angle.
• Adjustable coilovers offer a lift height range of 1.25-3" over stock.
• Billet aluminum Upper Control Arms (UCAs) provide added strength, durability, and on-vehicle caster/camber adjustment for optimal drivability.
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation.
• Components crafted from 6061 aircraft-grade aluminum, CNC machined for precision.
• Corrosion-resistant CAD-plated coilover shock bodies equipped with 7/8" shafts.
• ICON-engineered coil springs ensure reliable performance.
• FK Rod End bearings offer extended longevity and minimal deflection.
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts.
