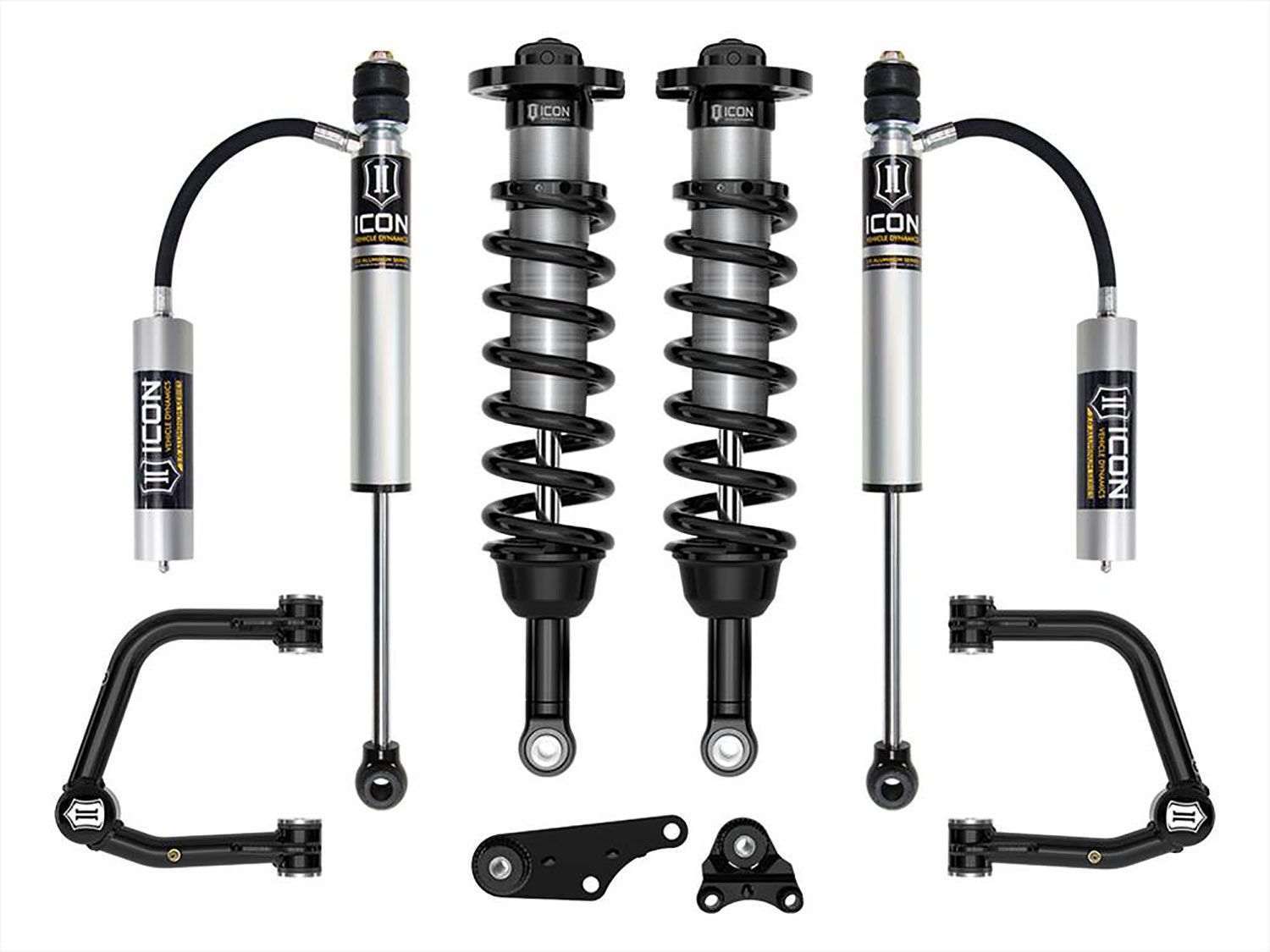

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms) by ICON Vehicle Dynamics - Stage 3

ICON Vehicle Dynamics presents K53293T for the 2024-2025 Toyota Tacoma suspension systems for ultimate performance and the discerning driver. With a keen focus on enhancing wheel travel and damping ability, ICON's engineers have engineered a Stage 3 system that promises unparalleled vehicle control and ride quality, whether you're navigating city streets or conquering rugged terrain.

This advanced system features vehicle-specific tuned 2.5 Series coil-over shocks with internal reservoirs, ensuring exceptional cooling properties. Paired with ICON-engineered coil springs, these components provide a sublime vehicle "feel" across the entire range of travel. Boasting a height adjustment range of 1.25 to 3 inches of front lift over stock, their coil-overs enable the fitment of larger, more aggressive wheel and tire combinations. ICON's innovative front differential drop brackets and specially designed coil-over lengths work harmoniously to optimize front suspension travel while eliminating CV bind. Polyurethane differential mounting bushings also replace soft OE bushings, curbing differential movement under load for enhanced stability.

The ICON tubular upper control arm kit is meticulously designed to enhance overall performance, boasting corrected front-end geometry, increased caster, and improved suspension component clearance. Upgrade your Tacoma's front suspension with the all-new ICON Delta Joint PRO, replacing OE ball joints for full bump and droop travel while eradicating binding.

Meanwhile, ICON 2.0 Aluminum Series remote reservoir rear shocks offer superior cooling ability and vehicle-specific valving to ensure balanced performance from front to rear.

Features and Benefits:

• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides a better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coil-overs provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft-grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON-engineered coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
