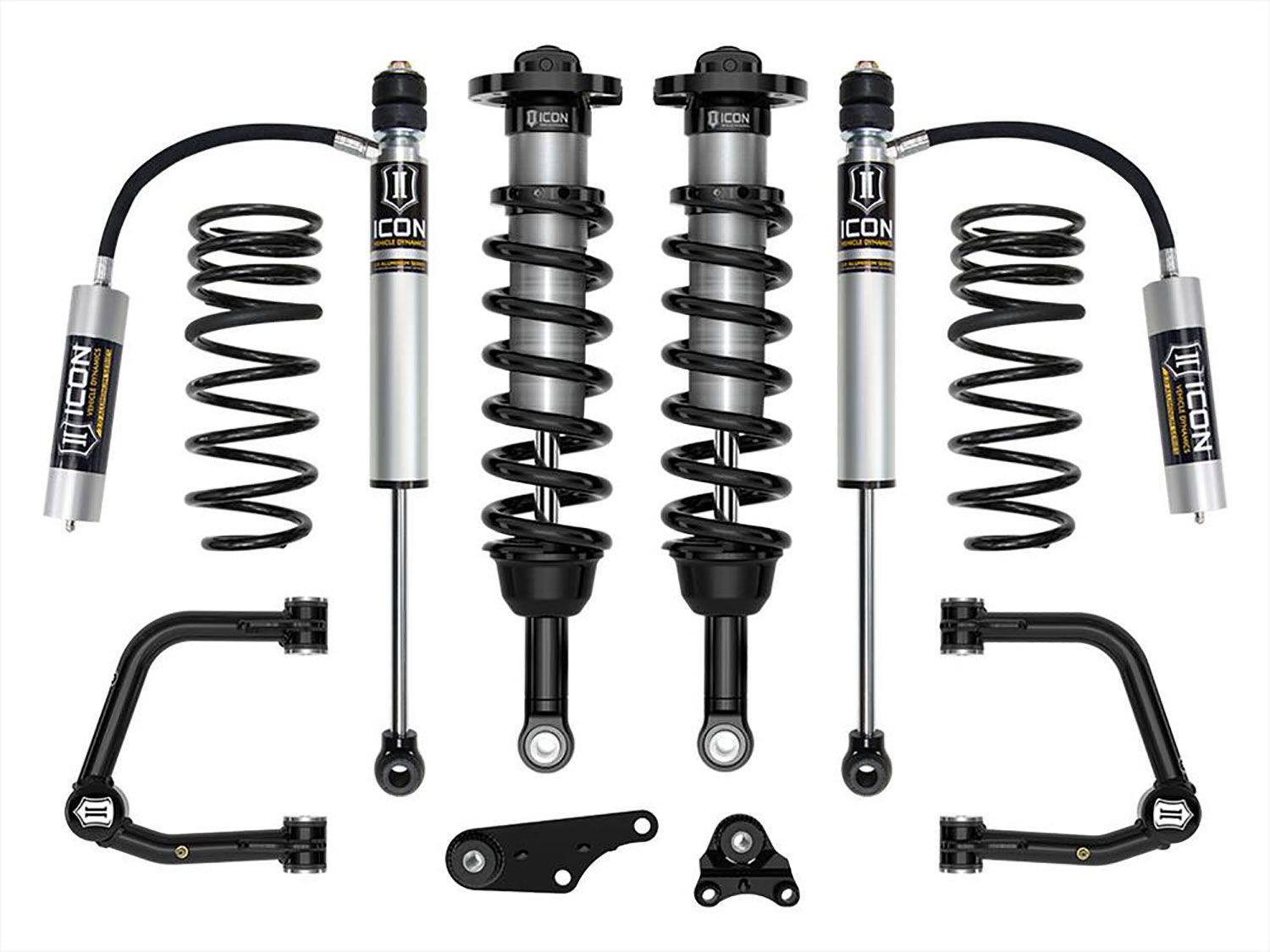

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 3

ICON Vehicle Dynamics presents K53293TS for the 2024 Toyota Tacoma suspension system designed for the driver seeking peak performance. Designed to optimize wheel travel and damping, this Stage 3 setup ensures unparalleled control and ride quality, whether navigating city streets or conquering rugged terrain.

At the heart of this system are the vehicle-specific tuned 2.5 Series coilover shocks, featuring internal reservoirs for superior cooling performance. Paired with ICON-engineered coil springs, these components deliver a responsive and precise "feel" throughout the entire range of travel. With height adjustability ranging from 1.25 to 3 inches of lift over stock, you can accommodate larger, more aggressive wheel and tire combinations for enhanced aesthetics and capability. The inclusion of front differential drop brackets and meticulously engineered coilover lengths maximizes front suspension travel while preventing CV bind, ensuring smooth operation even under demanding conditions. Polyurethane differential mounting bushings replace factory bushings, minimizing differential movement under load for added stability.

To further optimize performance, the ICON tubular upper control arm kit corrects front-end geometry, increases caster, and improves suspension component clearance. The innovative ICON Delta Joint PRO replaces the OE ball joint, allowing for full bump and droop travel while eliminating binding.

In the rear, a triple-rate coil design provides a balanced blend of comfort and capability, offering softer droop and ride rates with a firmer overload rate for excellent bottoming resistance and off-road performance.

ICON 2.0 Aluminum Series remote reservoir rear shocks enhance cooling efficiency and feature vehicle-specific valving to ensure balanced performance from front to rear.

Features and Benefits:

• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides a better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coil-overs provide 1.25-3" front lift height over stock
• Triple-rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft-grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON-engineered coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
