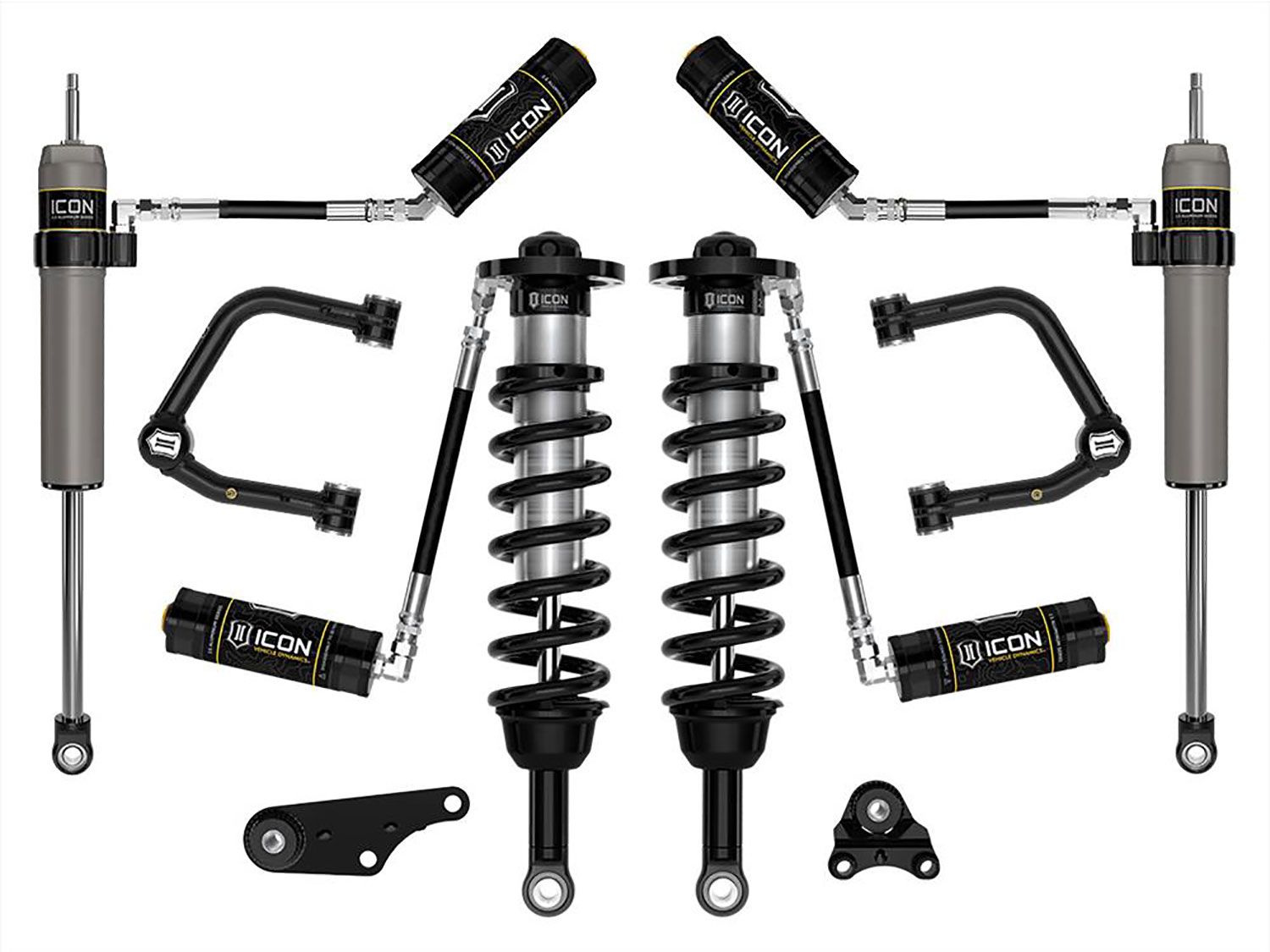

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms) by ICON Vehicle Dynamics - Stage 4

The K53294T suspension systems by ICON Vehicle Dynamics for the Toyota Tacoma are meticulously crafted to meet the demands of serious drivers seeking maximum performance. Engineered to elevate wheel travel and damping ability, these systems ensure unparalleled vehicle control and ride quality, whether traversing on-road or off-road terrain.

Our Stage 4 system features meticulously tuned 2.5 Series coil-over shocks, complete with remote reservoirs and ICON-engineered coil springs, delivering superior vehicle "feel" across the entire range of travel. Remote reservoirs significantly enhance shock oil volume and heat dissipation surface area, effectively resisting overheating and cavitation under rigorous use, thus mitigating damper fade. Moreover, with height adjustability ranging from 1.25 to 3 inches of front lift height over stock, these coil-overs easily accommodate larger, more aggressive wheel and tire combinations. Integrating front differential drop brackets and ICON's specially designed coilover lengths ensures maximum front suspension travel while preventing CV bind. Furthermore, polyurethane differential mounting bushings replace soft OE bushings, limiting differential movement under load.

The system includes the ICON tubular upper control arm kit, meticulously designed to enhance the overall performance of the 2024 Toyota Tacoma. With corrected front-end geometry, built-in additional caster, and improved suspension component clearance, this kit ensures optimal performance. By replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO, unrestricted bump and droop travel of the front suspension are achieved while eliminating bind.

At the rear, ICON 2.5 Aluminum Series remote reservoir shocks, equipped with integrated bump zones and 7/8 inch shafts and vehicle-specific valving, deliver improved shock damping ability, ensuring balanced performance from front to rear.

Features and Benefits:

• 2.5 Series front coil-overs equipped with remote reservoirs for superior damping, enhanced vehicle control, and improved shock cooling.
• Increased wheel travel and enhanced ride quality compared to stock suspension.
• Front differential drop ensures optimal CV joint operating angle and maximizes available wheel travel on 4WD models.
• Adjustable coilovers offer a lift height range of 1.25 to 3 inches over stock.
• Tubular Upper Control Arms (UCAs) provide added strength, durability, and alignment correction for improved drivability.
• UCAs feature the patented Delta Joint Pro, which offers 90 degrees of total articulation.
• Components crafted from 6061 aircraft-grade aluminum, CNC machined for precision.
• Corrosion-resistant CAD-plated coilover shock bodies equipped with 7/8 inch shafts.
• ICON-engineered coil springs ensure reliable performance.
• FK Rod End bearings offer extended longevity and minimal deflection.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8 inch shafts deliver increased performance and balanced tuning when paired with coilovers.
