3" 2024-2026 Toyota Tacoma SST Lift Kit (w/Falcon Shocks) by ReadyLift

ReadyLIFT's 69-54320 SST (Smart Suspension Technology) 3-inch Lift Kit is a great suspension upgrade that will lift the front of your Toyota Tacoma 3 inches and the rear 2 inches for a level ride. It's ideal for those seeking a taller stance while accommodating larger tires, up to 35 inches.

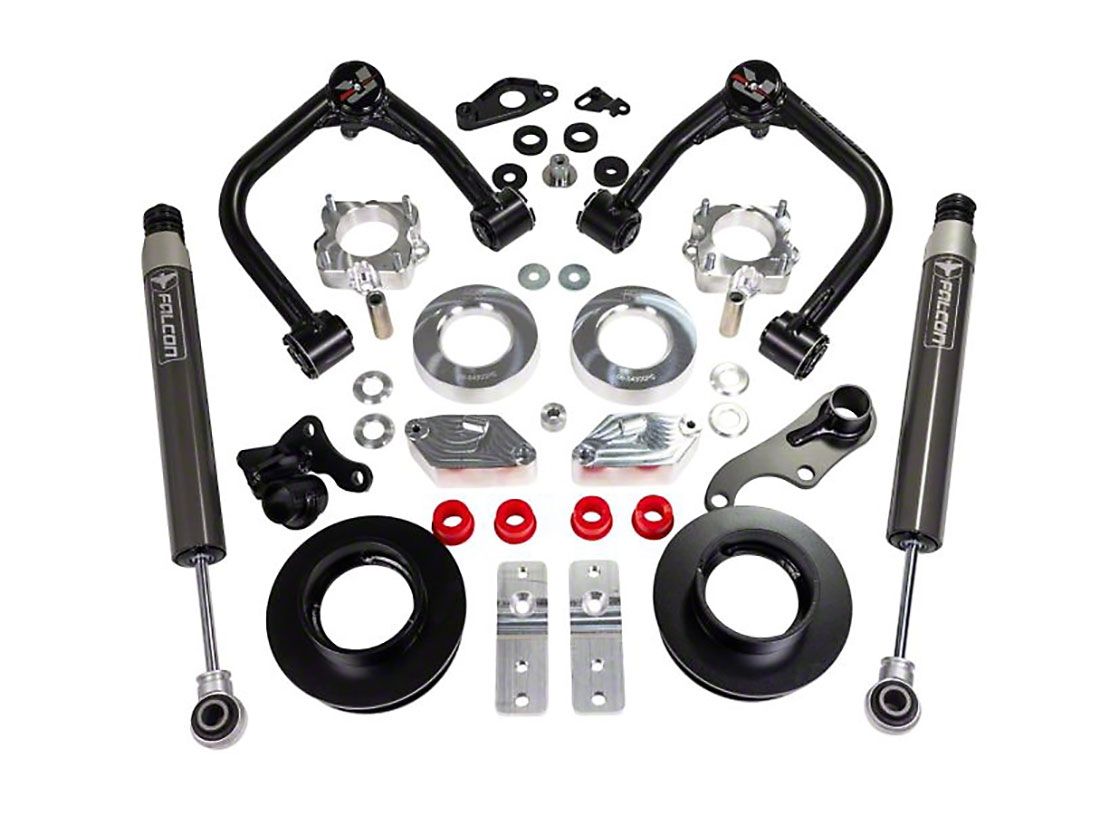

This lift kit includes billet aluminum strut spacers that mount above the factory strut/coil assembly, along with billet aluminum preload spacers used to provide 3 inches of lift. The preload spacers are mounted between the top of the coil springs and the strut top hat. In the rear, fabricated steel coil spring spacers mount above the factory spring isolators to provide 2 inches of rear lift. (download PDF file below for complete instructions)

Heavy-duty tubular steel upper control arms are included to maintain suspension travel. These arms feature heavy-duty high-angle ball joints to keep the arm from binding while the suspension articulates. They use Terrain Control Technology pivot bushings, which are maintenance-free and self-lubricating.

The included differential drop spacers and brackets lower the front differential, helping prevent the CV joints from binding on lifted models.

Included in the rear are extended-length Falcon 1.1 Monotube Gas Shocks. These dampers are a significant upgrade over factory shocks. Providing improved off-road capacities and great on-road ride comfort.

Features and Benefits:

• Billet aluminum strut spacers and pre-load spacers for 3-inches of front lift
• Bolt-on installation, no permanent modifications required
• 2-inch rear coil spring spacers made of fabricated steel
• It gives the vehicle additional clearance for larger diameter tires and a more aggressive look
• Heavy duty tubular steel upper control arms feature high-angle ball joints to maintain suspension travel without binding
• UCA Arms have TTC (Terrain Control Technology) maintenance-free self-lubricating pivot bushings
• Differential drop kit keeps CV joints from binding
• Extended-length Falcon 1.1 Monotube Gas Rear Shocks included for excellent off-road and on-road performance
• Made in the USA
• Max tire diameter with no trimming 285/70
• Estimated install time: 5 Hours +/- .5 hours

Tire & Wheel Fitment List

• Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)
• 17x8 +35  285/70R17  No Trim
• 17x8 +35  285/75R17  No Trim
• 17x8.5 +47  285/70R17  No Trim
• 17x8.5 +47  285/75R17  No Trim
• 17x8.5 +25  285/70R17  No Trim
• 17x9 +1  285/70R17  May require trimming. (4mm clearance)
• 18x8 +35 285/65R18 No Trim
• 18x8 +35 285/70R18 No Trim
• 18x8.5 +47 285/65R18 No Trim
• 18x8.5 +47 285/70R18 No Trim
• 18x8.5 +25 285/65R18 No Trim
• 18x9 +1 285/65R18 May require trimming. (4mm clearance)
• 20x8.5 +35  295/55R20  No Trim</li
• 20x9 +18  295/55R20  No Trim
• 20x9 +1   295/55R20  May require trimming. (4mm clearance)
