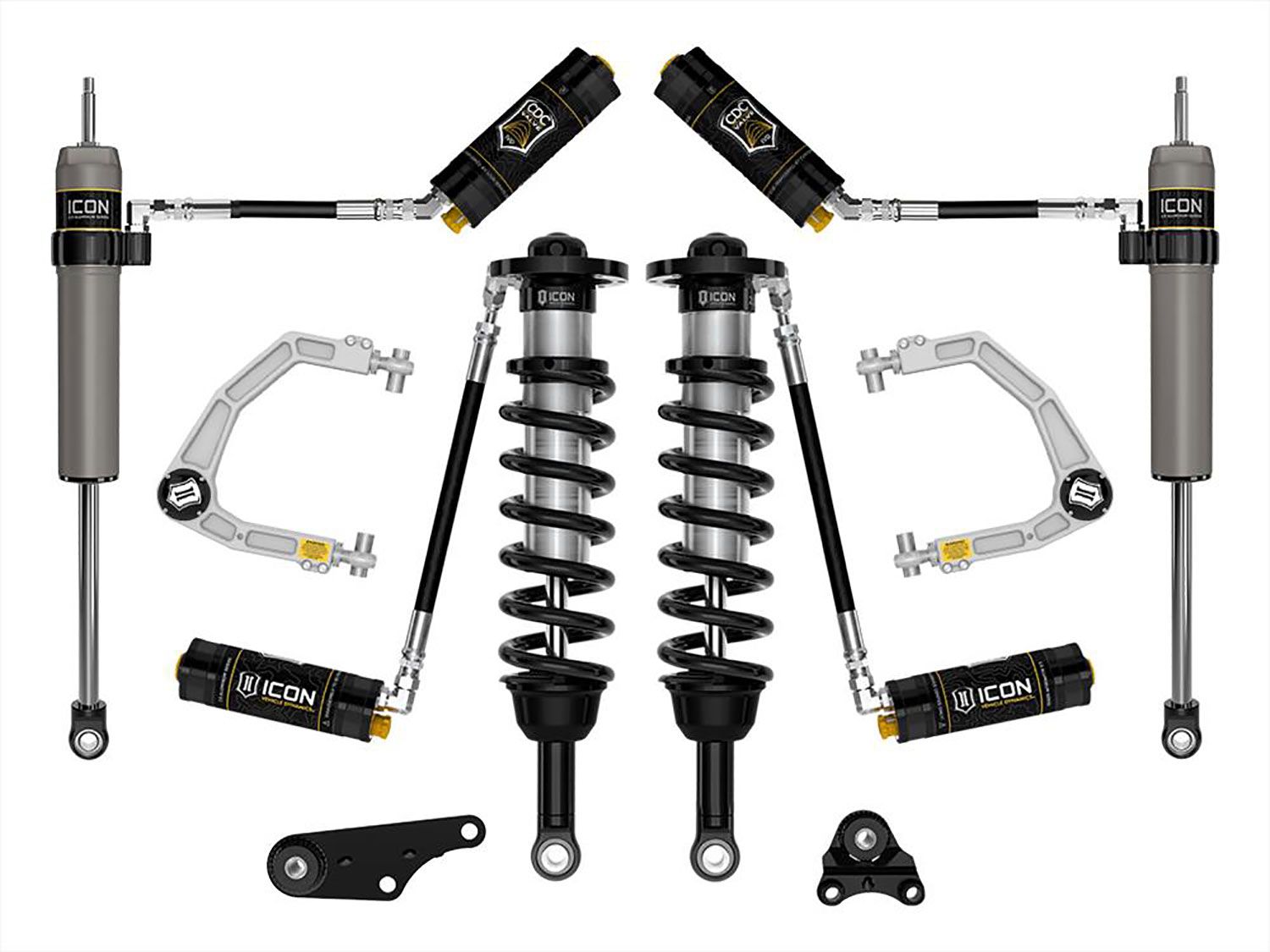

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms) by ICON Vehicle Dynamics - Stage 5

The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma K53295 suspension systems are engineered for maximum performance, catering to the needs of serious drivers. With a primary focus on enhancing wheel travel and damping ability, ICON engineers have crafted a suspension system that ensures exceptional vehicle control and ride quality, both on-road and off-road.

ICON's Stage 5 system features meticulously tuned 2.5 Series coil-over shocks equipped with CDCV (Compression Damping Control Valve) enabled remote reservoirs and ICON-engineered coil springs. These remote reservoirs significantly increase shock oil volume and heat dissipation surface area, effectively resisting overheating and cavitation, thus mitigating damper fade. The included ICON CDC Valves offer 10 levels of compression-damping force ranges, providing precise control over the suspension dynamics. Additionally, the coil-overs are height adjustable, offering a lift height range of 1.25 to 3 inches over stock, allowing for larger, more aggressive wheel and tire combinations. Integrating front differential drop brackets and specially designed coilover lengths maximizes front suspension travel while preventing CV bind. Furthermore, polyurethane differential mounting bushings replace soft OE bushings, limiting differential movement under load.

The included ICON billet aluminum upper control arm kit is meticulously designed to enhance overall performance. It corrects front-end geometry, increases on-vehicle camber and caster adjustment, and improves suspension component clearance. By replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO, the front suspension achieves unrestricted bump and droop travel while eliminating bind.

At the rear, ICON 2.5 Aluminum Series CDCV remote reservoir shocks with integrated bump zones provide improved shock damping ability, with vehicle-specific valving that balances performance from front to rear.

Features and Benefits:

• 2.5 Series front coilovers with remote reservoirs offer superior damping, enhanced vehicle control, and improved shock cooling.
• Enjoy increased wheel travel and enhanced ride quality compared to stock suspension.
• Front differential drop ensures optimal operating angle for CV joints and maximizes available wheel travel on 4WD models.
• Adjustable coil-overs provide a lift height range of 1.25 to 3 inches over stock.
• Billet aluminum Upper Control Arms (UCAs) enhance strength, durability, and offer on-vehicle caster/camber adjustment for optimal drivability.
• UCAs boast the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• All shock absorbers are equipped with CDC Valves for 10 settings of compression damping adjustment, ranging from soft to hard.
• Components are crafted from 6061 aircraft-grade aluminum, CNC machined for precision.
• Corrosion-resistant CAD plated coilover shock bodies feature 7/8 inch shafts.
• ICON engineered coil springs ensure reliable performance.
• FK Rod End bearings offer extended longevity and minimal deflection.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8 inch shafts provide increased performance and a balanced tune when paired with coilovers.
