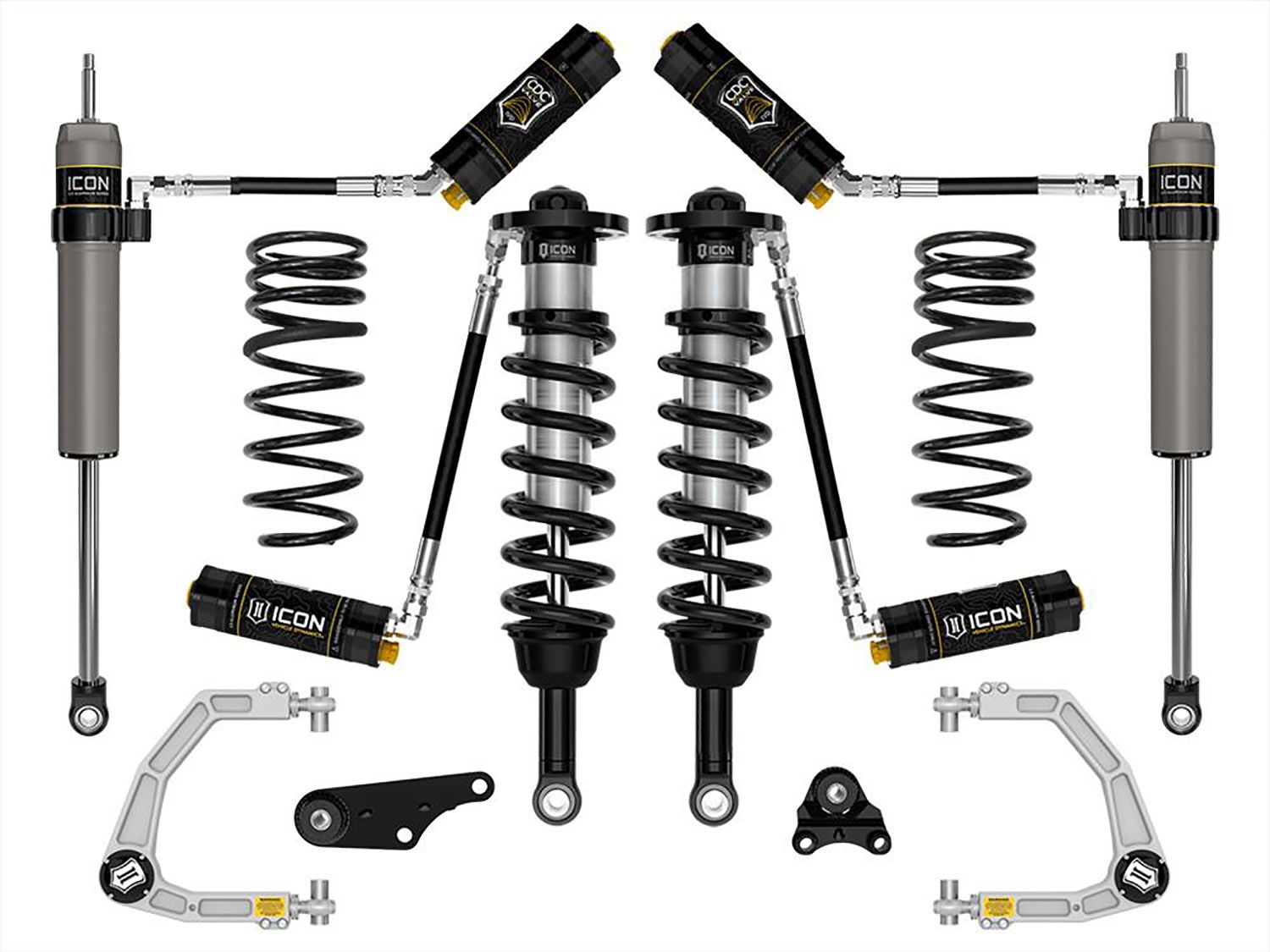

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 5

Introducing the K53295S ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems, meticulously crafted for peak performance and tailored to meet the demands of discerning drivers. With a steadfast commitment to elevating wheel travel and enhancing damping ability, ICON's engineers have engineered a solution that ensures unparalleled vehicle control and ride quality, whether navigating city streets or conquering rugged terrain.

The Stage 4 system boasts meticulously tuned 2.5 Series coil-over shocks featuring remote reservoirs and ICON-engineered coil springs that imbue your ride with a superior "feel" across the entire range of travel. These remote reservoirs significantly augment shock oil volume and heat dissipation surface area, steadfastly resisting overheating and cavitation, mitigating damper fade. Moreover, with height adjustability ranging from 1.25 to 3 inches of front lift height over stock, these coil-overs easily accommodate larger, more aggressive wheel and tire combinations. In conjunction with specifically designed coilover lengths, ICON's front differential drop brackets ensure maximized front suspension travel while averting CV bind. Furthermore, polyurethane differential mounting bushings replace soft OE bushings, effectively curbing differential movement under load.

The ICON billet aluminum upper control arm kit revolutionizes your Tacoma's performance, rectifying front-end geometry, enhancing on-vehicle camber and caster adjustment, and optimizing suspension component clearance. By integrating the all-new, serviceable, and rebuildable ICON Delta Joint PRO in place of the OE ball joint, we guarantee unrestricted bump and droop travel of the front suspension while eliminating bind.

At the rear, triple-rate coils deliver softer droop and ride rates with a firmer overload rate, delivering unparalleled on-road comfort, exceptional bottoming resistance, and superior off-road performance. Paired with ICON 2.5 Aluminum Series remote reservoir rear shocks, equipped with integrated bump zones and vehicle-specific valving, the system ensures harmonized performance from front to rear.

Features and Benefits:

• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides a better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coil-overs provide 1.25-3" front lift height over stock
• Triple-rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft-grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON-engineered coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series internal reservoir rear shocks with 7/8" shafts
