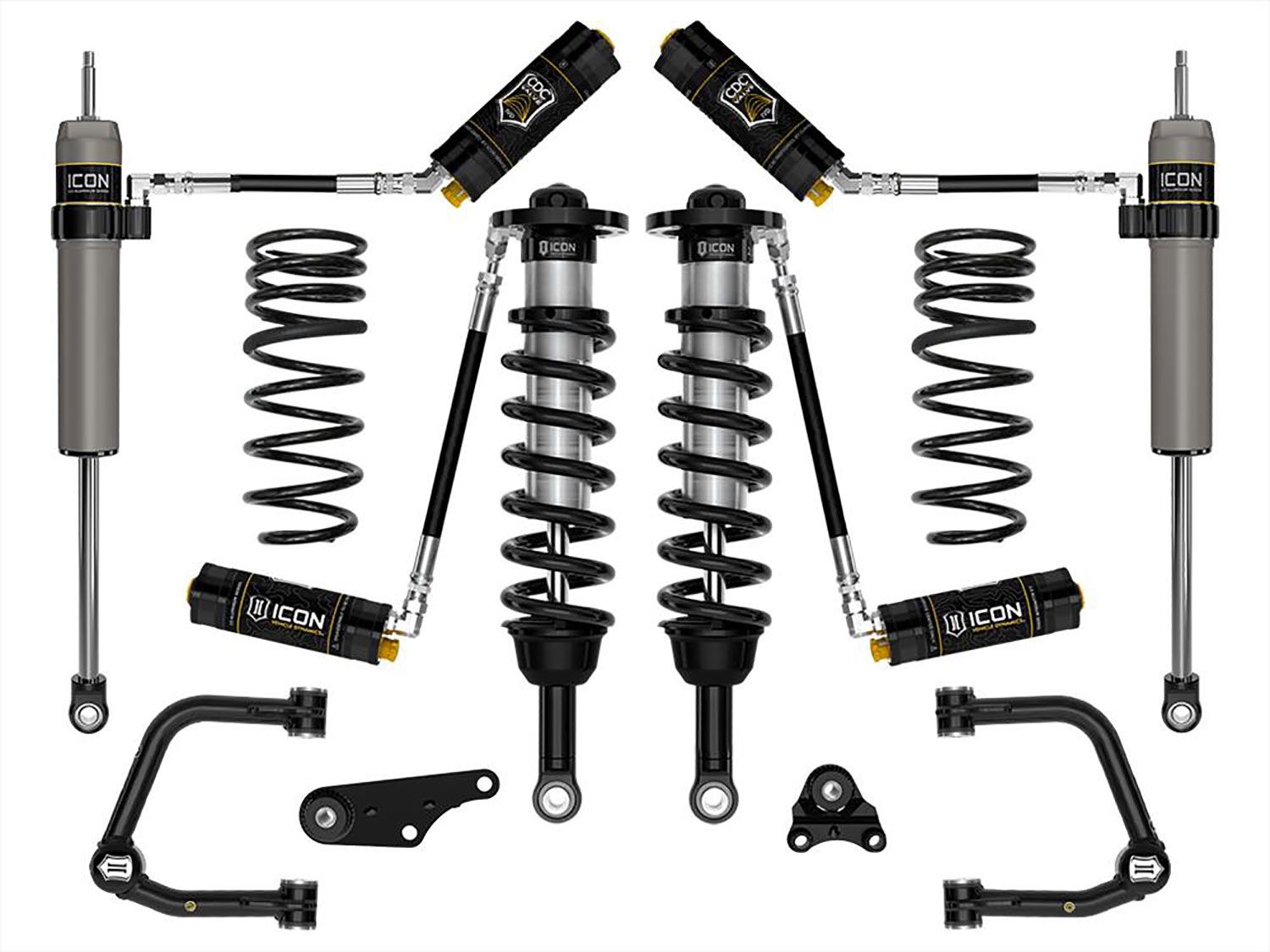

1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 5

The Toyota Tacoma K53295TS suspension system by ICON Vehicle Dynamics is meticulously crafted for peak performance and tailored for drivers who demand the best. With a keen eye on enhancing wheel travel and damping capability, ICON's engineers have crafted a Stage 5 system that excels both on and off the road.

The vehicle-specific tuned 2.5 Series coil-over shocks are at the heart of this system, equipped with CDCV (Compression Damping Control Valve) remote reservoirs and ICON-engineered coil springs. These innovations provide superior vehicle control across all terrains and ensure a smooth and comfortable ride throughout the full range of travel. The remote reservoirs are pivotal in enhancing shock cooling and oil volume, preventing damper fade even under the most demanding conditions. With externally adjustable CDC Valves offering 10 compression damping force ranges, drivers can fine-tune their suspension setup for optimal performance. The coilovers also offer adjustable lift heights, ranging from 1.25 to 3 inches over stock, enabling compatibility with larger wheel and tire combinations. Complemented by front differential drop brackets, specially designed coilover lengths, and polyurethane differential mounting bushings, this system maximizes front suspension travel while preventing CV bind.

ICON's tubular upper control arm kit is engineered to elevate Tacoma's performance, correcting front-end geometry and offering additional caster for improved drivability. Featuring the innovative Delta Joint PRO, this kit ensures full bump and droop travel while eliminating binding issues associated with OE ball joints.

On the rear end, their triple-rate coil design provides a balanced blend of comfort and performance, offering softer droop and ride rates with a firmer overload rate. Paired with ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks, equipped with integrated bump zones and vehicle-specific valving, this system delivers exceptional shock damping, ensuring a harmonious balance between front and rear performance.

Features and Benefits:

• 2.5 Series front coilovers featuring remote reservoirs enhance damping and vehicle control, ensuring superior performance and improved shock cooling.
• Enjoy increased wheel travel and a smoother ride quality compared to stock suspension systems.
• Front differential drop optimizes the maximum operating angle for CV joints and maximizes available wheel travel, especially on 4WD models.
• Adjustable coilovers allow for a front lift height adjustment ranging from 1.25 to 3 inches over stock levels.
• Tubular Upper Control Arms (UCAs) offer added strength, durability, and alignment correction, enhancing drivability.
• UCAs have the patented Delta Joint Pro, boasting 90 degrees of total articulation for increased flexibility.
• All shock absorbers come with CDC Valves, providing 10 settings of compression damping adjustment from soft to hard.
• Triple-rate rear coil springs enhance performance and ride quality while offering a rear lift of 0.5 inches.
• Machined from 6061 aircraft-grade aluminum, components ensure durability and precise engineering.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts guarantee longevity and reliability.
• ICON-engineered front and rear coil springs deliver optimal performance and durability.
• FK Rod End bearings provide extended longevity and minimal deflection, ensuring a smooth driving experience.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased performance and a balanced tune when paired with coilovers.
