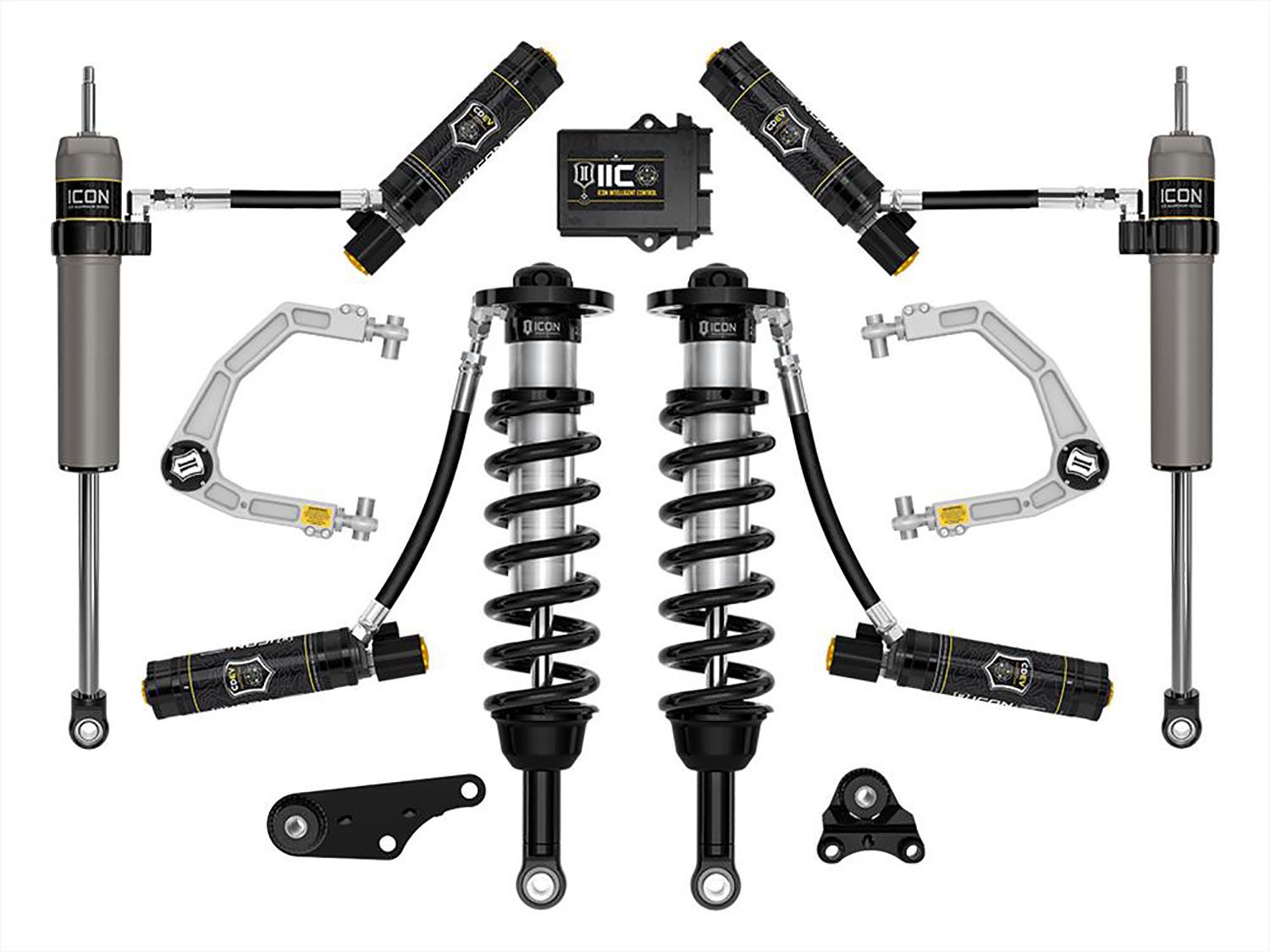

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms) by ICON Vehicle Dynamics - Stage 6

The ICON Vehicle Dynamics Toyota Tacoma K53296 suspension systems are engineered for peak performance, catering to the discerning driver who demands nothing but the best. With an unwavering commitment to enhancing wheel travel and damping ability, ICON's engineers have meticulously crafted the Stage 6 system for unparalleled performance on and off the road.

The vehicle-specific tuned 2.5 Series coil-over shocks are at the heart of this system, equipped with CDEV (Compression Damping Electronic Valve) remote reservoirs and ICON-engineered coil springs. These advancements deliver exceptional vehicle control across diverse terrains and ensure a smooth and comfortable ride throughout the entire range of travel. The remote reservoirs play a critical role in increasing shock oil volume and surface area for heat dissipation, safeguarding against overheating and cavitation under extreme usage, which can lead to damper fade. With the revolutionary ICON Intelligent Control (IIC) system and Compression Damping Electronic Valve (CDEV) technology, drivers can now experience near-instantaneous adjustments based on real-time terrain readings. You can wirelessly control the system through the IIC app on your smartphone, configuring it to your preferences. Once set, the system seamlessly operates without requiring constant driver input.

These coilovers also offer adjustable lift heights, ranging from 1.25 to 3 inches over stock, enabling compatibility with larger and more aggressive wheel and tire combinations. Paired with front differential drop brackets and specially designed coilover lengths, this system maximizes front suspension travel while eliminating CV bind. Polyurethane differential mounting bushings also replace the soft OE bushings, minimizing differential movement under load. The package includes the ICON billet aluminum upper control arm kit, engineered to enhance the overall performance of the 2024 Toyota Tacoma. This kit ensures optimal performance on every journey by featuring corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. The all-new ICON Delta Joint PRO replaces the OE ball joint, offering full bump and droop travel of the front suspension while eliminating binding issues.

The ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks, equipped with integrated bump zones and vehicle-specific valving, complete the package. This ensures balanced front-to-rear performance, improves shock-damping ability, and delivers an exceptional driving experience.

Features and Benefits:

• Cutting-edge 2.5 Series front coilovers featuring remote reservoirs deliver superior damping, vehicle control, and enhanced shock cooling.
• Experience heightened wheel travel and a smoother ride quality compared to stock suspension systems.
• Utilize ICON's innovative CDE Valve technology for on-the-fly compression damping adjustments within the vehicle or through the ICON Intelligent Control (IIC) system.
• Powered by ICON Intelligent Control and proprietary ICON mobile app
• With the ICON Intelligent Control (IIC), onboard sensors monitor G-forces and chassis movement, allowing for near-instantaneous compression damping changes based on user-defined settings.
• Front differential drop enhances the maximum operating angle for CV joints, optimizing wheel travel for 4WD models.
• Enjoy adjustable coilovers offering a lift height increase of 1.25 to 3 inches over stock levels.
• Constructed from billet aluminum, the upper control arms (UCAs) provide added strength and durability and allow for on-vehicle caster/camber adjustments, ensuring optimal drivability.
• UCAs feature the patented Delta Joint Pro which offers a remarkable 90 degrees of total articulation.
• Crafted from 6061 aircraft-grade aluminum, the components are precision CNC machined for exceptional quality.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts ensure long-lasting performance even in challenging environments.
• ICON-engineered coil springs and FK Rod End bearings contribute to extended longevity and minimal deflection, maintaining peak performance.
• The 2.5 Aluminum Series remote reservoir rear shocks, equipped with 7/8" shafts, provide heightened performance and a balanced tune when paired with coilovers.
