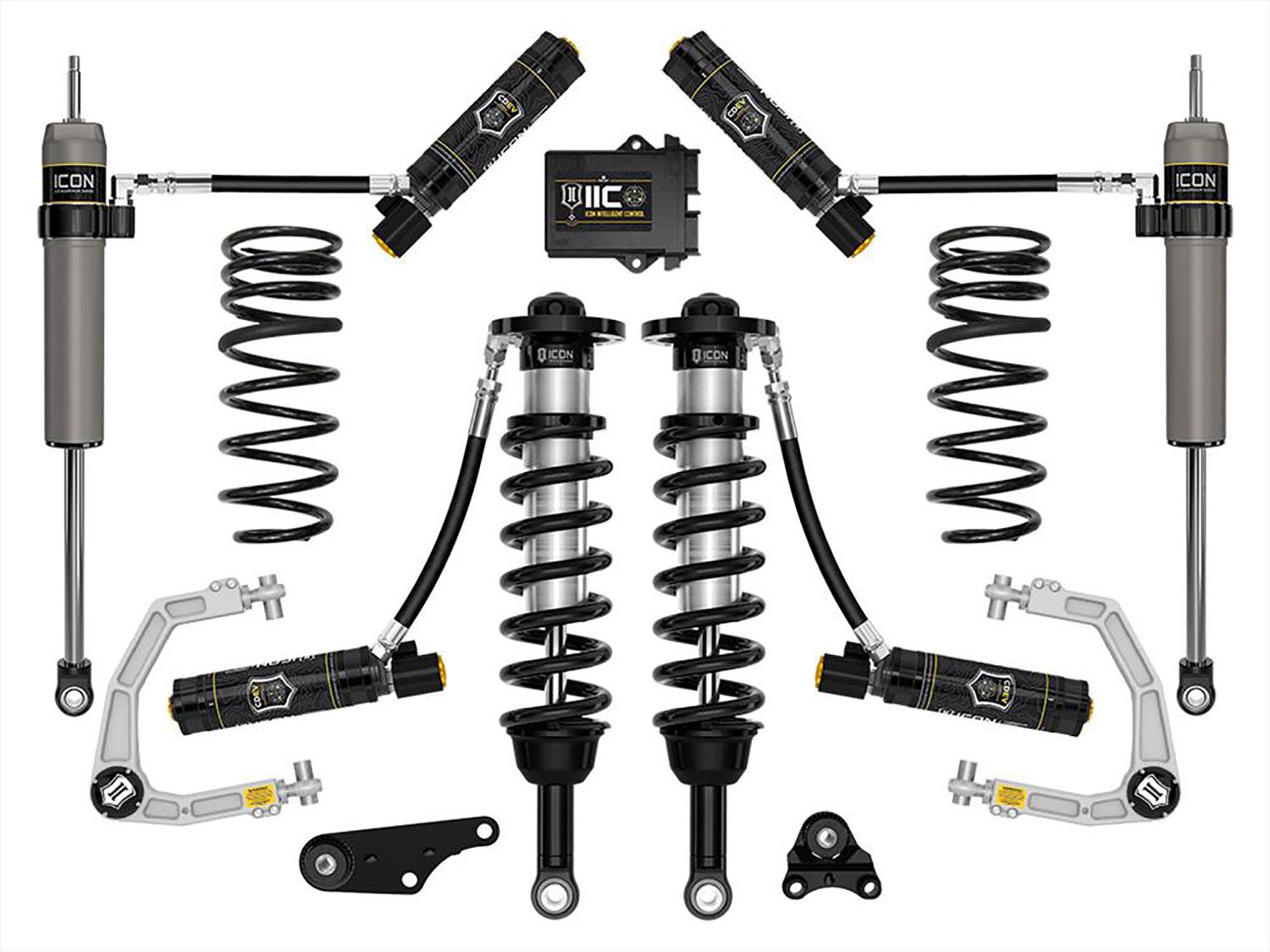

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 6

Introducing the ICON Vehicle Dynamics K53296S, Toyota Tacoma suspension systems prioritize maximum performance for serious drivers. Engineered to amplify wheel travel and damping ability, they promise exceptional vehicle control and ride quality, whether on or off-road. The Stage 6 system boasts vehicle-specific tuned 2.5 Series coilover shocks with Compression Damping Electronic Valve (CDEV) equipped remote reservoirs and ICON-engineered coil springs. These features provide an unparalleled "feel" throughout the suspension's range of travel. Enhanced shock cooling and expanded oil volume ensure optimal performance under demanding conditions thanks to the remote reservoirs.

Embrace a hands-free experience with ICON Intelligent Control (IIC), which autonomously adjusts compression damping settings via the CDEV at each shock. Control the system wirelessly through the IIC app on your phone, and once configured, it operates without driver intervention. With a height adjustable range of 1.25-3”, these coil-overs accommodate larger, more aggressive wheel and tire combinations. Front differential drop brackets and tailored coilover lengths maximize front suspension travel while preventing CV bind. Polyurethane differential mounting bushings replace OE bushings to limit differential movement under load.

The ICON billet aluminum upper control arm kit ensures optimal performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and enhanced suspension component clearance. The ICON Delta Joint PRO replaces OE ball joints, enabling full bump and droop travel while eliminating binding.

In the rear, triple-rate coils offer softer droop and ride rates with a firmer overload rate, guaranteeing comfort on-road and superior performance off-road. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks deliver improved shock damping ability with integrated bump zones, perfectly balanced for front-to-rear performance. Elevate your 2024 Toyota Tacoma's capabilities on any terrain with the ICON Vehicle Dynamics Stage 6 suspension system.

Features and Benefits:

• Front coil-overs from the 2.5 Series feature remote reservoirs, enhancing damping, vehicle control, and shock cooling.
• Experience increased wheel travel and superior ride quality compared to stock suspension setups.
• Utilize ICON's CDE Valve technology for in-vehicle compression damping adjustment and active adjustments via ICON Intelligent Control (IIC).
• Powered by ICON Intelligent Control and proprietary ICON mobile app
• ICON Intelligent Control (IIC) utilizes onboard sensors to monitor G-forces and chassis movement, enabling near-instantaneous compression damping changes based on user-defined settings.
• Front differential drop optimizes the operating angle for CV joints and maximizes wheel travel on 4WD models.
• Adjustable coilovers offer a front lift height adjustment range of 1.25-3" over stock levels.
• Billet aluminum Upper Control Arms (UCAs) provide added strength, durability, and on-vehicle caster/camber adjustment for optimal drivability.
• UCAs feature the patented Delta Joint Pro with 90 degrees of articulation (U.S. Pat. 10,731,700).
• Triple-rate rear coil springs enhance performance and ride quality while providing a rear lift of 0.5".
• Components are crafted from 6061 aircraft-grade aluminum CNC machined for precision.
• Coilover shock bodies are CAD-plated for corrosion resistance and feature 7/8" shafts.
• Front and rear coil springs are engineered by ICON for optimal performance.
• FK Rod End bearings ensure extended longevity and minimal deflection.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts enhance performance and a balanced tune when paired with coilovers.
