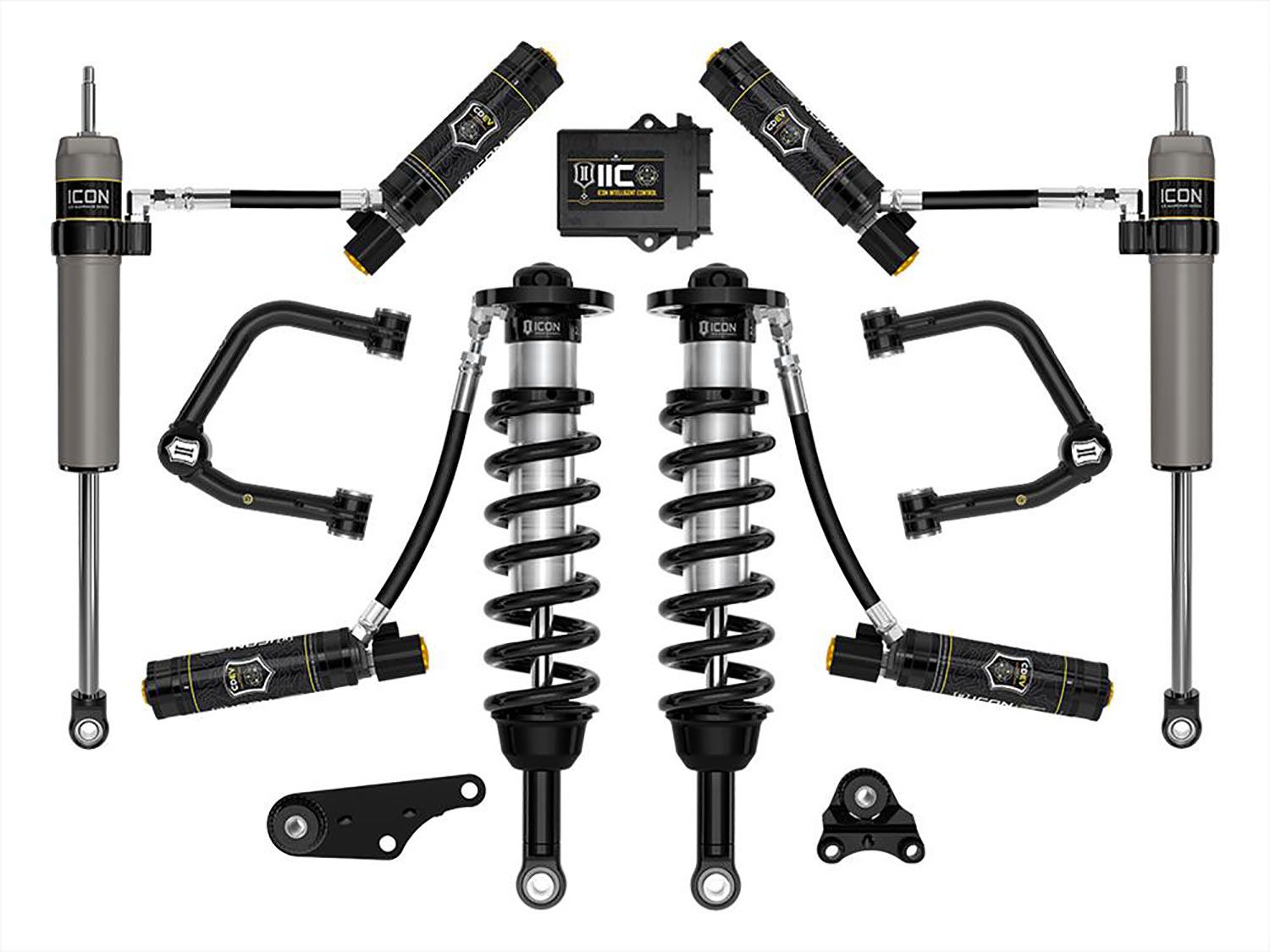

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms) by ICON Vehicle Dynamics - Stage 6

ICON Vehicle Dynamics' K53296T Suspension Systems for the Toyota Tacoma are engineered for maximum performance, catering to the discerning driver seeking superior handling on and off-road. This Stage 6 setup features meticulously tuned 2.5 Series coil-over shocks with CDEV-equipped remote reservoirs and ICON-engineered coil springs, ensuring exceptional vehicle responsiveness throughout the full range of travel. The addition of remote reservoirs significantly enhances shock oil volume and heat dissipation, effectively resisting overheating and cavitation even under rigorous usage, thereby minimizing damper fade.

With the innovative ICON Intelligent Control (IIC), drivers can delegate terrain analysis and instantaneous adjustments to the Compression Damping Electronic Valve (CDEV) at each shock, effortlessly managed via the IIC app on their smartphone. Once configured, the system autonomously optimizes performance without requiring manual intervention. Moreover, these coil-overs offer height adjustability ranging from 1.25 to 3 inches of front lift height over stock, accommodating larger and more aggressive wheel and tire combinations. Including front differential drop brackets and ICON's meticulously crafted coilover lengths ensures maximal front suspension travel while preventing CV bind. Furthermore, polyurethane differential mounting bushings replace stock OE bushings, curbing differential movement under load for enhanced stability.

The ICON tubular upper control arm kit complements the coil-overs and is engineered to rectify front-end geometry issues, augment the caster, and optimize suspension component clearance. Integrating the ICON Delta Joint PRO, a serviceable and rebuildable ball joint, enables unrestricted bump and droop travel while eliminating binding.

Rounding out the system are the ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks, featuring integrated bump zones and vehicle-specific valves for balanced performance across the front and rear.

Features and Benefits:

• Front coilovers from the 2.5 Series feature remote reservoirs, ensuring superior damping, precise vehicle control, and enhanced shock cooling.
• Experience increased wheel travel and a smoother ride quality compared to stock suspension systems.
• ICON's CDE Valve technology enables compression damping settings adjustments from within the vehicle, complemented by active adjustments through the ICON Intelligent Control (IIC).
• The ICON Intelligent Control (IIC) system employs onboard sensors to monitor G-forces and chassis movement, facilitating near-instantaneous compression damping changes based on user-defined settings.
• Front differential drop enhances the maximum operating angle for CV joints, optimizing wheel travel for 4WD models.
• Adjustable coilovers offer a front lift height adjustment ranging from 1.25 to 3 inches over stock levels.
• Tubular Upper Control Arms (UCAs) are incorporated for increased strength, durability, and alignment correction, ensuring improved drivability.
• UCAs boast the patented (U.S. Pat. 10,731,700) Delta Joint Pro, offering 90 degrees of total articulation for enhanced flexibility.
• Crafted from 6061 aircraft-grade aluminum, all components are precision CNC machined for optimal performance and durability.
• Corrosion-resistant CAD plated coilover shock bodies feature 7/8-inch shafts, ensuring longevity and reliability.
• ICON-engineered coil springs provide optimal suspension performance and responsiveness.
• FK Rod End bearings are utilized for extended longevity and minimal deflection, enhancing overall suspension performance.
• 2.5 Aluminum Series remote reservoir rear shocks, equipped with 7/8-inch shafts, offer increased performance and a balanced tune when used with coilovers.
