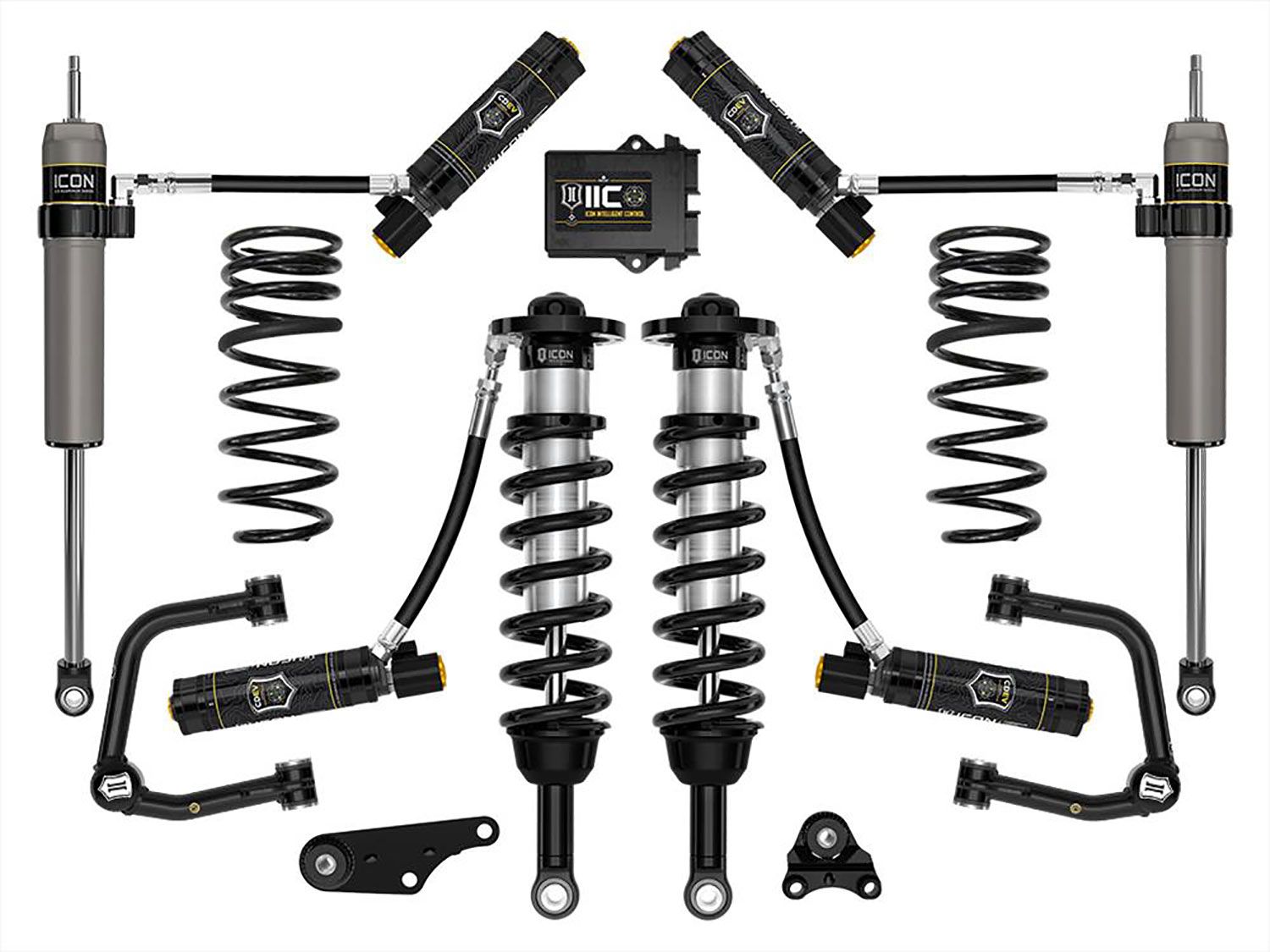

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 6

Experience the pinnacle of performance with ICON Vehicle Dynamics' K53296TS Toyota Tacoma suspension systems, meticulously crafted for the discerning driver. Engineered to amplify wheel travel and damping ability, the Stage 6 system promises unparalleled control and ride quality, whether navigating city streets or conquering off-road trails.

This comprehensive kit features meticulously tuned 2.5 Series coil-over shocks equipped with CDEV remote reservoirs seamlessly integrated with ICON-engineered coil springs. The remote reservoirs ensure optimal performance under the most demanding conditions by significantly increasing shock oil volume and heat dissipation surface area. With the revolutionary ICON Intelligent Control (IIC) system, you can effortlessly fine-tune compression damping settings via the Compression Damping Electronic Valve (CDEV) at each shock, wirelessly controlled through the intuitive IIC app on your phone. Designed for versatility, ICON coilovers offer adjustable height settings, allowing a lift height range of 1.25-3" over stock. Paired with front differential drop brackets, specially crafted coilover lengths, and polyurethane differential mounting bushings, ICON's system maximizes front suspension travel while preventing CV bind, ensuring uncompromised performance.

ICON tubular upper control arm kit corrects front-end geometry, enhances caster, and improves suspension component clearance, enhancing Tacoma's overall performance. Featuring the innovative ICON Delta Joint PRO, this kit enables full bump and droop travel while eliminating binding for a smoother ride.

In the rear, the triple-rate coil design offers a perfect balance of comfort and performance, with superior droop and ride rates and excellent bottoming resistance. The ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks, featuring integrated bump zones and vehicle-specific valving, ensure optimal shock damping from front to rear, enhancing your Tacoma's capabilities on any terrain.

Features and Benefits:

• Front coilovers are equipped with remote reservoirs enhance damping control and vehicle handling while improving shock cooling.
• Enjoy a smoother ride with increased wheel travel compared to factory suspension systems.
• Benefit from ICON's CDE Valve technology, allowing compression damping adjustments within the vehicle using the Intelligent Control (IIC) system.
• The Intelligent Control system monitors vehicle movement and G-forces, enabling real-time compression damping adjustments based on user-defined settings.
• Front differential drop optimizes CV joint angles and maximizes wheel travel for 4WD models.
• Adjustable coilovers offer customizable front lift heights ranging from 1.25 to 3 inches above stock levels.
• Tubular Upper Control Arms (UCAs) provide enhanced durability, alignment correction, and feature the patented Delta Joint Pro for superior articulation.
• Triple-rate rear coil springs improve performance and ride quality, providing 0.5 inches of rear lift.
• Constructed with 6061 aircraft-grade aluminum CNC machined components for durability and precision.
• Corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts ensure longevity and performance.
• ICON-engineered front and rear coil springs optimize suspension dynamics for enhanced performance.
• FK Rod End bearings offer extended longevity and minimal deflection for improved durability.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts complement coilovers, providing increased performance and a balanced tune.
