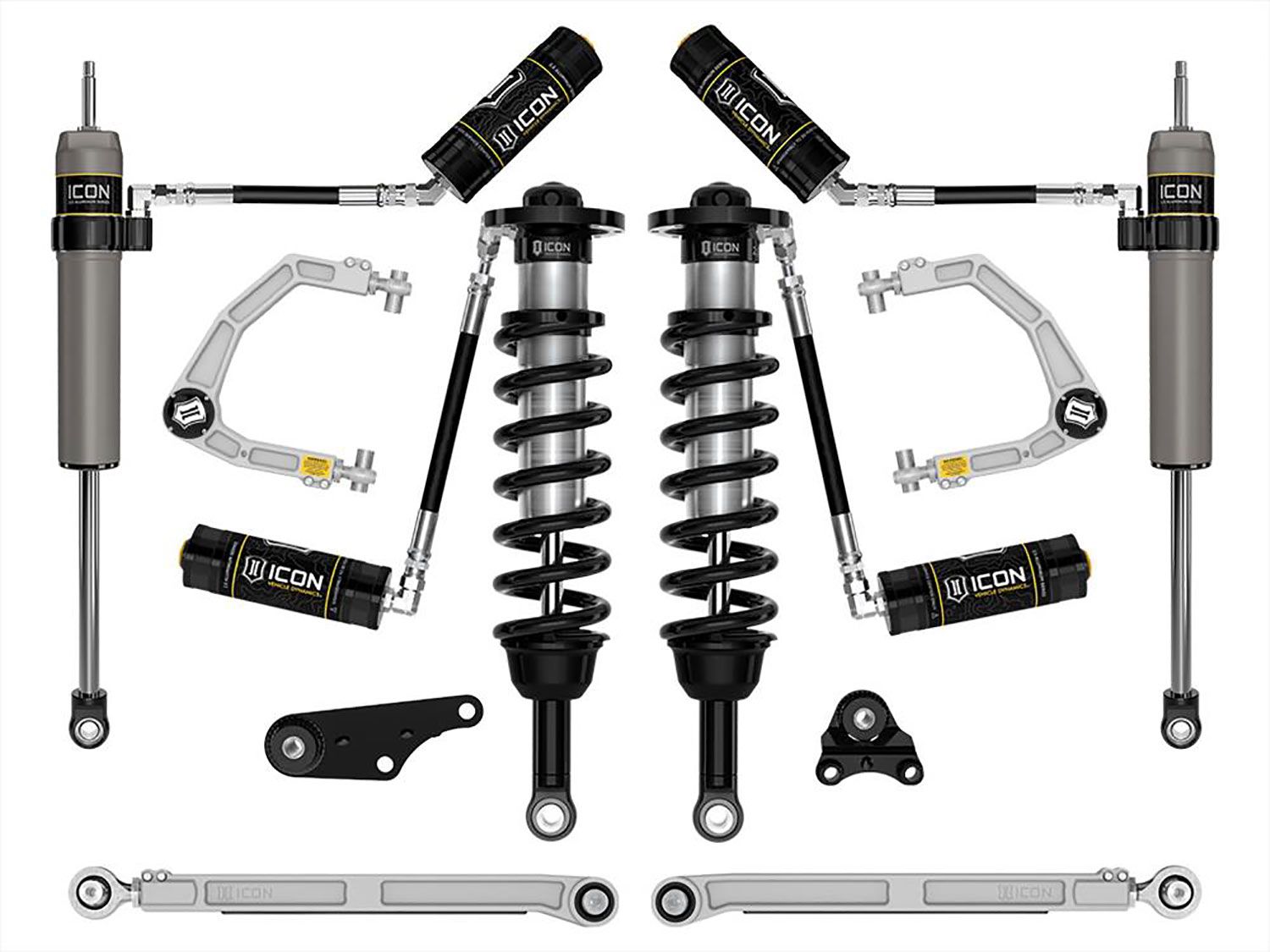

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms) by ICON Vehicle Dynamics - Stage 7

The K53297 Toyota Tacoma suspension systems by ICON Vehicle Dynamics are crafted for peak performance and the discerning driver. With a core emphasis on boosting wheel travel and damping ability, these Stage 7 setups ensure unparalleled vehicle control and ride comfort both on and off the beaten path.

Featuring vehicle-specific tuned 2.5 Series coil-over shocks equipped with remote reservoirs and ICON-engineered coil springs, this system delivers an exceptional "feel" across the full range of travel. The remote reservoirs significantly augment shock oil volume and heat dispersion, thwarting overheating and cavitation even during rigorous use, thereby averting damper fade. Additionally, these coil-overs offer height adjustability, granting a lift height range of 1.25-3" over stock and facilitating larger, more aggressive wheel and tire combinations. Moreover, integrating front differential drop brackets alongside ICON's meticulously crafted coilover lengths optimizes front suspension travel while safeguarding against CV bind. Polyurethane differential mounting bushings replace the OE counterparts further to enhance performance, curtailing differential movement under load.

The ICON billet aluminum upper control arm kit complements this setup, engineered to refine the 2024 Toyota Tacoma's overall performance. Correcting front-end geometry and providing increased on-vehicle camber and caster adjustment, this kit ensures improved suspension component clearance. By substituting the OE ball joint with the cutting-edge, serviceable, and rebuildable ICON Delta Joint PRO, full bump and droop travel of the front suspension is achieved, eliminating bind and enhancing maneuverability.

ICON billet rear lower links, featuring on-vehicle adjustability via the ICON double adjuster, offer exceptional articulation. These links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other, effectively isolating and damping road noise and vibrations.

Including ICON 2.5 Aluminum Series remote reservoir rear shocks, complete with integrated bump zones and vehicle-specific valving, ensures a harmonious balance of performance from front to rear.

Features and Benefits:

• Front 2.5 Series coil-overs with remote reservoirs ensure superior damping, vehicle control, and enhanced shock cooling.
• Experience increased wheel travel and superior ride quality compared to stock configurations.
• Front differential drop enhances the maximum operating angle for CV joints and maximizes wheel travel on 4WD models.
• Adjustable coilovers offer a lift height ranging from 1.25 to 3 inches over stock levels.
• Billet aluminum Upper Control Arms (UCAs) add strength and durability, enabling on-vehicle caster/camber adjustment for optimal drivability.
• UCAs feature the patented Delta Joint Pro, providing 90 degrees of total articulation.
• Constructed from 6061 aircraft-grade aluminum, CNC machined components ensure precision and durability.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts withstand harsh conditions.
• ICON-engineered coil springs optimize performance and durability.
• FK Rod End bearings extend longevity and minimize deflection for enhanced performance.
• Billet rear lower links enhance rear-end articulation and enable on-vehicle pinion angle adjustment.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts deliver increased performance and a balanced tune when used with coilovers.
