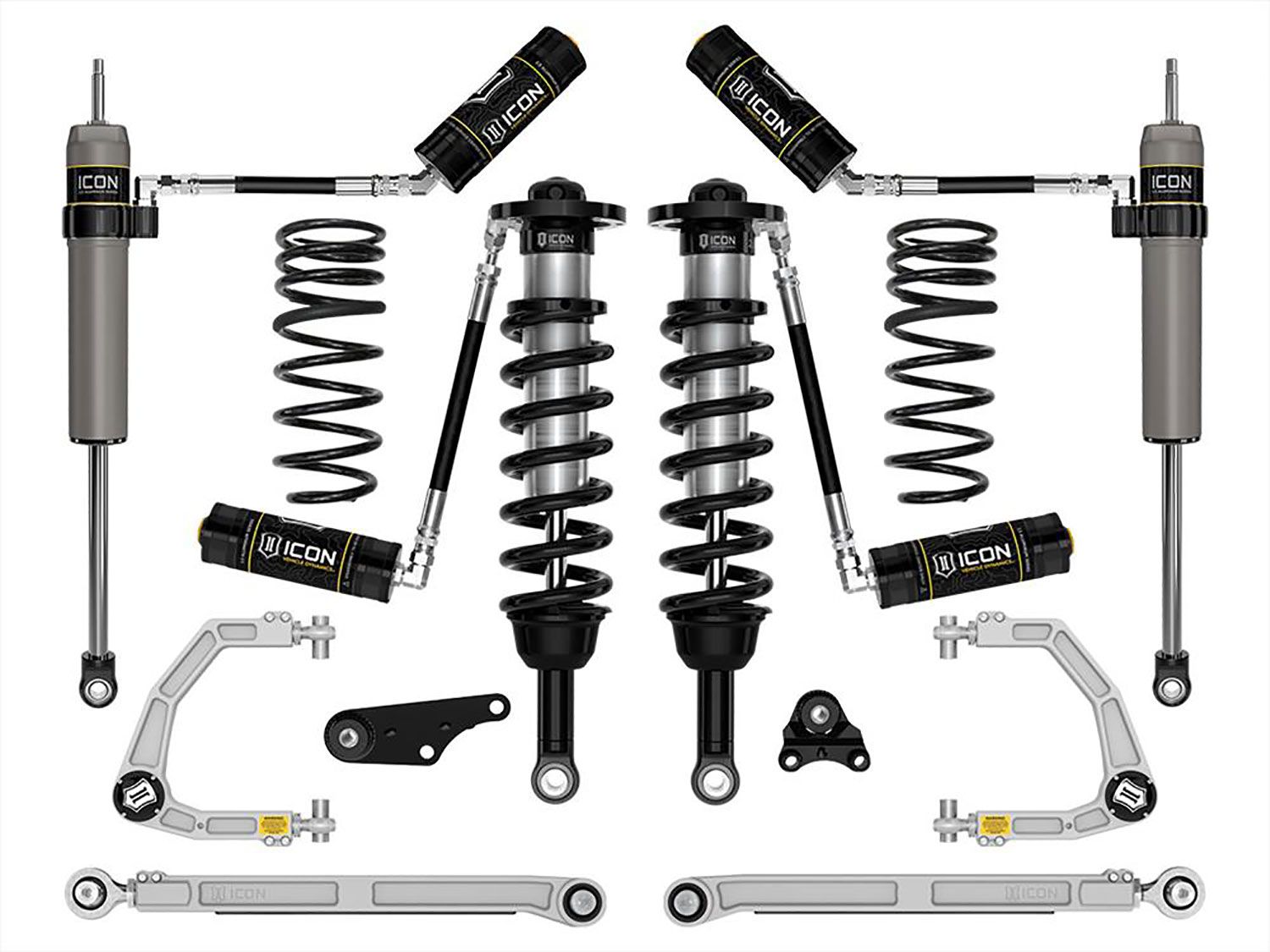

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 7

ICON Vehicle Dynamics presents its Toyota Tacoma suspension systems tailored for peak performance and dedicated drivers. Kit K53297S has been engineered with a focus on maximizing wheel travel and damping ability, these Stage 7 systems promise exceptional vehicle control and ride quality on all terrains.

Featuring vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs and ICON-engineered coil springs, this setup ensures superior vehicle "feel" across the entire range of travel. The inclusion of remote reservoirs significantly enhances shock oil volume and heat dissipation, crucial for resisting overheating and cavitation under strenuous conditions, thereby preventing damper fade. These coilovers offer height adjustability from 1.25 to 3 inches of front lift height over stock, enabling the use of larger wheel and tire combinations.

The front differential drop brackets and specially designed coilover lengths optimize front suspension travel while preventing CV bind. Polyurethane differential mounting bushings replace soft OE bushings, effectively limiting differential movement under load. The accompanying ICON billet aluminum upper control arm kit corrects front-end geometry, offering increased on-vehicle camber and caster adjustment, along with enhanced suspension component clearance. The inclusion of the all-new, serviceable, and rebuildable ICON Delta Joint PRO replaces the OE ball joint, allowing full bump and droop travel of the front suspension while eliminating bind.

Additionally, the ICON billet rear lower links provide on-vehicle adjustability via the double adjuster, coupled with dual-durometer greaseless bushings and massive FK rod ends. This combination ensures optimal articulation while isolating and damping road noise and vibrations. The rear triple-rate coils deliver softer droop and ride rates with a firmer overload rate, offering superior comfort on-road and exceptional performance off-road.

Completing the system are the ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones, delivering improved shock damping ability and vehicle-specific valving for balanced performance from front to rear.

Features and Benefits:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
