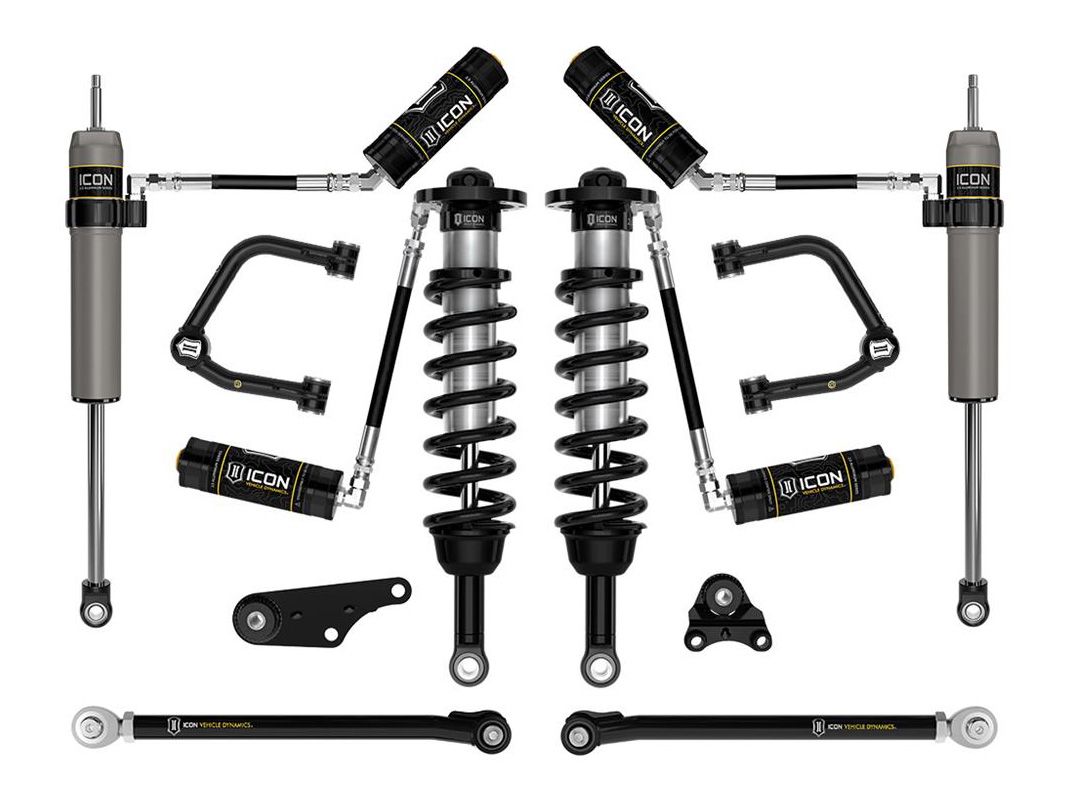

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms) by ICON Vehicle Dynamics - Stage 7

The K53297T Toyota Tacoma suspension systems from ICON Vehicle Dynamics are meticulously crafted for peak performance, catering to severe drivers seeking unparalleled handling on and off-road.

At the heart of the Stage 7 system are the precisely tuned 2.5 Series coil-over shocks with remote reservoirs and ICON-engineered coil springs. These components ensure exceptional vehicle control and responsiveness across the entire range of travel. Enhanced shock cooling is achieved through remote reservoirs, effectively managing heat and preventing damper fade even under rigorous conditions. With adjustability ranging from 1.25 to 3 inches of front lift height over stock, these coil-overs accommodate larger wheel and tire combinations for a more aggressive stance.

Integrating front differential drop brackets and custom coilover lengths maximizes front suspension travel while eliminating the risk of CV bind. Furthermore, polyurethane differential mounting bushings replace factory bushings, curbing differential movement under load.

The system includes the ICON tubular upper control arm kit, meticulously designed to optimize Tacoma's performance. Corrected front-end geometry, increased caster, and improved suspension clearance ensure precise handling and enhanced durability. Introducing the ICON Delta Joint PRO, a serviceable and rebuildable ball joint, allows unrestricted bump and droop travel while eradicating binding issues.

For the rear suspension, tubular rear lower links equipped with dual-durometer greaseless bushings and FK rod ends provide unmatched articulation and damping capabilities, effectively reducing road noise and vibrations. The ICON 2.5 Aluminum Series remote reservoir rear shocks complement these components, featuring integrated bump zones and vehicle-specific valves for a perfectly balanced performance from front to rear.

Features and Benefits:

• Advanced 2.5 Series front coil-overs featuring remote reservoirs, ensuring superior damping, precise vehicle control, and enhanced shock cooling.
• Experience heightened wheel travel and improved ride quality compared to stock suspension setups.
• Front differential drop optimizes the maximum operating angle for CV joints, maximizing wheel travel on 4WD models.
• Adjustable coilovers offer a lift height ranging from 1.25 to 3 inches over stock, providing versatility and customization options.
• Tubular Upper Control Arms (UCAs) enhance strength, durability, and alignment correction for improved drivability.
• UCAs boast the patented Delta Joint Pro, offering 90 degrees of total articulation for unrestricted movement.
• Crafted from 6061 aircraft-grade aluminum, CNC-machined components ensure precision and durability.
• Coilover shock bodies are CAD plated for corrosion resistance, featuring 7/8" shafts for robust performance.
• ICON-engineered coil springs deliver reliable support and performance tailored to your vehicle.
• FK Rod End bearings ensure extended longevity and minimal deflection, enhancing overall durability.
• Tubular rear lower links enhance rear-end articulation and facilitate pinion angle adjustment for optimized performance.
• 2.5 Aluminum Series remote reservoir rear shocks, equipped with 7/8" shafts, provide heightened performance and a balanced tune when paired with coilovers.
