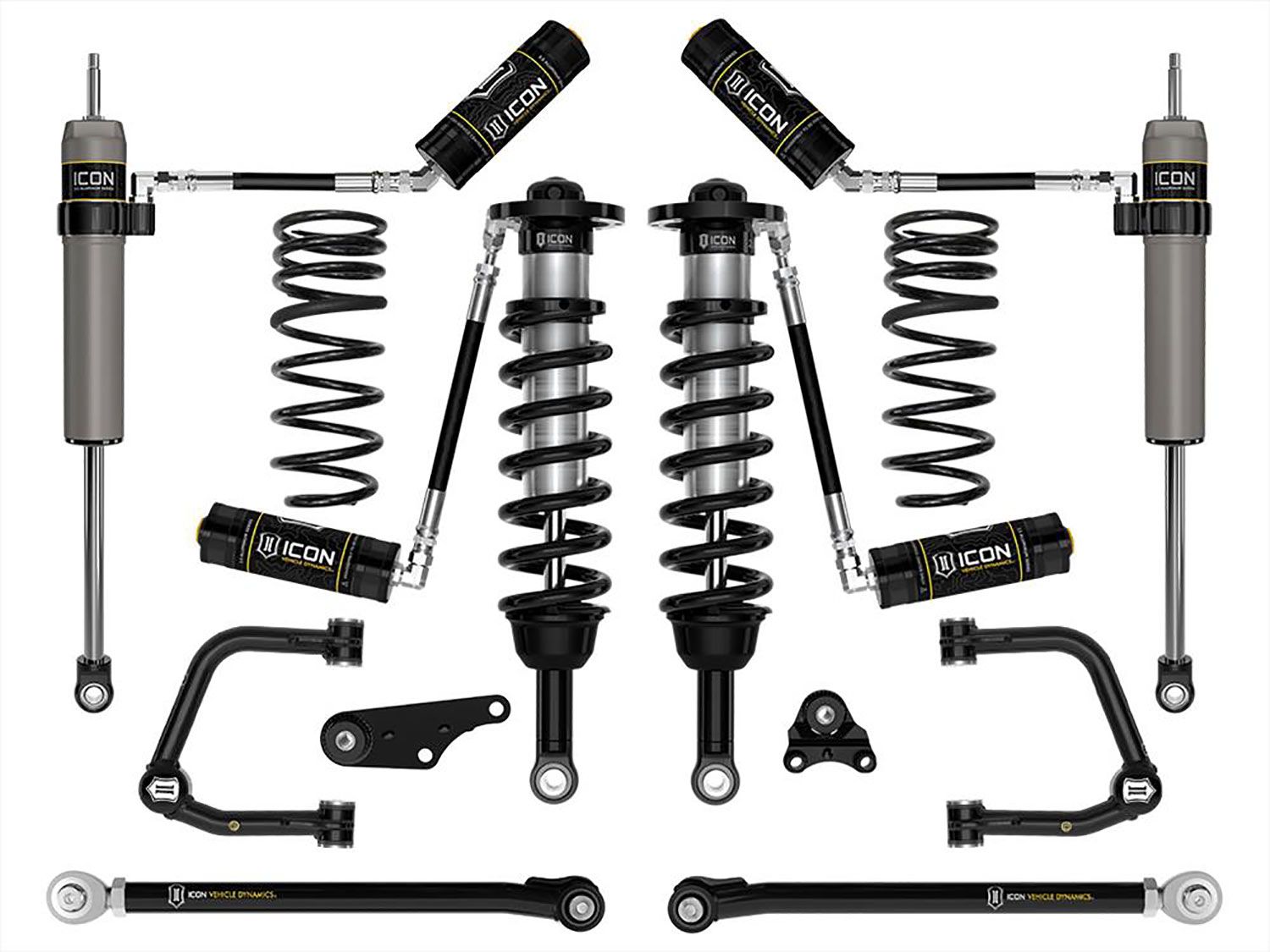

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 7

ICON Vehicle Dynamics presents its K53297TS Suspension System for the Toyota Tacoma, engineered for maximum performance and the discerning driver. With a focus on enhancing wheel travel and damping ability, these systems ensure unparalleled vehicle control and ride quality, whether on rugged trails or smooth highways.

The Stage 7 setup comprises vehicle-specific tuned 2.5 Series coil-over shocks equipped with remote reservoirs and ICON-engineered coil springs, providing a responsive and smooth ride across various terrains. These remote reservoirs significantly increase shock oil volume and heat dissipation area, effectively countering overheating and cavitation during demanding use, thereby preventing damper fade. Moreover, these coil-overs offer height adjustability ranging from 1.25 to 3 inches of front lift height over stock, enabling the installation of larger wheel and tire combinations for a more aggressive look and enhanced performance. Integrating front differential drop brackets and specially designed coilover lengths maximizes front suspension travel while preventing CV bind. Polyurethane differential mounting bushings also replace soft OE bushings, minimizing differential movement under heavy loads.

The package includes the ICON tubular upper control arm kit, meticulously crafted to optimize the 2024 Toyota Tacoma's overall performance. This kit corrects front-end geometry, incorporates an additional caster, and enhances suspension component clearance. By replacing the OE ball joint with the ICON Delta Joint PRO, full bump and droop travel of the front suspension are achieved, eliminating any binding issues.

For the rear suspension, ICON tubular rear lower links with dual-durometer greaseless bushings and massive FK rod ends provide exceptional articulation while effectively isolating and dampening road noise and vibrations. The rear triple-rate coils ensure a comfortable ride on-road and exceptional performance off-road, combining softer droop and ride rates with a firmer overload rate.

Completing the package are the ICON 2.5 Aluminum Series remote reservoir rear shocks, equipped with integrated bump zones and vehicle-specific valving to ensure balanced performance from front to rear.

Features and Benefits:

• 2.5 Series front coilovers with remote reservoirs offer superior damping, precise vehicle control, and enhanced shock cooling.
• Enjoy increased wheel travel and a smoother ride quality compared to stock suspension systems.
• Front differential drop ensures optimal operating angles for CV joints and maximizes available wheel travel, especially on 4WD models.
• Adjustable coilovers allow front lift height adjustments ranging from 1.25 to 3 inches over stock levels.
• Tubular Upper Control Arms (UCAs) enhance strength, durability, and alignment correction, delivering improved drivability.
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation, ensuring versatile performance.
• Constructed with 6061 aircraft-grade aluminum, CNC machined components ensure durability and precision.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts ensure longevity and optimal performance.
• Triple-rate rear coil springs enhance rear performance and ride quality while providing a 0.5-inch rear lift.
• ICON-engineered coil springs offer reliable performance and durability.
• FK Rod End bearings minimize deflection and extend longevity for enhanced performance.
• Tubular rear lower links improve rear-end articulation and enable easy pinion angle adjustment.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and a balanced tune when paired with coilovers.
