1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms) by ICON Vehicle Dynamics - Stage 8
1.25-3" 2024 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms) by ICON Vehicle Dynamics - Stage 8
Coming Soon: We are taking pre-orders now!
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!
888-452-2548

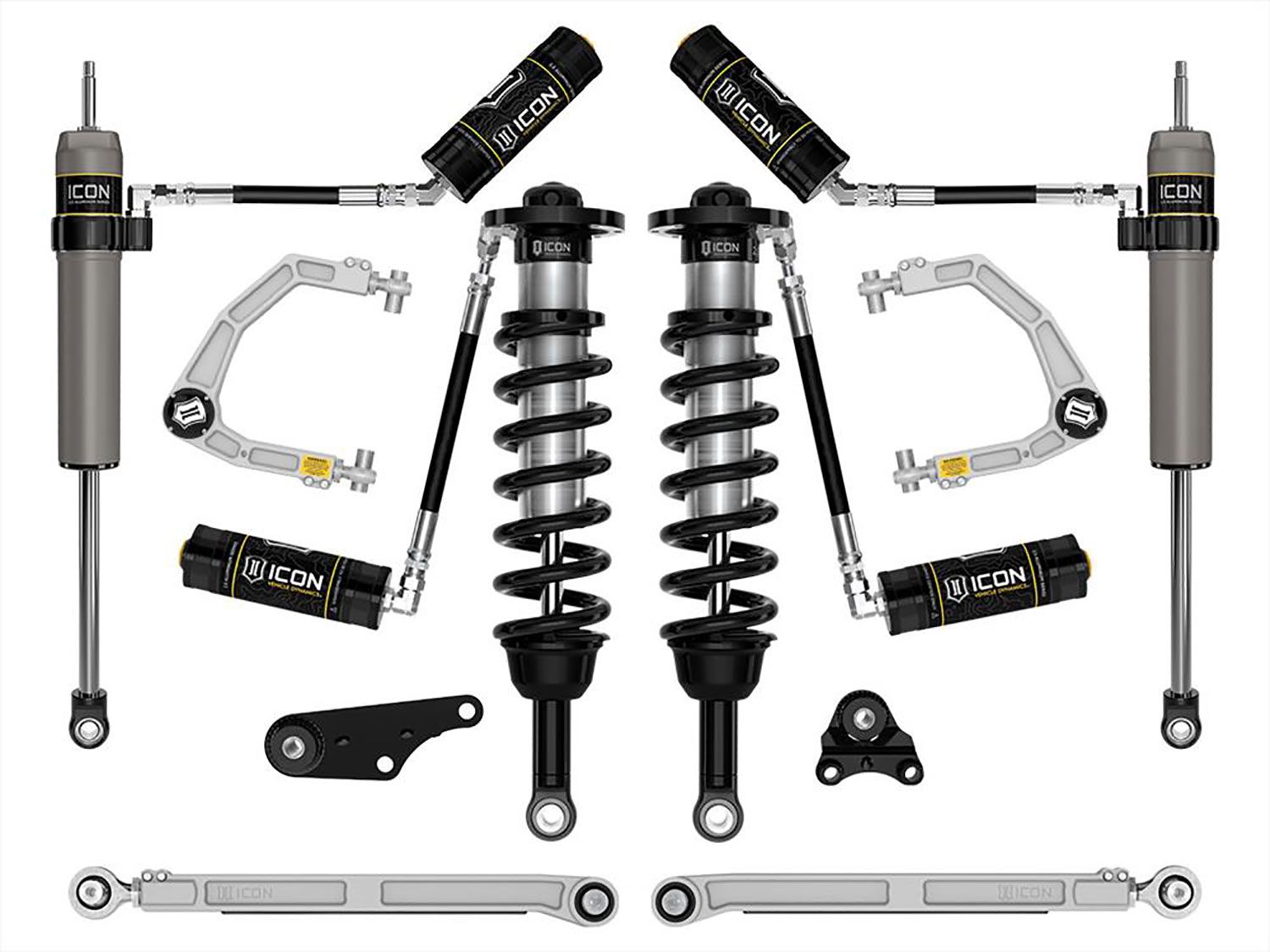

ICON Vehicle Dynamics K53298 Toyota Tacoma suspension system are engineered for peak performance and serious drivers. The focus is enhancing wheel travel and damping ability, resulting in exceptional vehicle control and ride quality on all terrains. This Stage 8 system boasts vehicle-specific tuned 2.5 Series coil-over shocks equipped with CDCV-enabled remote reservoirs and ICON-engineered coil springs. The remote reservoirs significantly increase shock oil volume and heat dissipation, preventing overheating and cavitation, which can lead to damper fade. Featuring ICON CDC Valves, these shocks offer externally adjustable compression damping force ranges across 10 levels. Moreover, these coil-overs allow height adjustment from 1.25 to 3 inches of front lift over stock, enabling larger, more aggressive wheel and tire combinations. The system incorporates front differential drop brackets and specially designed coilover lengths to optimize front suspension travel and eliminate CV bind. Polyurethane differential mounting bushings also replace OE bushings to minimize differential movement under load. The ICON billet aluminum upper control arm kit enhances overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the ICON Delta Joint PRO ensures full bump and droop travel while eliminating bind. The billet rear lower links feature on-vehicle adjustability and dual-durometer greaseless bushings, providing optimal articulation and damping of road noise and vibrations. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks complement the system, offering improved shock-damping ability with integrated bump zones and vehicle-specific valving for balanced performance. Features and Benefits:
|
Important Notes1. OEM Wheels & Tires Fitment: Yes 2. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset 3. Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00" Backspace / 25mm Offset 4. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit, but fender trimming and modifications will be required.) 5. APPLICATION NOTE #55: Shocks are fully serviceable. The lift heights indicated are for a stock-equipped vehicle. 6. APPLICATION NOTE #85: Advertised lift height ranges are for a stock-equipped vehicle. Increasing the vehicle's weight due to accessories will alter the lift range. 7. TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift-over stock 8. TECH NOTE: This kit is configured for fitment on 4WD models. If installed onto a 2WD 2024 Toyota Tacoma SR, SR5, or TRD Sport, front differential drop kit part # 55160 is not needed, and the other suspension system components can be ordered individually with full system functionality. 2WD-specific kits are coming soon! 9. TECH NOTE: Will not fit 2024 Toyota Tacoma TRD PreRunner or 2024 Toyota Tacoma Limited AWD |
Make | Toyota |
---|---|
Model | Tacoma |
Year Fitment | 2024 |
2WD/4WD | 4WD |
Manufacturer | Icon Vehicle Dynamics |
---|---|
Manufacturer Part Number | K53298 (stage 8) |
Item Number | ico_k53298 |
MPN(UPC) | 00840103429199 |
Product Line | Lift Kits |
Lift Height | 3 inch |
