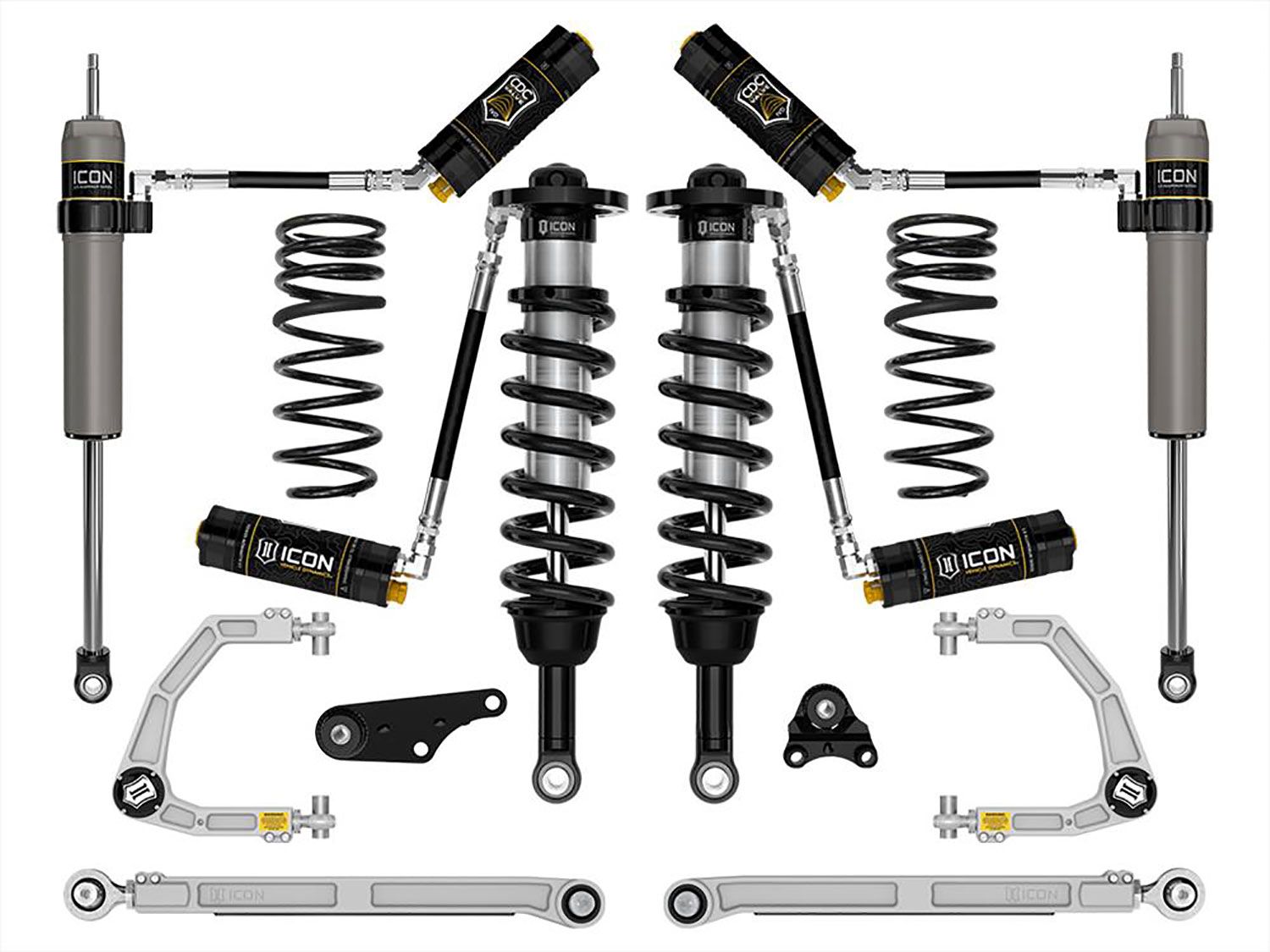

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 8

The K53298S Toyota Tacoma suspension systems from ICON Vehicle Dynamics are crafted with top-tier performance and dedicated drivers in mind. ICON's engineers prioritize enhancing wheel travel and damping ability to deliver exceptional vehicle control and ride quality, whether on or off-road.

The Stage 8 system features specially tuned 2.5 Series coil-over shocks equipped with CDCV (Compression Damping Control Valve) remote reservoirs alongside ICON-engineered coil springs, ensuring an unparalleled driving experience across the full range of motion. These remote reservoirs significantly boost shock oil volume and heat dissipation, warding off overheating and cavitation during rigorous usage, thus preventing damper fade. CDC Valves from ICON offer external adjustability, providing ten compression damping force ranges by restricting oil flow into the reservoir. Moreover, these coil-overs boast height adjustability, offering a lift range of 1.25-3 inches over stock, facilitating larger and more aggressive wheel and tire combinations.

Incorporating front differential drop brackets and specially designed coilover lengths optimizes front suspension travel while averting CV bind. Polyurethane differential mounting bushings also replace soft OE bushings, limiting differential movement under load.

The Stage 8 system includes a billet aluminum upper control arm kit to enhance overall performance by correcting front-end geometry, increasing on-vehicle camber and caster adjustment, and improving suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows full bump and droop travel of the front suspension, eliminating bind. T

he system's rear triple-rate coils offer softer droop and ride rates and a firmer overload rate, delivering on-road comfort and exceptional off-road performance. ICON's billet rear lower links feature on-vehicle adjustability via the ICON double adjuster. They employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other. This configuration ensures optimal articulation while isolating and damping road noise and vibrations.

Furthermore, the system includes 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones, enhancing shock damping ability and featuring vehicle-specific valving for balanced performance from front to rear.

Features and Benefits:

• 2.5 Series front coil-overs with remote reservoirs for superior damping and vehicle control, along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides a better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• All shock absorbers are equipped with CDC Valves, allowing for 10 settings of compression damping adjustment, ranging from soft to hard.
• Adjustable coil-overs provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple-rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• 6061 aircraft-grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON-engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• Billet rear lower links improve rear-end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coil-overs
