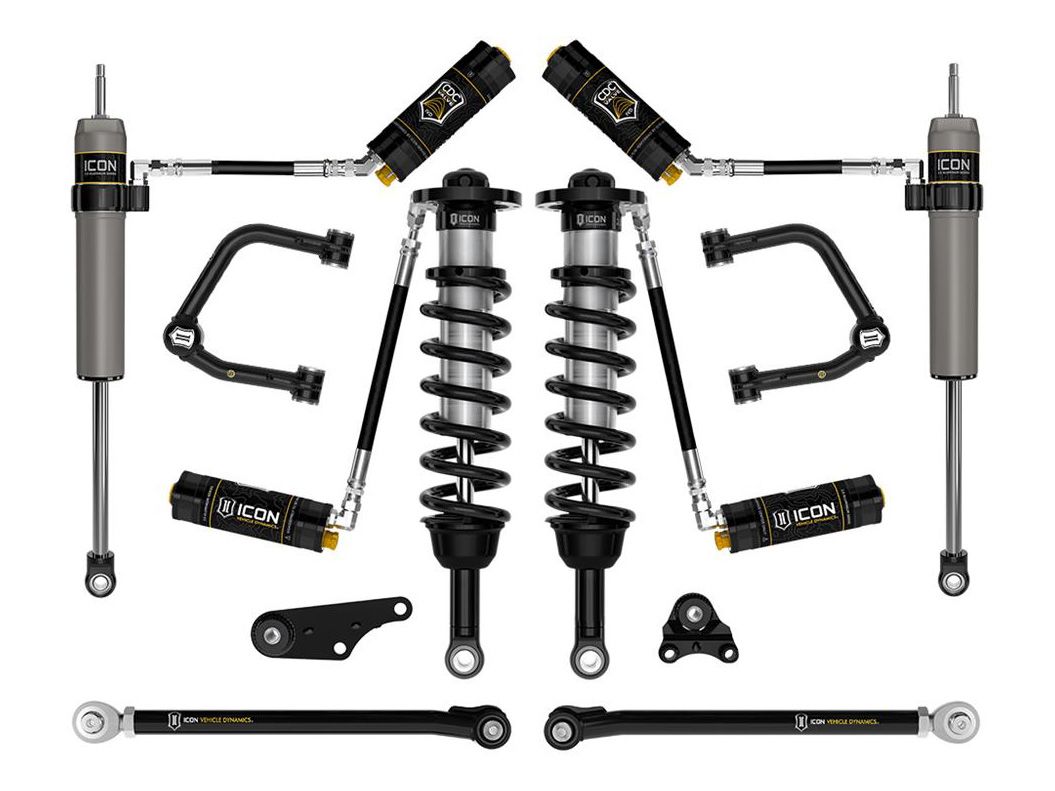

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms) by ICON Vehicle Dynamics - Stage 8

Introducing the 2024-2026 Toyota Tacoma K53298T suspension systems by ICON Vehicle Dynamics, engineered for peak performance and the discerning driver. ICON engineers prioritize enhancing wheel travel and damping ability, ensuring exceptional vehicle control and ride quality in any terrain.

The Stage 8 system boasts specially tuned 2.5 Series coil-over shocks with CDCV (Compression Damping Control Valve) remote reservoirs and ICON-engineered coil springs. These reservoirs significantly increase shock oil volume and heat dissipation, preventing damper fade even under rigorous use. The ICON CDC Valves offer ten compression damping force ranges, which are adjustable externally to suit your driving preferences. These coilovers are height-adjustable from 1.25 to 3 inches, allowing for larger wheel and tire combinations.

Front differential drop brackets and specially designed coilover lengths maximize front suspension travel while preventing CV bind. Polyurethane differential mounting bushings replace OE bushings to limit differential movement under load.

The Stage 8 system includes an ICON tubular upper control arm kit, which corrects front-end geometry and enhances suspension component clearance. The Delta Joint PRO replaces OE ball joints, enabling full bump and droop travel while eliminating bind.

Tubular rear lower links feature dual-durometer greaseless bushings for optimal articulation and noise damping.

The system is completed by 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones, which provide balanced performance from front to rear.

Features and Benefits:

• 2.5 Series front coil-overs with remote reservoirs ensure superior damping, vehicle control, and enhanced shock cooling for optimal performance.
• Experience increased wheel travel and a smoother ride quality compared to stock suspension setups.
• Front differential drop enhances the maximum operating angle for CV joints and maximizes wheel travel, which is particularly beneficial for 4WD models.
• Enjoy adjustable coilovers offering a front lift height ranging from 1.25 to 3 inches above stock levels.
• Tubular Upper Control Arms (UCAs) provide added strength, durability, and alignment correction, enhancing overall drivability.
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation, ensuring flexibility and precision in maneuvering.
• All shock absorbers are equipped with CDC Valves, allowing for 10 settings of compression damping adjustment, ranging from soft to hard.
• Crafted from 6061 aircraft-grade aluminum, our components are CNC machined for precision and durability.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts ensure long-lasting performance in various conditions.
• ICON-engineered coil springs offer reliable support and responsiveness to the vehicle's weight and movement.
• FK Rod End bearings are incorporated for extended longevity and minimal deflection, ensuring smooth and stable suspension operation.
• Tubular rear lower links enhance rear-end articulation and permit pinion angle adjustment for improved handling.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts deliver heightened performance and a balanced tune when paired with coilovers.
