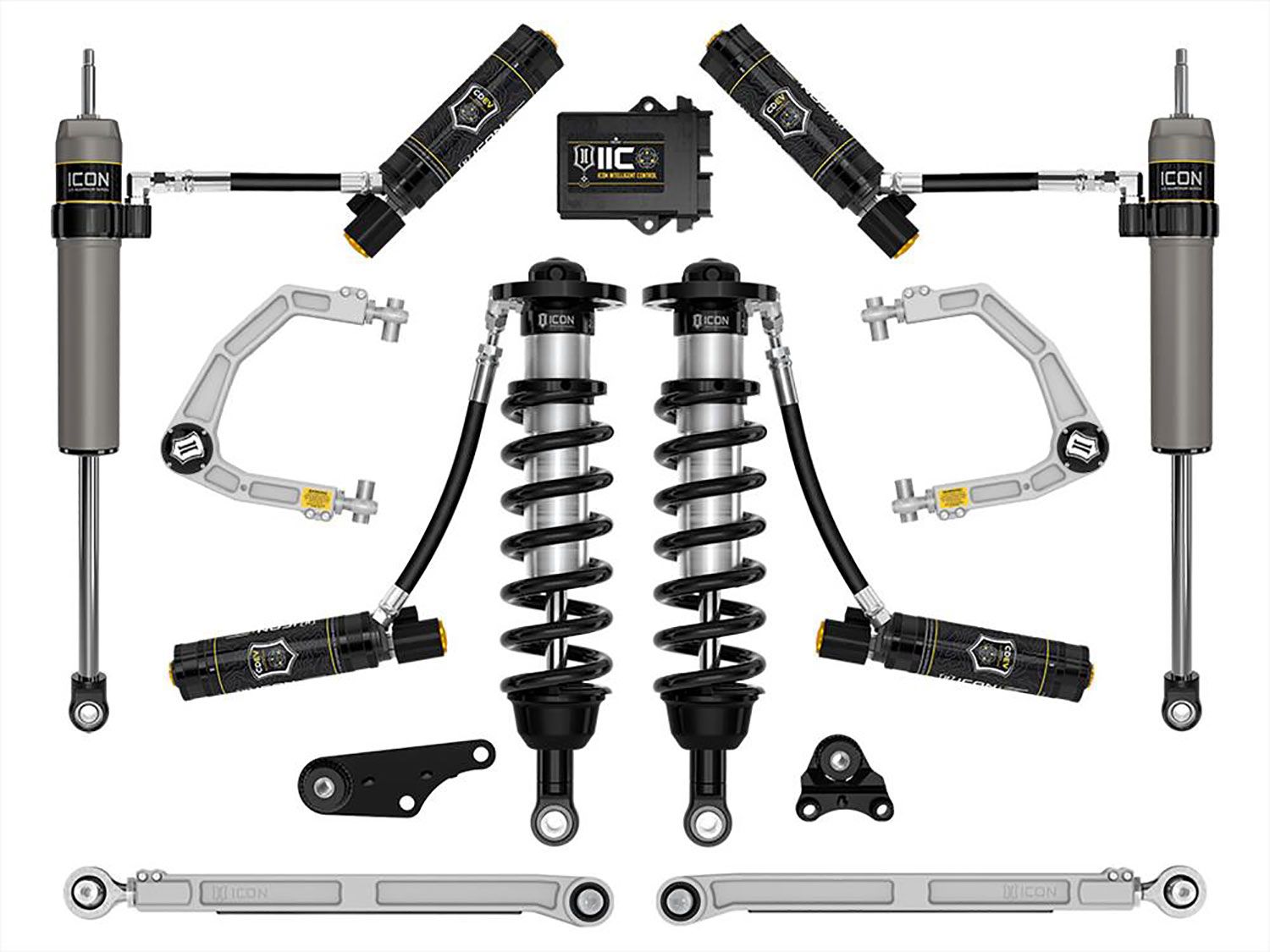

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms) by ICON Vehicle Dynamics - Stage 10

Elevate your driving experience with the K53300 ICON Vehicle Dynamics Toyota Tacoma Suspension System. Crafted for uncompromising performance, this Stage 10 setup is tailored for enthusiasts who demand the best, whether on the road or off it. Engineered to enhance wheel travel and damping, this system ensures exceptional vehicle control and ride quality. E

very detail is optimized for superior handling across all terrains, featuring vehicle-specific tuned 2.5 Series coil-over shocks equipped with CDEV remote reservoirs and ICON-engineered coil springs. The remote reservoirs increase shock oil volume and heat dissipation, preventing overheating and damper fade during intense usage. Plus, with ICON Intelligent Control (IIC), the Compression Damping Electronic Valve (CDEV) adjusts instantly to terrain changes, offering a seamless driving experience. Control it wirelessly via the IIC app on your phone, and once set up, it operates autonomously. Height adjustable from 1.25-3”, these coil-overs allow for larger wheel and tire combinations, while front differential drop brackets and specific coilover lengths maximize suspension travel and prevent CV binding. Polyurethane differential mounting bushings replace OE bushings, reducing differential movement under load.

The ICON billet aluminum upper control arm kit optimizes front-end geometry, enhancing camber and caster adjustment and improving suspension component clearance. Replacing the OE ball joint with the ICON Delta Joint PRO enables full suspension travel without binding.

ICON billet rear lower links offer on-vehicle adjustability for the rear, while dual-durometer greaseless bushings and FK rod ends provide articulation while dampening road noise and vibrations.

ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks ensure balanced front-to-rear performance.

Features and Benefits:

• Enhanced Damping and Control: Equipped with 2.5 Series front coilovers featuring remote reservoirs, providing superior damping and vehicle control, while also improving shock cooling.
• Improved Ride Quality and Wheel Travel: Experience increased wheel travel and enhanced ride quality compared to stock suspension systems.
• Customizable Compression Damping: ICON's CDE Valve technology allows for in-vehicle adjustment of compression damping settings, with active adjustment through the ICON Intelligent Control (IIC) system.
• Real-Time Damping Adjustment: The ICON Intelligent Control (IIC) system utilizes onboard sensors to monitor G-forces and vehicle chassis movement, enabling near-instantaneous compression damping changes based on user-defined settings.
• Optimized Front Differential Drop: Front differential drop provides better maximum operating angles for CV joints and maximizes available wheel travel on 4WD models.
• Adjustable Lift Heights: Adjustable coilovers offer lift heights ranging from 1.25 to 3 inches over stock levels.
• Durable Billet Aluminum UCAs: Billet aluminum Upper Control Arms (UCAs) ensure added strength, durability, and on-vehicle caster/camber adjustment for optimal drivability.
• Advanced Articulation Technology: UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro, providing 90 degrees of total articulation.
• High-Quality Construction: Constructed from 6061 aircraft-grade aluminum, with CNC machined components for durability and performance.
• Corrosion Resistance: Corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts ensure longevity and performance in various conditions.
• Precision Engineering: ICON engineered coil springs and FK Rod End bearings ensure extended longevity and minimal deflection.
• Improved Rear End Articulation: Billet rear lower links enhance rear end articulation and allow for on-vehicle pinion angle adjustment.
• Balanced Performance: 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and a balanced tune when paired with coilovers.
