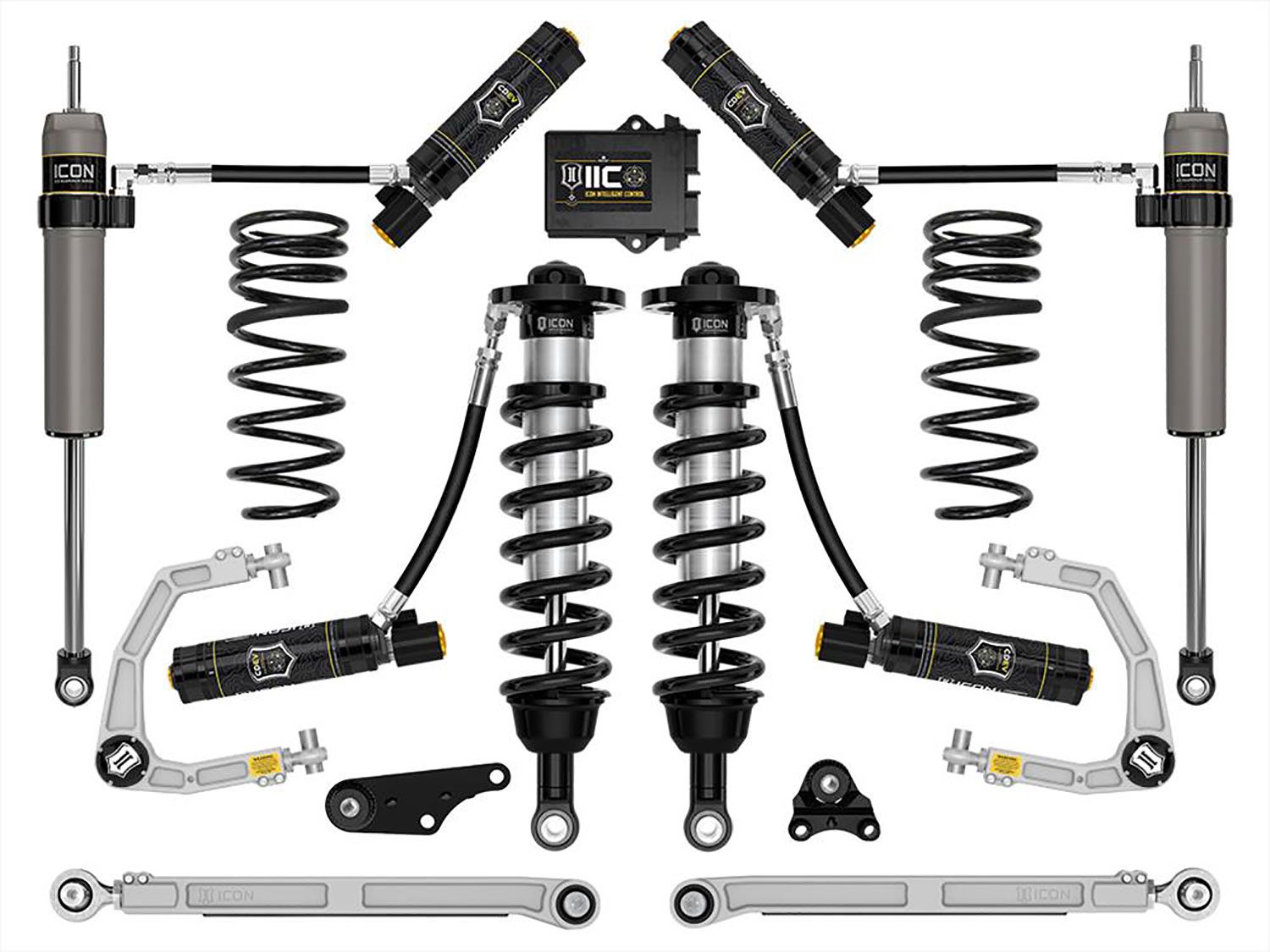

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 10

Designed for serious drivers seeking maximum performance, ICON Vehicle Dynamics introduces the K53300S Toyota Tacoma suspension system. Engineered to elevate both on- and off-road experiences, ICON's Stage 10 system prioritizes increased wheel travel and damping ability for unparalleled vehicle control and ride quality.

This system's heart is vehicle-specific tuned 2.5 Series coil-over shocks equipped with CDEV remote reservoirs and ICON-engineered coil springs. These components provide superior vehicle "feel" across the entire range of travel, while remote reservoirs ensure optimal shock oil volume and heat dissipation, preventing damper fade under rigorous conditions. With ICON Intelligent Control (IIC), the system dynamically adjusts compression damping via the Compression Damping Electronic Valve (CDEV) at each shock, allowing drivers to focus on the road ahead. Controlled wirelessly through the IIC app, this system offers seamless operation once configured. These coilovers are height adjustable from 1.25 to 3" and accommodate larger wheel and tire combinations, enhancing aesthetics and performance. Front differential drop brackets and specifically designed coilover lengths maximize front suspension travel while preventing CV bind. Furthermore, polyurethane differential mounting bushings replace OE bushings, reducing differential movement under load.

The included ICON billet aluminum upper control arm kit corrects front-end geometry enhances on-vehicle camber and caster adjustment and improves suspension component clearance. This kit features the all-new ICON Delta Joint PRO, allowing total suspension travel without binding.

For the rear, triple-rate coils offer softer droop and ride rates with a firmer overload rate, ensuring comfort on-road, excellent bottoming resistance, and superior off-road performance.

Billet rear lower links feature on-vehicle adjustability and employ dual-durometer greaseless bushings and massive FK rod ends for optimal articulation and damping.

Completing the system are ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones, providing improved shock damping ability and vehicle-specific valving for balanced performance.

Features and Benefits:

• Front Coilovers: The Kit has 2.5 Series front coil-overs featuring remote reservoirs for superior damping, vehicle control, and improved shock cooling.
• Enhanced Performance: Experience increased wheel travel and improved ride quality over stock suspension systems.
• Customizable Damping: Utilizing ICON's CDE Valve technology, compression damping settings can be adjusted in-vehicle, with active adjustment via the ICON Intelligent Control (IIC).
• Real-Time Adjustment: The ICON Intelligent Control (IIC) system monitors G-forces and vehicle chassis movement, enabling near-instantaneous compression damping changes based on user-defined settings.
• Front Differential Drop: Front differential drop provides better maximum operating angles for CV joints and maximizes available wheel travel on 4WD models.
• Adjustable Lift Heights: Adjustable coilovers offer 1.25-3 inches of front lift height over stock levels.
• Billet Aluminum UCAs: Billet aluminum Upper Control Arms (UCAs) ensure added strength, durability, and on-vehicle caster/camber adjustment for optimal drivability.
• Advanced Articulation Technology: UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro, providing 90 degrees of total articulation.
• Improved Rear Suspension: Triple-rate rear coil springs improve performance and ride quality while offering 0.5 inches of rear lift.
• High-Quality Construction: Constructed from 6061 aircraft-grade aluminum, with CNC machined components, ensuring durability and performance.
• Corrosion Resistance: Corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts ensure longevity and performance in various conditions.
• Precision Engineering: ICON engineered front and rear coil springs and FK Rod End bearings ensure extended longevity and minimal deflection.
• Enhanced Rear End Articulation: Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment.
• Increased Performance: 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and a balanced tune when paired with coilovers.
