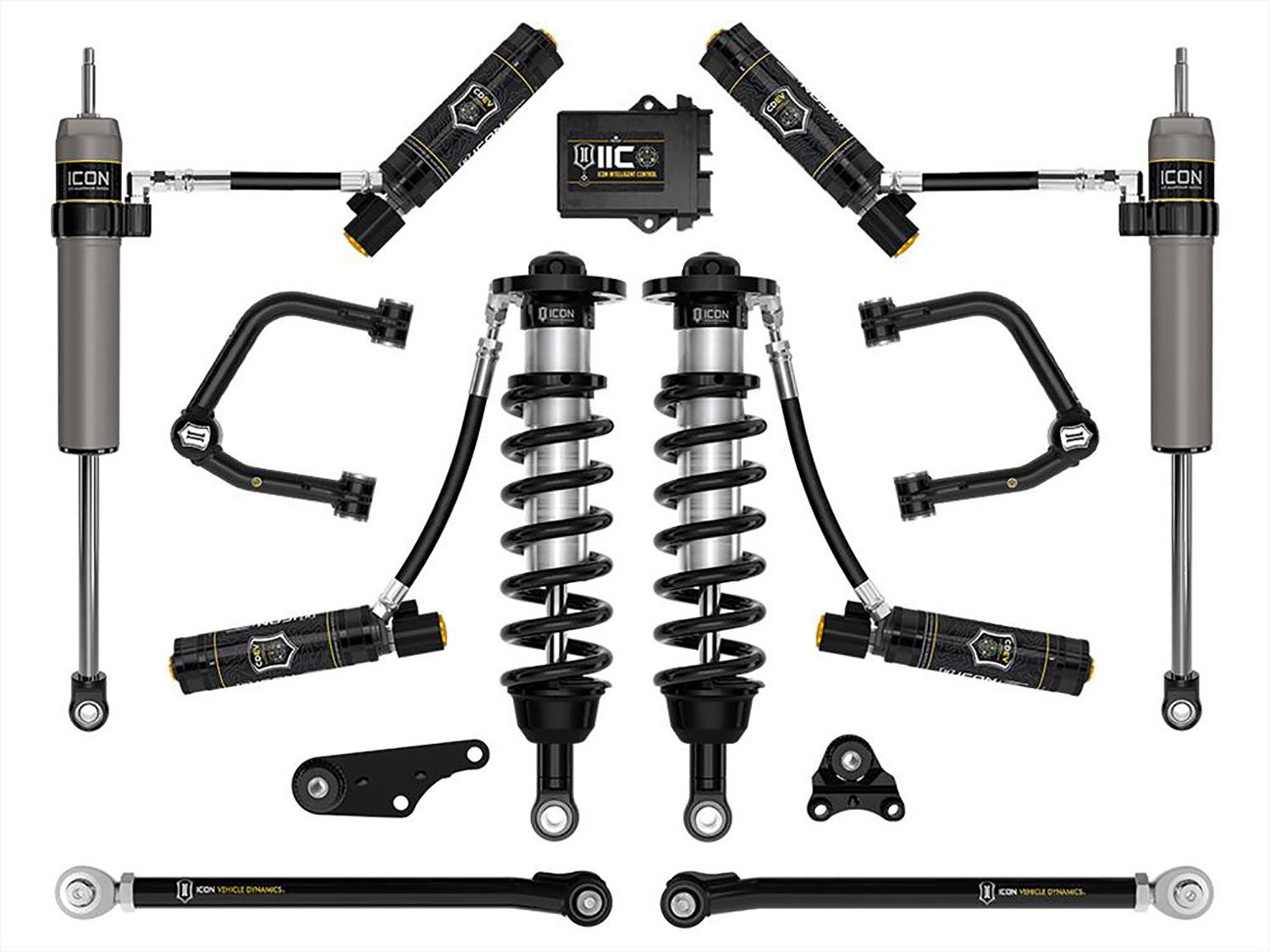

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms) by ICON Vehicle Dynamics - Stage 10

Crafted with the serious driver in mind, ICON Vehicle Dynamics presents the K53300T Toyota Tacoma suspension systems for maximum performance. ICON's engineers prioritize increasing wheel travel and damping ability to ensure exceptional vehicle control and ride quality, whether on rugged terrain or smooth highways.

The Stage 10 system features vehicle-specific tuned 2.5 Series coil-over shocks equipped with CDEV remote reservoirs and ICON-engineered coil springs. These components offer a superior vehicle "feel" throughout the range of travel. Remote reservoirs significantly boost shock oil volume and heat dissipation, guarding against overheating and cavitation during rigorous use and preventing damper fade. With ICON Intelligent Control (IIC), drivers can seamlessly navigate diverse terrains as the system reads and adjusts to the terrain via the Compression Damping Electronic Valve (CDEV) at each shock. Control the system wirelessly through the IIC app on your phone, enjoying hassle-free operation once configured.

Additionally, these coil-overs offer height adjustability from 1.25-3 inches of front lift height over stock, accommodating larger wheel and tire combinations. Front differential drop brackets and specially designed coilover lengths maximize front suspension travel while preventing CV bind. Furthermore, polyurethane differential mounting bushings replace OE bushings, limiting differential movement under load.

The ICON tubular upper control arm kit corrects front-end geometry, enhances caster, and improves suspension component clearance. Replacing the OE ball joint with the serviceable and rebuildable ICON Delta Joint PRO allows full suspension travel without binding.

For the rear, ICON tubular rear lower links provide optimal articulation, with dual-durometer greaseless bushings and massive FK rod end damping road noise and vibrations.

ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones offer improved shock damping ability, featuring vehicle-specific valving for balanced performance from front to rear.

Features and Benefits:

• Front Coilovers: It has 2.5 Series front coilovers featuring remote reservoirs for superior damping, vehicle control, and improved shock cooling.
• Increased Performance: Experience increased wheel travel and improved ride quality over stock suspension systems.
• Customizable Damping: ICON's CDE Valve technology allows in-vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC).
• Real-Time Adjustment: The ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and vehicle chassis movement, enabling near-instantaneous compression damping changes based on user-defined settings.
• Front Differential Drop: Provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models.
• Adjustable Lift Heights: Coil-overs provide 1.25-3 inches of front lift height over stock levels.
• Tubular Upper Control Arms (UCAs): Tubular UCAs offer added strength, durability, and alignment correction for better drivability.
• Advanced Articulation Technology: UCAs feature the patented Delta Joint Pro (U.S. Pat. 10,731,700), which provides 90 degrees of total articulation.
• High-Quality Construction: Constructed from 6061 aircraft-grade aluminum, with CNC machined components, ensuring durability and performance.
• Corrosion Resistance: Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts ensure longevity and performance in various conditions.
• Precision Engineering: ICON-engineered coil springs and FK Rod End bearings ensure extended longevity and minimal deflection.
• Tubular Rear Lower Links: Tubular rear lower links improve rear-end articulation and allow for pinion angle adjustment.
• Increased Performance: 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts improve performance and a balanced tune when paired with coilovers.
