1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 10

The K53300TS Toyota Tacoma suspension systems by ICON Vehicle Dynamics are meticulously crafted for maximum performance, catering to the demands of serious drivers. With a paramount focus on enhancing wheel travel and damping ability, ICON engineers ensure exceptional vehicle control and ride quality across both on and off-road terrains.

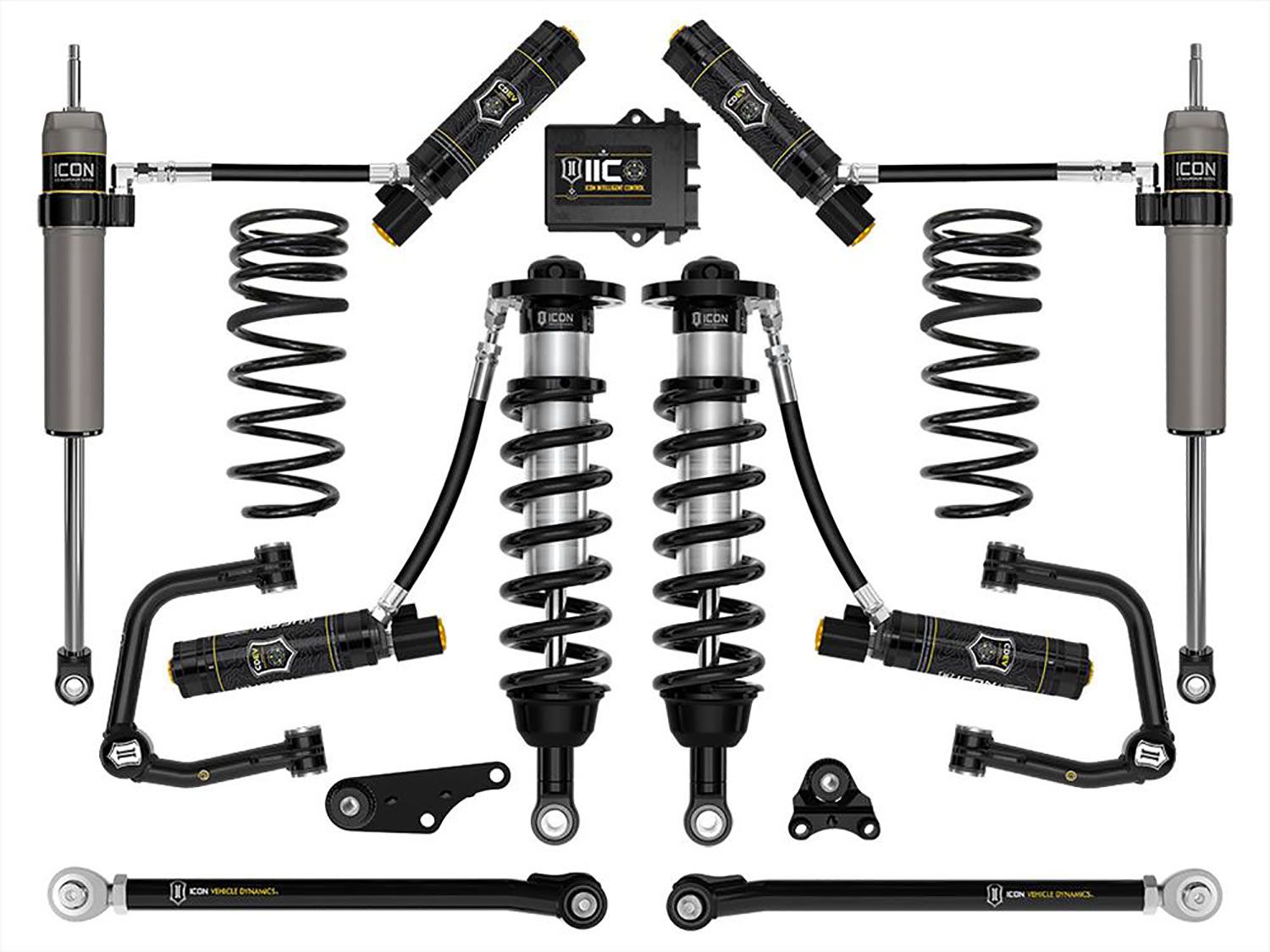

The Stage 10 system includes vehicle-specific tuned 2.5 Series coil-over shocks featuring CDEV-equipped remote reservoirs and ICON-engineered coil springs. These components guarantee a superior vehicle "feel" throughout the range of travel. The remote reservoirs play a pivotal role in increasing shock oil volume and heat dissipation surface area, effectively resisting overheating and cavitation under rigorous conditions, thus averting damper fade. Benefit from the seamless integration of ICON Intelligent Control (IIC), which reads the terrain and executes near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each shock. Once configured, you can control the system wirelessly through the IIC app on your phone, offering hassle-free operation. Furthermore, these coil-overs are height adjustable, providing a lift range from 1.25 to 3 inches over stock levels, facilitating larger and more aggressive wheel and tire combinations.

Additionally, combining front differential drop brackets and specially designed coilover lengths ensures maximized front suspension travel while preventing CV bind. Furthermore, polyurethane differential mounting bushings replace the soft OE bushings, effectively limiting differential movement under load.

The ICON tubular upper control arm kit is engineered to enhance the overall performance of the new 2024 Toyota Tacoma, boasting corrected front-end geometry, additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO means full bump and droop travel of the front suspension while eliminating bind.

For the rear, the triple-rate coil design offers softer droop and ride rates with a firmer overload rate, ensuring unparalleled on-road comfort with excellent bottoming resistance and superior off-road performance. ICON tubular rear lower links are equipped with dual-durometer greaseless bushings at one end, and massive FK rod ends at the other, delivering optimal articulation while isolating and damping road noise and vibrations.

Completing the package are ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones, enhancing shock damping ability and utilizing vehicle-specific valving to balance truck performance from front to rear.

Features and Benefits:

• 2.5 Series front coil-overs with remote reservoirs for superior damping and vehicle control, along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• ICON's CDE Valve technology allows for in-vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user-defined settings to make near-instantaneous compression damping changes actively
• Front differential drop provides a better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coil-overs provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple-rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• 6061 aircraft-grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON-engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• Tubular rear lower links improve rear-end articulation and allow for pinion angle adjustment
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coil-overs
