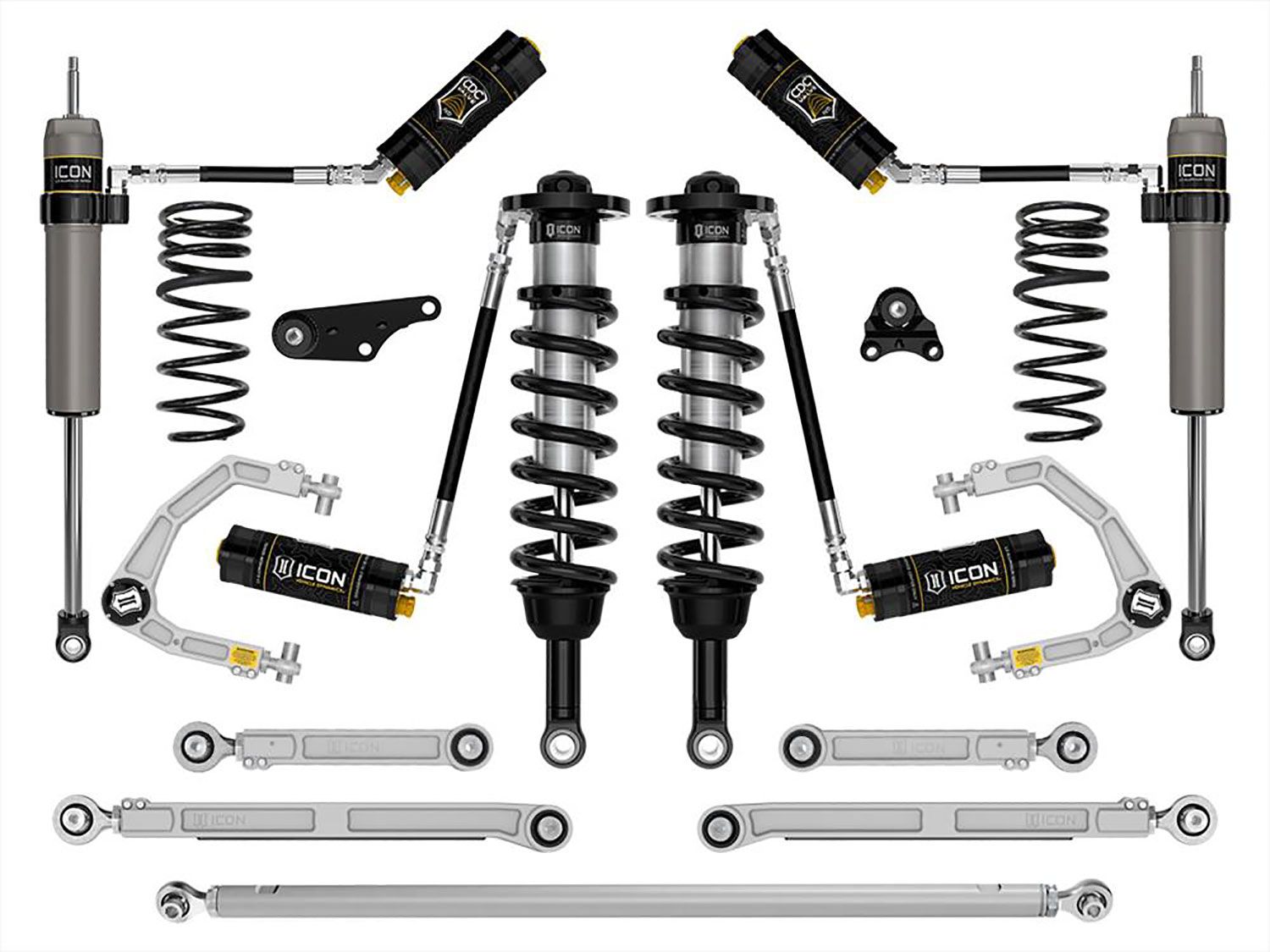

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 11

ICON Vehicle Dynamics' K53301 Toyota Tacoma suspension systems are meticulously crafted to deliver maximum performance, catering to the demands of discerning drivers. Engineered to enhance wheel travel and damping ability, ICON Stage 11 system ensures exceptional vehicle control and ride quality across diverse terrains.

This system includes vehicle-specific tuned 2.5 Series coil-over shocks featuring CDCV-equipped remote reservoirs and ICON-engineered coil springs, providing superior vehicle "feel" throughout the range of travel. These remote reservoirs significantly increase shock oil volume and heat dissipation surface area, effectively resisting overheating and cavitation under rigorous conditions, thus mitigating damper fade. The ICON CDC Valves offer externally adjustable settings, allowing precise control with 10 compression damping force ranges. Furthermore, these coil-overs offer height adjustability from 1.25 to 3 inches of front lift height over stock, facilitating larger and more aggressive wheel and tire combinations. Integrating front differential drop brackets and specially designed coilover lengths maximizes available front suspension travel while preventing CV bind. Polyurethane differential mounting bushings also replace soft OE bushings, limiting differential movement under load.

The included ICON billet aluminum upper control arm kit is engineered to enhance the overall performance of the Toyota Tacoma, correcting front-end geometry, increasing on-vehicle camber and caster adjustment, and improving suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO enables full bump and droop travel of the front suspension while eliminating bind.

For the rear suspension, the triple-rate coil design offers softer droop and ride rates with a firmer overload rate, ensuring unmatched on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear upper and lower links feature on-vehicle adjustability via the ICON double adjuster, employing dual-durometer greaseless bushings and massive FK rod ends for optimal articulation while isolating and damping road noise and vibrations.The ICON Billet Adjustable Rear Track Bar facilitates re-centering of the rear axle, with double adjuster rod end threads enabling easy "on-vehicle" fine adjustment of track bar length without requiring removal or disassembly.

Completing the package are ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones, offering improved shock damping ability and vehicle-specific valving to balance truck performance from front to rear.

Features and Benefits:

• 2.5 Series front coilovers with remote reservoirs ensure superior damping and vehicle control, enhancing shock cooling for optimal performance.
• Increased wheel travel and enhanced ride quality over stock configurations.
• Front differential drop enhances the maximum operating angle for CV joints, maximizing wheel travel, particularly on 4WD models.
• Adjustable coilovers offer a front lift height adjustment ranging from 1.25 to 3 inches over stock levels.
• Billet aluminum UCAs provide added strength, durability, and on-vehicle caster/camber adjustment, ensuring optimal drivability.
• UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation, enhancing suspension flexibility.
• All shock absorbers are equipped with CDC Valves, offering 10 settings of compression damping adjustment from soft to hard.
• Triple-rate rear coil springs improve performance and ride quality and provide a 0.5-inch rear lift.
• 6061 aircraft-grade aluminum CNC machined components ensure durability and precision.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts guarantee longevity and performance in varied conditions.
• ICON-engineered front and rear coil springs optimize suspension dynamics.
• FK Rod End bearings provide extended longevity and minimal deflection, enhancing overall performance.
• Billet rear upper and lower links improve rear-end articulation and allow on-vehicle pinion angle adjustment, enhancing suspension flexibility.
• The on-vehicle adjustable billet aluminum rear track bar effectively centers the rear axle while enhancing rear suspension performance.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased performance and a balanced tune when paired with coilovers.
