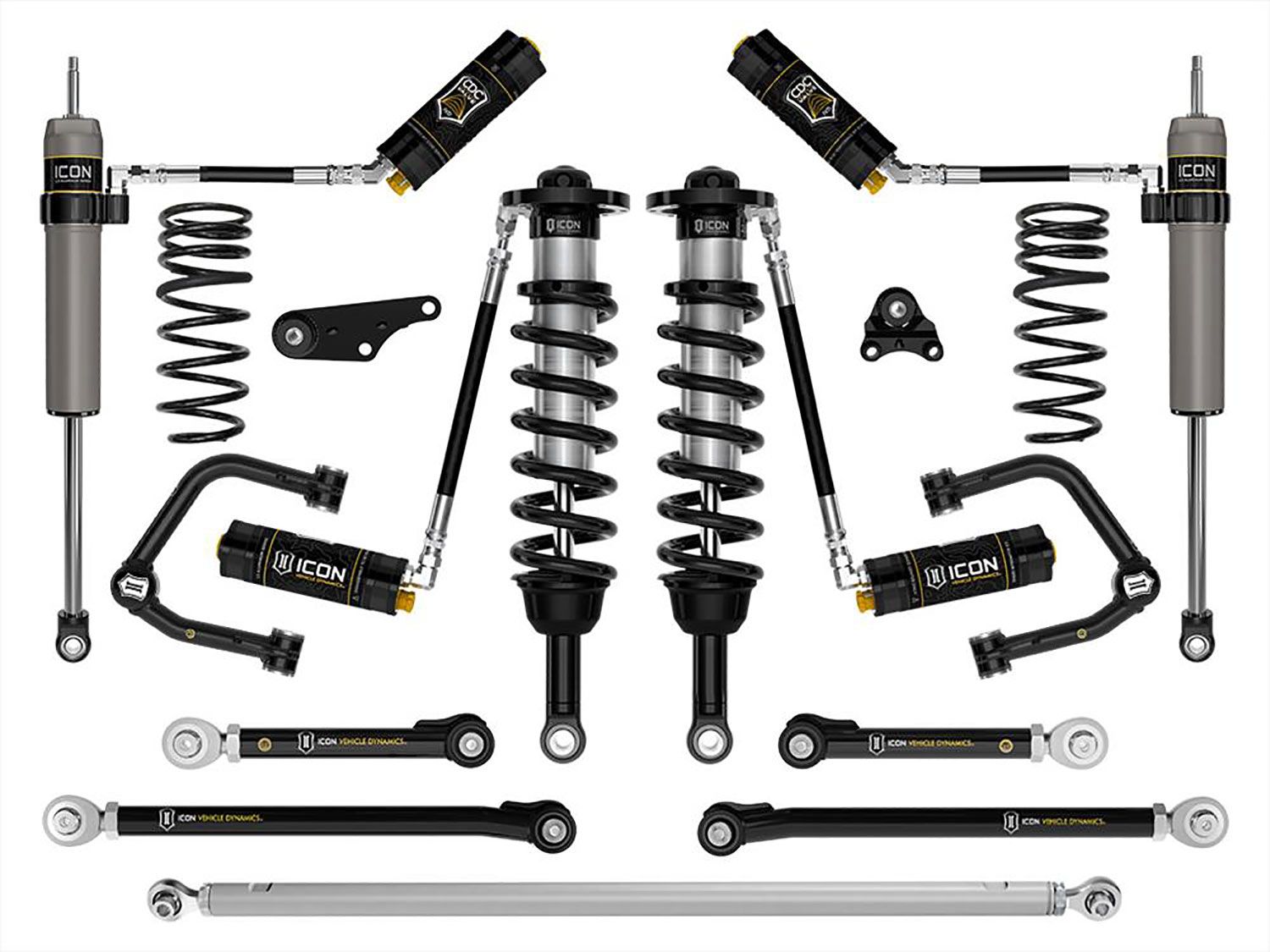

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 11

The Toyota Tacoma K53301T suspension system from ICON Vehicle Dynamics is meticulously crafted for peak performance, catering to the demands of serious drivers. With a core focus on enhancing wheel travel and damping ability, these systems promise exceptional vehicle control and ride quality across all terrains.

At the heart of the Stage 11 system are the vehicle-specific tuned 2.5 Series coil-over shocks featuring CDCV-equipped remote reservoirs and ICON-engineered coil springs. These components are finely calibrated to deliver superior vehicle responsiveness and comfort throughout the full range of motion. Enhanced shock oil volume and heat dissipation, facilitated by the remote reservoirs, ensure sustained performance under strenuous conditions, preventing damper fade. The system's CDC Valves offer external adjustability, providing ten compression damping force ranges for tailored driving experiences. Furthermore, the coil-overs boast height adjustability, allowing for a front lift height ranging from 1.25 to 3 inches over stock levels, accommodating larger wheel and tire combinations. Integrated front differential drop brackets and specially designed coilover lengths maximize front suspension travel while preventing CV bind, ensuring optimal performance and durability. Polyurethane differential mounting bushings also replace OE bushings, minimizing differential movement under load for enhanced stability.

The included tubular upper control arm kit rectifies front-end geometry, incorporating additional caster and improving suspension component clearance. Replacing the OE ball joint with the ICON Delta Joint PRO enables full bump and droop travel, eliminating binding for enhanced maneuverability.

The rear triple-rate coil design ensures a balanced blend of comfort and performance, offering softer droop and ride rates with a firmer overload rate. Tubular rear upper and lower links feature dual-durometer greaseless bushings and massive FK rod ends, facilitating free articulation while dampening road noise and vibrations. The system is completed by the ICON Billet Adjustable Rear Track Bar, which re-centers the rear axle for improved stability. Double adjuster, rod end threads, enable easy "on-vehicle" fine adjustment of track bar length, eliminating the need for removal or disassembly.

ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones deliver enhanced shock damping ability and balanced performance from front to rear, ensuring a dynamic driving experience.

Features and Benefits:

• 2.5 Series front coilovers with remote reservoirs ensure superior damping, enhanced vehicle control, and improved shock cooling.
• Enjoy increased wheel travel and superior ride quality compared to stock suspension configurations.
• Front differential drop optimizes the operating angle for CV joints and maximizes wheel travel on 4WD models.
• Adjustable coilovers offer a front lift height ranging from 1.25 to 3 inches over stock levels.
• Tubular Upper Control Arms (UCAs) provide added strength, durability, and alignment correction for enhanced drivability.
• UCAs feature the patented Delta Joint Pro, offering 90 degrees of total articulation.
• All shock absorbers are equipped with CDC Valves, offering 10 settings for compression damping adjustment, ranging from soft to hard.
• Triple-rate rear coil springs enhance performance and ride quality while providing a 0.5-inch rear lift.
• Components are crafted from 6061 aircraft-grade aluminum using CNC machining for precision.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts ensure durability.
• ICON-engineered front and rear coil springs offer optimal performance and reliability.
• FK Rod End bearings provide extended longevity and minimal deflection.
• Tubular rear upper and lower links enhance rear-end articulation and allow for pinion angle adjustment.
• The on-vehicle adjustable billet aluminum rear track bar ensures proper centering of the rear axle and enhances rear suspension performance.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts deliver increased performance and a balanced tune when paired with coilovers.
