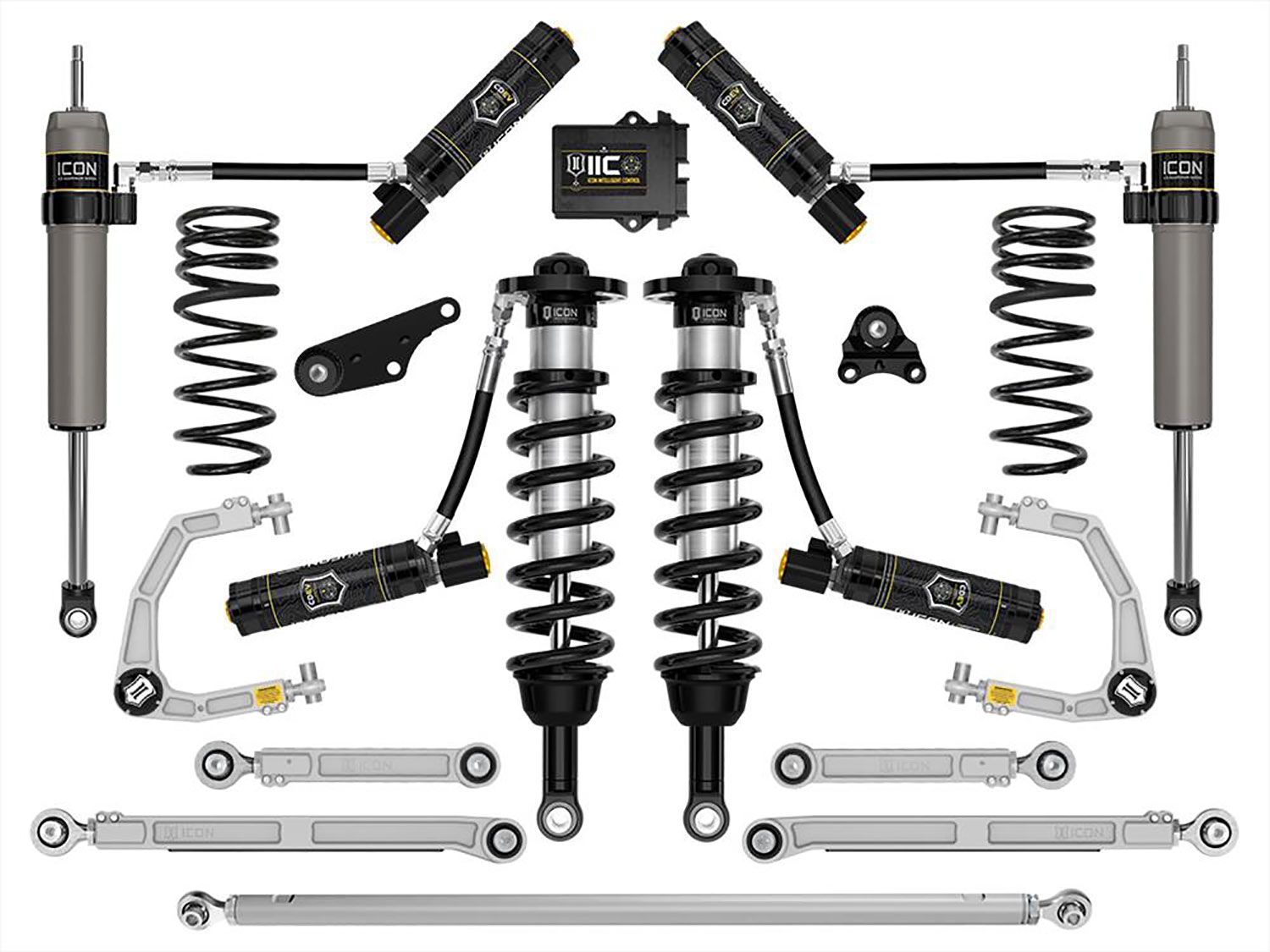

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Billet Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 13

ICON Vehicle Dynamics presents the K53303 Toyota Tacoma suspension system engineered for top-tier performance and serious drivers. The focus is maximizing wheel travel and damping ability to deliver exceptional control and ride quality across diverse terrain.

The Stage 13 system boasts vehicle-specific tuned 2.5 Series coil-over shocks equipped with CDEV remote reservoirs and ICON-engineered coil springs. These components offer a superior "feel" throughout the suspension's range of motion. Increased shock oil volume and enhanced heat dissipation from the remote reservoirs minimize overheating and cavitation even during rigorous use, preventing damper fade.

Experience unparalleled adaptability with the ICON Intelligent Control (IIC) system, allowing near-instant terrain adjustments through Compression Damping Electronic Valve (CDEV) technology. Wirelessly control the system via the IIC app, configuring it to your preferences for hassle-free operation. The coilovers are height-adjustable, providing a lift range of 1.25-3" over stock, accommodating larger wheel and tire combinations.

Front differential drop brackets and meticulously designed coilover lengths optimize front suspension travel while preventing CV bind. Furthermore, polyurethane differential mounting bushings replace OE bushings, minimizing differential movement under load.

Enhance the Tacoma's overall performance with the ICON billet aluminum upper control arm kit, offering corrected front-end geometry, increased camber and caster adjustment, and improved clearance. The ICON Delta Joint PRO replaces OE ball joints, enabling full suspension travel without binding.

Rear triple-rate coils deliver a balanced ride, combining softer droop and ride rates with a firmer overload rate for comfort and off-road capability. The billet rear upper and lower links feature on-vehicle adjustability, providing optimal articulation while dampening road noise and vibrations.

Achieve precise axle alignment with the ICON Billet Adjustable Rear Track Bar, facilitating easy on-vehicle adjustment without track bar removal. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks ensure improved shock damping ability, with vehicle-specific valving for balanced performance.

Features and Benefits:

• 2.5 Series front coilovers featuring remote reservoirs ensure superior damping, precise vehicle control, and enhanced shock cooling.
• Experience increased wheel travel and a smoother ride quality compared to stock suspension systems.
• Utilize ICON's innovative CDE Valve technology for convenient in-vehicle adjustment of compression damping settings. Seamlessly control these adjustments through the ICON Intelligent Control (IIC).
• The ICON Intelligent Control (IIC) system employs onboard sensors to monitor G-forces and chassis movement, allowing near-instantaneous compression damping changes based on user-defined settings.
• The front differential drop enhances the maximum operating angle for CV joints and optimizes wheel travel, which is particularly beneficial for 4WD models.
• Adjustable coilovers offer a front lift height range of 1.25-3 inches over stock, facilitating customization for various driving conditions.
• Billet aluminum Upper Control Arms (UCAs) ensure added strength, durability, and on-vehicle caster/camber adjustment for optimal drivability.
• UCAs feature the patented Delta Joint Pro, boasting 90 degrees of total articulation for enhanced performance.
• Triple-rate rear coil springs enhance performance and ride quality while providing a modest 0.5-inch rear lift.
• Crafted from 6061 aircraft-grade aluminum, CNC machined components ensure durability and precision.
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts offer long-lasting performance in diverse conditions.
• ICON-engineered front and rear coil springs optimize suspension performance for superior handling and comfort.
• FK Rod End bearings provide extended longevity and minimal deflection, enhancing overall suspension performance.
• Billet rear upper and lower links improve rear-end articulation, allowing on-vehicle pinion angle adjustment and ensuring optimal drivetrain alignment.
• The on-vehicle adjustable billet aluminum rear track bar effectively centers the rear axle while enhancing rear suspension performance.
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts deliver increased performance and a balanced tune when paired with coilovers.
