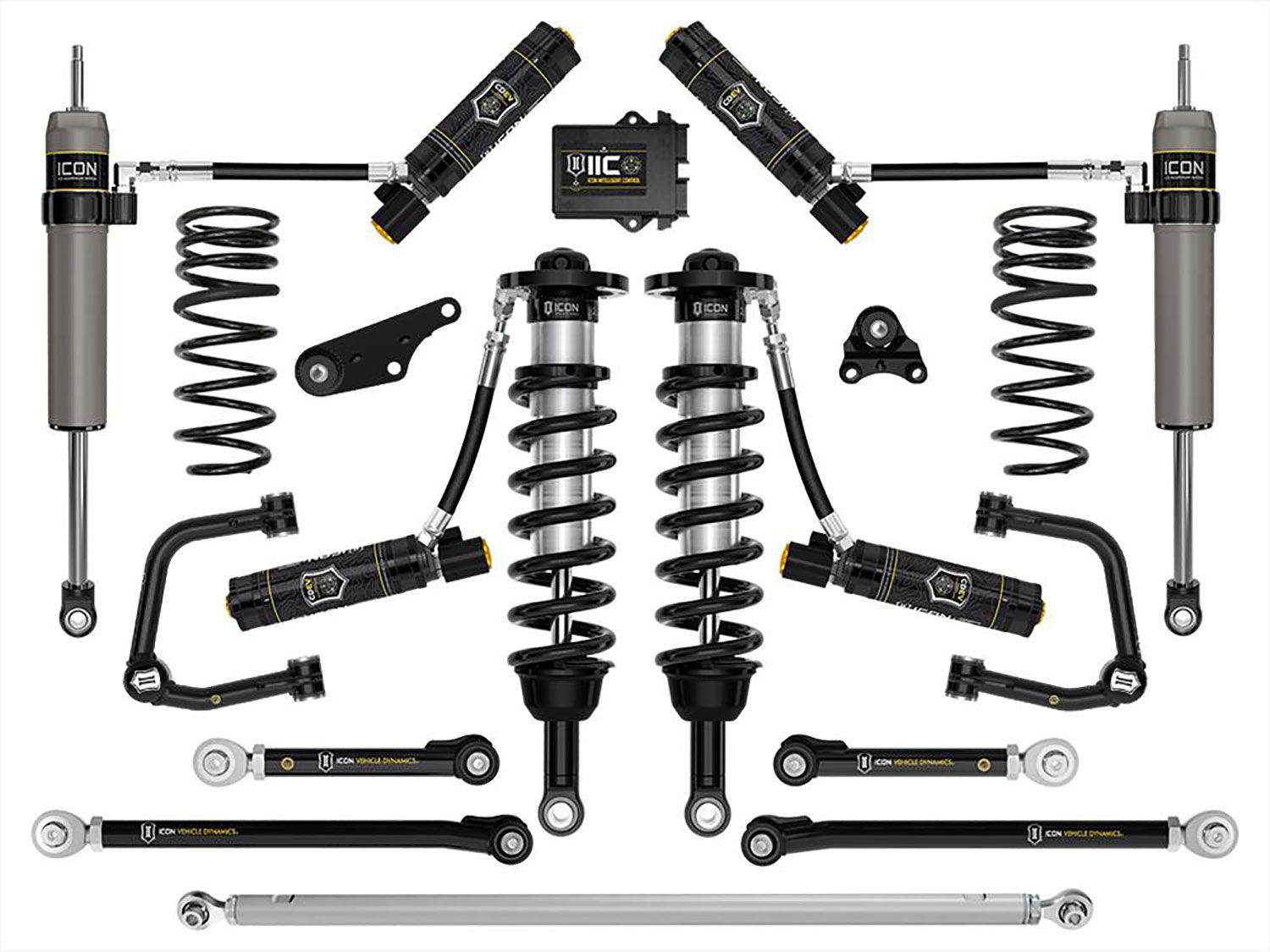

1.25-3" 2024-2026 Toyota Tacoma 4wd Coilover Lift Kit (w/Tubular Upper Control Arms & .5" Rear Coil Springs) by ICON Vehicle Dynamics - Stage 13

ICON Vehicle Dynamics presents the K53303T Toyota Tacoma suspension system, engineered for ultimate performance and serious drivers. ICON engineers prioritize enhancing wheel travel and damping ability to deliver exceptional vehicle control and ride quality across various terrains.

The Stage 13 system features vehicle-specific tuned 2.5 Series coil-over shocks equipped with CDEV remote reservoirs and ICON-engineered coil springs, ensuring superior vehicle response throughout the suspension's range of motion. The remote reservoirs significantly increase shock oil volume and heat dissipation surface area, preventing overheating and cavitation under rigorous conditions.

Take command of your ride with ICON Intelligent Control (IIC), allowing near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each shock. Wirelessly control the system through the IIC app on your phone, providing seamless customization without driver input. These coilovers offer height adjustability from 1.25-3" of front lift height over stock, enabling larger wheel and tire combinations. Combined with front differential drop brackets, ICON's coilover lengths maximize front suspension travel while preventing CV binding. Polyurethane differential mounting bushings also replace OE bushings, minimizing differential movement under load.

Upgrade your Tacoma's performance with tubular upper control arm kit, engineered for corrected front-end geometry, additional caster, and improved suspension component clearance. The ICON Delta Joint PRO replaces the OE ball joint, allowing full bump and droop travel while eliminating bind.

Rear triple-rate coil design offers a comfortable ride with exceptional off-road performance. Tubular rear upper and lower links feature dual-durometer greaseless bushings and massive FK rod ends, providing optimal articulation while dampening road noise and vibrations.

The ICON Billet Adjustable Rear Track Bar ensures proper rear axle alignment, with double adjuster rod end threads facilitating easy on-vehicle length adjustment.

2.5 Aluminum Series CDEV remote reservoir rear shocks offer improved damping ability and vehicle-specific valving for balanced performance from front to rear.

Features and Benefits:

• Enhanced Damping and Control: It is equipped with 2.5 Series front coil-overs featuring remote reservoirs, ensuring superior damping for precise vehicle control and improved shock cooling.
• Enhanced Ride Quality: Experience increased wheel travel and ride comfort compared to stock suspension setups.
• Advanced Compression Damping Adjustment: Utilizing ICON's CDE Valve technology, users can adjust compression damping settings in-vehicle. At the same time, the ICON Intelligent Control (IIC) allows for active adjustments based on onboard sensor data and user-defined preferences.
• Improved CV Joint Angle: The front differential drop enhances the maximum operating angle for CV joints, optimizing wheel travel, especially on 4WD models.
• Adjustable Lift Height: Adjustable coil-overs offer a lift height of 1.25-3" over stock levels, providing versatility for various driving conditions.
• Strengthened Suspension Components: Tubular Upper Control Arms (UCAs) ensure added strength, durability, and alignment correction for enhanced drivability.
• Enhanced Articulation: UCAs feature the patented Delta Joint Pro, offering 90 degrees of total articulation for improved off-road performance.
• Optimized Rear Suspension: Triple-rate rear coil springs enhance rear lift by 0.5" while improving performance and ride quality.
• High-Quality Construction: Made from 6061 aircraft-grade aluminum, CNC machined components ensure durability and performance.
• Corrosion Resistance: Coilover shock bodies are CAD plated for corrosion resistance, with 7/8" shafts for robustness.
• Tailored Coil Springs: ICON-engineered front and rear coil springs provide optimal performance and durability.
• Extended Longevity: FK Rod End bearings are utilized for extended lifespan and minimal deflection.
• Enhanced Rear-End Articulation: Tubular rear upper and lower links improve rear-end articulation and allow for pinion angle adjustment.
• Improved Axle Alignment: The on-vehicle adjustable billet aluminum rear track bar ensures proper centering of the rear axle while enhancing rear suspension performance.
• Performance Tuned Shocks: 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased performance and balanced tuning when paired with coilovers.
