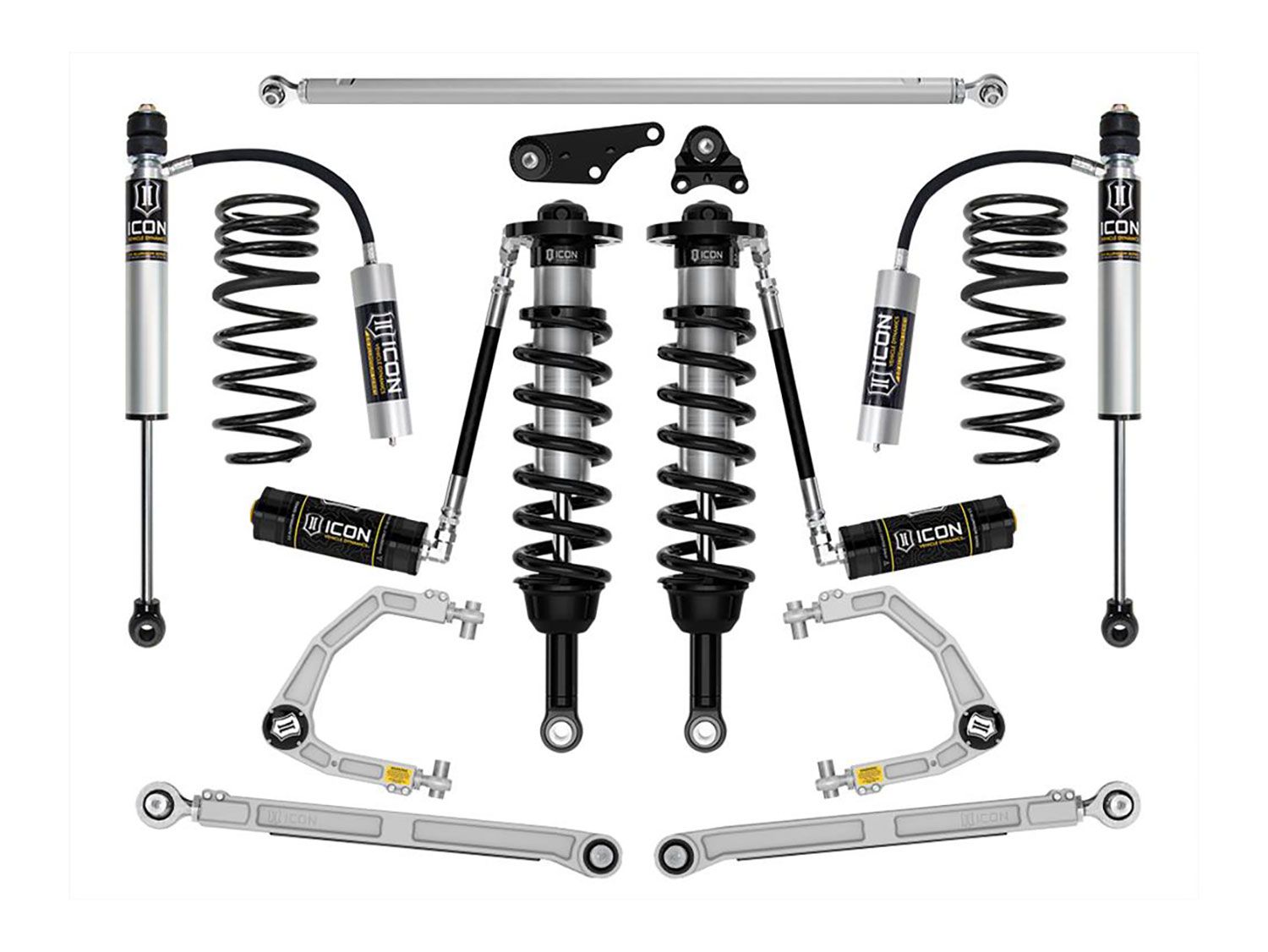

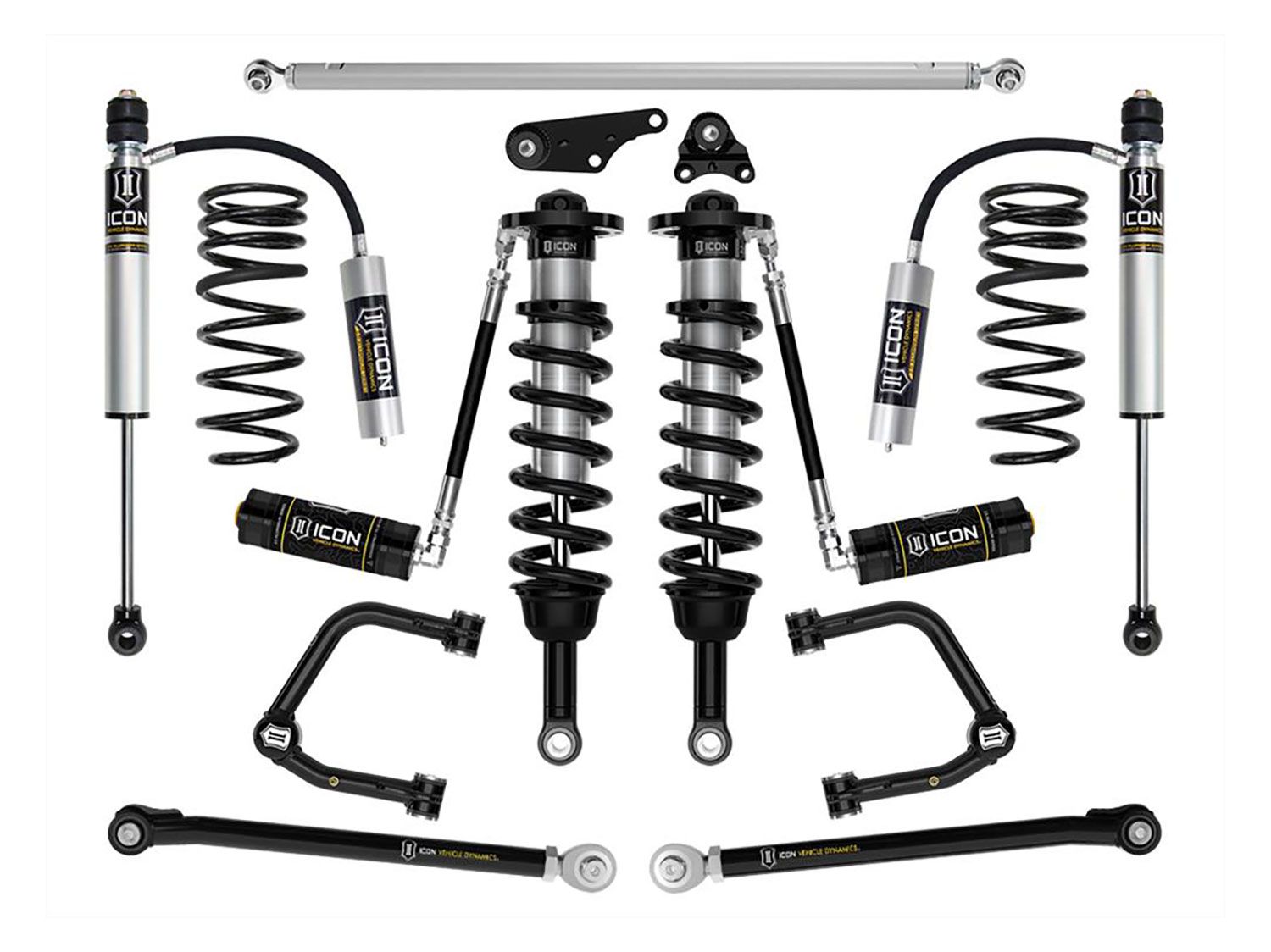

1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 4

Take your 2024 Toyota Land Cruiser 250 Series to the next level with the ICON Vehicle Dynamics K53364T Stage 4 Suspension System. Engineered for serious drivers, this system maximizes performance, ride quality, and control across all terrains.

The Stage 3 system features 2.5 Series Coilover shocks, specifically tuned for the Land Cruiser, with remote reservoirs for efficient cooling and ICON-engineered coil springs that deliver outstanding responsiveness throughout the suspension's range of travel. These coilovers are height adjustable from 1.25-3” of front lift, accommodating larger, more aggressive tires while optimizing performance. Including front differential drop brackets and precision-engineered coilover lengths ensures maximum suspension travel and prevents CV joint binding. Polyurethane differential bushings replace the soft factory bushings, reducing differential movement under load.

The kit includes ICON tubular steel or aluminum upper control arms, which enhance front-end geometry, add additional caster, and improve suspension component clearance. The rebuildable and serviceable ICON Delta Joint PRO replaces the OE ball joint, ensuring unrestricted bump and droop travel without binding. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

The system incorporates dual-rate coil springs for the rear suspension, combining a softer ride spring rate with a firmer overload rate for exceptional bottoming resistance and balanced on-road and off-road performance. A 2” rear lift height provides a level stance from front to rear.

The addition of the ICON Billet Adjustable Rear Track Bar ensures the rear axle is re-centered correctly, with a double-adjuster design allowing for easy, on-vehicle fine-tuning without disassembly. Tubular or Billet rear lower links improve rear-end articulation and allow for pinion angle adjustment (Billet links are on-vehicle adjustable). Vehicle-specific 2.0 Aluminum Series remote reservoir rear shocks enhance balanced front-to-rear performance.

Top Features and Benefits

• Designed for the 2024 Toyota Land Cruiser 250 Series to deliver superior performance and control.
• 2.5 Series Coilover shocks with remote reservoirs for efficient cooling and improved damping.
• ICON-engineered coil springs ensure responsive handling throughout the suspension's travel range.
• Adjustable coilovers provide a 1.25-3” front lift to accommodate larger, more aggressive tires.
• Front differential drop brackets and precision-engineered coilover lengths maximize suspension travel and prevent CV joint binding.
• Polyurethane differential bushings replace soft factory bushings to reduce differential movement under load.
• ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• Rebuildable and serviceable ICON Delta Joint PRO replaces the OE ball joint, allowing unrestricted bump and droop travel.
• Tubular or Billet rear lower links improve rear-end articulation and allow for pinion angle adjustment (Billet links are on-vehicle adjustable)
• Dual-rate rear coil springs provide a softer ride spring rate and firmer overload rate for balanced on-road comfort and off-road performance.
• 2” rear lift height ensures a level stance from front to rear.
• The ICON Billet Adjustable Rear Track Bar re-centers the rear axle and allows for the fine-tuning of track bar length without disassembly.
• Vehicle-specific 2.0 Aluminum Series remote reservoir rear shocks balance performance between the front and rear.
• It is ideal for drivers seeking versatile and capable suspension upgrades for on- and off-road adventures.

Parts Included

• 58791 (QTY: 1) | FRONT 2.5 VS RR COILOVER KIT
• 58452DJ or 58552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 56520R (QTY: 1) | DRIVER REAR 2.0 VS RR SHOCK
• 56522R (QTY: 1) | PASSENGER REAR 2.0 VS RR SHOCK
• 52752 (QTY: 1) | 2" DUAL RATE REAR COIL SPRING KIT
• 54202 (QTY: 1) | BILLET REAR ADJUSTABLE TRACK BAR
• 54003T or 54003  (QTY: 1) | TUBULAR or BILLET REAR LOWER LINK KIT
