1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 6

The ICON Vehicle Dynamics K53366 / K53366T Stage 6 Suspension System for the 2024 Toyota Land Cruiser 250 Series is built for drivers who demand exceptional performance and versatility. This advanced suspension system is designed to maximize wheel travel, damping ability, and overall ride quality, providing unparalleled control and comfort in both on-road and off-road environments.

The vehicle-specific tuned 2.5 Series Coilover shocks with remote reservoirs are at the heart of the system. These coilovers are height-adjustable from 1.25 to 3 inches, allowing for the installation of larger, more aggressive wheels and tires while maintaining optimal suspension performance. The remote reservoirs enhance cooling by increasing oil volume and heat dissipation, ensuring consistent performance and preventing damper fade under hard use. Front differential drop brackets and precisely engineered coilover lengths maximize front suspension travel and protect against CV joint binding, while polyurethane differential mounting bushings improve reliability by limiting movement under load.

The included ICON tubular steel or billet aluminum upper control arms enhance the Land Cruiser’s performance with corrected front-end geometry, additional caster, and improved clearance for suspension components. These control arms feature the innovative ICON Delta Joint PRO, a serviceable and rebuildable component that eliminates binding and allows for full suspension articulation during bump and droop travel. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

In the rear, dual-rate coil springs provide a balanced approach to ride quality and performance. A softer initial spring rate ensures smooth on-road handling, while a firmer overload rate delivers superior resistance to bottoming out during off-road challenges. A 2-inch rear lift ensures a level stance and consistent handling across all terrains. The system is completed with an ICON Billet Adjustable Rear Track Bar, which re-centers the rear axle and features a double-adjuster design for easy, on-vehicle adjustments without disassembly. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones offer enhanced damping performance and vehicle-specific tuning for balanced handling from front to rear.

Top Features and Benefits

• Designed to maximize wheel travel, damping ability, and ride quality for superior performance on and off the road.
• 2.5 Series coilover shocks with remote reservoirs provide enhanced cooling, increased oil volume, and heat dissipation to prevent damper fade.
• Height-adjustable coilovers (1.25 to 3 inches) accommodate larger, more aggressive wheels and tires while maintaining optimal suspension geometry.
• Front differential drop brackets and engineered coilover lengths maximize suspension travel and prevent CV joint binding.
• Polyurethane differential mounting bushings reduce movement under load, improving reliability and durability.
• ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• ICON Delta Joint PRO eliminates binding, allowing full suspension articulation during bump and droop travel; it is also serviceable and rebuildable.
• Dual-rate rear coil springs deliver a softer initial rate for smooth on-road handling and a firmer overload rate for superior off-road performance and bottoming resistance.
• 2-inch rear lift ensures a level stance and consistent handling across various terrains.
• ICON Billet Adjustable Rear Track Bar re-centers the rear axle and features a double-adjuster design for easy, on-vehicle adjustments without disassembly.
• 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide enhanced damping performance and balanced handling from front to rear.

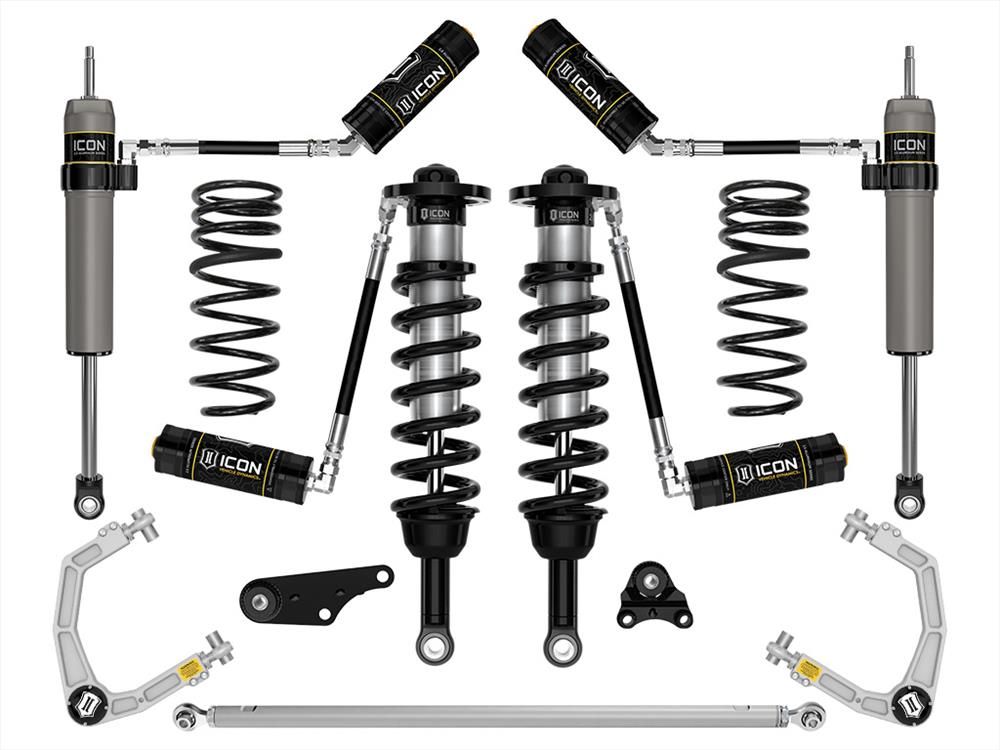

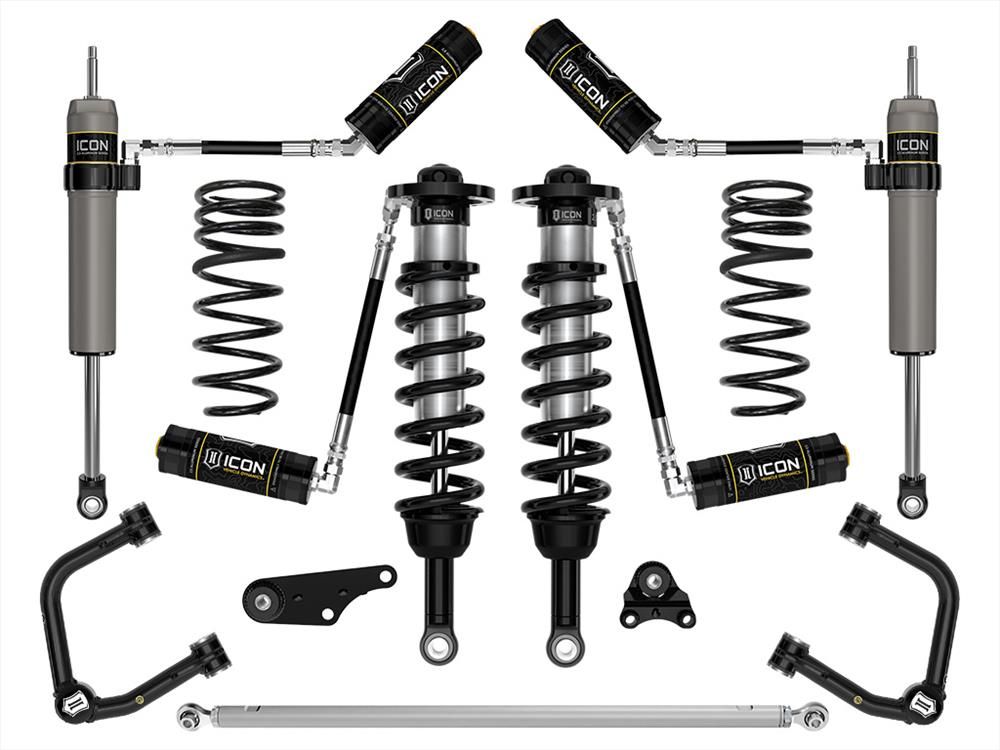

Parts Included

• 58791 (QTY: 1) | FRONT 2.5 VS RR COILOVER KIT
• 58452DJ or 58552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 57870P (QTY: 1) | REAR 2.5 VS RR SHOCK PAIR
• 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
• 54202 (QTY: 1) | BILLET REAR ADJ TRACK BAR
