1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 7

The ICON Vehicle Dynamics K53367 / K53367T Stage 7 Suspension System for the 2024 Toyota Land Cruiser 250 Series is designed to deliver unmatched performance and capability for serious drivers. This advanced system is engineered to maximize wheel travel, damping ability, and ride quality and provides exceptional control and comfort on any terrain.

At its core are the 2.5 Series coilover shocks, specifically tuned for the Land Cruiser. Featuring remote reservoirs, these shocks improve cooling by increasing oil volume and heat dissipation, ensuring consistent performance and resisting damper fade during demanding use. ICON-engineered coil springs enhance suspension feel and responsiveness, while the coilovers’ height adjustability (1.25 to 3 inches) supports larger, more aggressive wheels and tires. Front differential drop brackets and optimized coilover lengths maximize suspension travel and prevent CV joint binding. Polyurethane differential bushings replace the softer factory components, reducing movement under load for enhanced durability.

The system also includes ICON tubular steel or billet aluminum upper control arms, which optimize front-end geometry, provide additional caster, and increase suspension clearance. Equipped with the ICON Delta Joint PRO, a serviceable and rebuildable component, these control arms allow full bump and droop travel while eliminating binding and maximizing articulation. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

In the rear, dual-rate coil springs deliver a smooth and balanced ride. The softer initial spring rate ensures on-road comfort, while the firmer overload rate provides excellent resistance to bottoming out during off-road use. A 2-inch rear lift levels the vehicle's stance, while the Billet Adjustable Rear Track Bar re-centers the rear axle and allows for precise, on-vehicle adjustments without disassembly.

ICON tubular or billet rear lower links feature dual-durometer greaseless bushings at one end, and heavy-duty FK rod ends at the other, offering a perfect blend of articulation, durability, and vibration damping. The system is completed with 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones, delivering improved damping performance and vehicle-specific tuning for balanced handling from front to rear.

Top Features and Benefits

• Designed to maximize wheel travel, damping ability, and ride quality for superior performance on and off the road.
• 2.5 Series Coilover shocks with remote reservoirs provide enhanced cooling, increased oil volume, and heat dissipation to prevent damper fade.
• Height-adjustable coilovers (1.25 to 3 inches) accommodate larger, more aggressive wheels and tires while maintaining optimal suspension geometry.
• Front differential drop brackets and engineered coilover lengths maximize suspension travel and prevent CV joint binding.
• Polyurethane differential mounting bushings reduce movement under load, improving reliability and durability.
• ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• ICON Delta Joint PRO eliminates binding, allowing full suspension articulation during bump and droop travel; it is also serviceable and rebuildable.
• Dual-rate rear coil springs deliver a softer initial rate for smooth on-road handling and a firmer overload rate for superior off-road performance and bottoming resistance.
• 2-inch rear lift ensures a level stance and consistent handling across various terrains.
• ICON Billet Adjustable Rear Track Bar re-centers the rear axle and features a double-adjuster design for easy, on-vehicle adjustments without disassembly.
• 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide enhanced damping performance and balanced handling from front to rear.

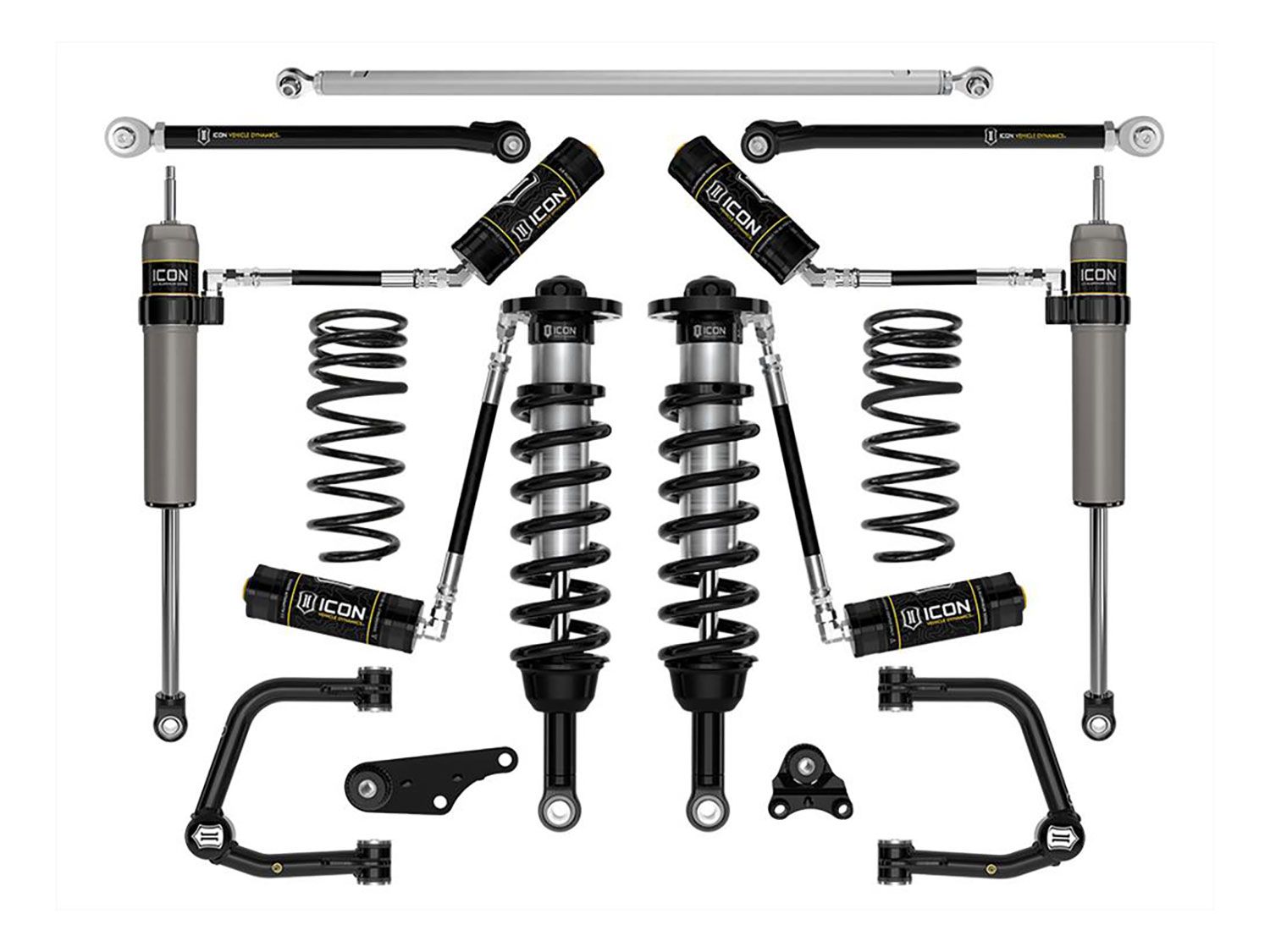

Parts Included

• 58791 (QTY: 1) | FRONT 2.5 VS RR COILOVER KIT
• 58452DJ OR 54552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 57870P (QTY: 1) | REAR 2.5 VS RR SHOCKS PAIR
• 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
• 54202 (QTY: 1) | BILLET REAR ADJ TRACK BAR
• 54003T or 54003 (QTY: 1) | TUBULAR OR BILLET REAR LOWER LINK KIT
