1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 9

The ICON Vehicle Dynamics K53369 / K53369T Stage 9 Suspension System for the Toyota Land Cruiser 250 Series is designed to deliver exceptional performance for serious drivers. By maximizing wheel travel and damping, this system enhances vehicle control and ride quality on paved roads and rugged trails.

This Stage 9 system features specially tuned 2.5 Series coil-over shocks equipped with CDCV (Compression Damping Control Valve) remote reservoirs alongside ICON-engineered coil springs, providing an unmatched "feel" throughout the suspension's range of motion. The remote reservoirs significantly enhance shock oil volume and heat dissipation, preventing overheating and cavitation even under rigorous use, thus mitigating damper fade. Featuring ICON CDC Valves and externally adjustable valves that restrict oil flow into the reservoir, these coil-overs offer ten compression-damping force ranges. Moreover, they are height adjustable, offering a lift range of 1.25-3 inches over stock, enabling larger and more aggressive wheel and tire combinations.

Front differential drop brackets and specially tuned coilover lengths maximize suspension travel while reducing CV bind. Polyurethane differential mounting bushings replace soft OE bushings, reducing differential movement under load for improved durability and performance.

The system also includes ICON tubular steel or billet aluminum upper control arms, which optimize front-end geometry, provide additional caster, and increase suspension clearance. Equipped with the ICON Delta Joint PRO, a serviceable and rebuildable component, these control arms allow full bump and droop travel while eliminating binding and maximizing articulation. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

At the rear, dual-rate coil springs balance on-road comfort with off-road durability, providing a softer primary spring rate and a firmer overload rate. The 2” rear lift creates a level stance and improves ground clearance. The billet adjustable rear track bar re-centers the axle and allows for easy adjustments without disassembly. Tubular rear upper and lower links feature dual-durometer bushings for reduced noise, and FK rod ends for excellent articulation and durability. The 2.5 Aluminum Series CDCV rear shocks with integrated bump zones deliver precise damping and are tuned for vehicle-specific balance, ensuring optimal control from front to rear.

Top Features and Benefits

• Designed for exceptional performance on both paved roads and rugged trails
• 2.5 Series Coilover shocks with CDCV-equipped remote reservoirs provide superior cooling and heat dissipation
• All shock absorbers are equipped with CDC Valves for 10 settings of compression damping adjustment, ranging from soft to hard.
• ICON-engineered coil springs deliver responsive handling and a consistent suspension feel.
• Coilovers are height adjustable from 1.25” to 3” to accommodate larger, more aggressive tires.
• ICON CDC Valves offer 10 levels of external compression damping adjustment for customized performance
• Front differential drop brackets and optimized coilover lengths maximize suspension travel while minimizing CV bind.
• Polyurethane differential mounting bushings replace soft OE bushings, reducing movement under load.
• ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• Serviceable and rebuildable ICON Delta Joint PRO eliminates binding and allows full suspension travel.
• Dual-rate rear coil springs balance on-road comfort with off-road durability and bottoming resistance.
• Provides 2” of rear lift for a level stance and improved ground clearance
• Billet adjustable rear track bar re-centers the axle with easy on-vehicle adjustments
• Tubular or Billet rear upper and lower links feature dual-durometer bushings for noise reduction, and FK rod ends for superior articulation
• 2.5 Aluminum Series CDCV rear shocks with integrated bump zones deliver precise damping and vehicle-specific tuning

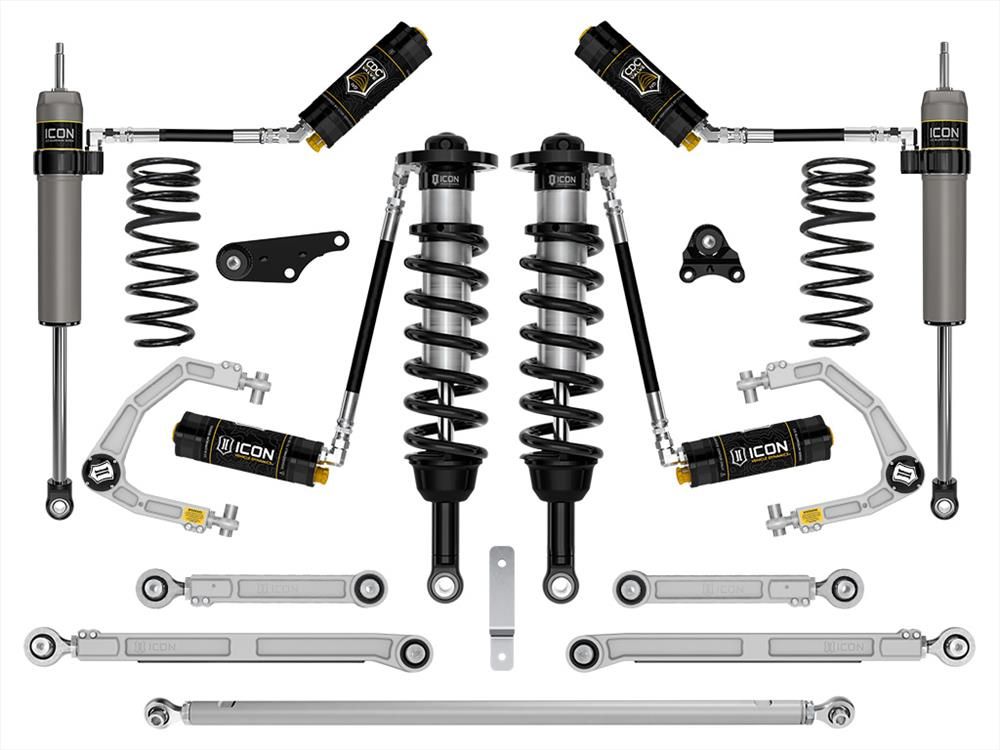

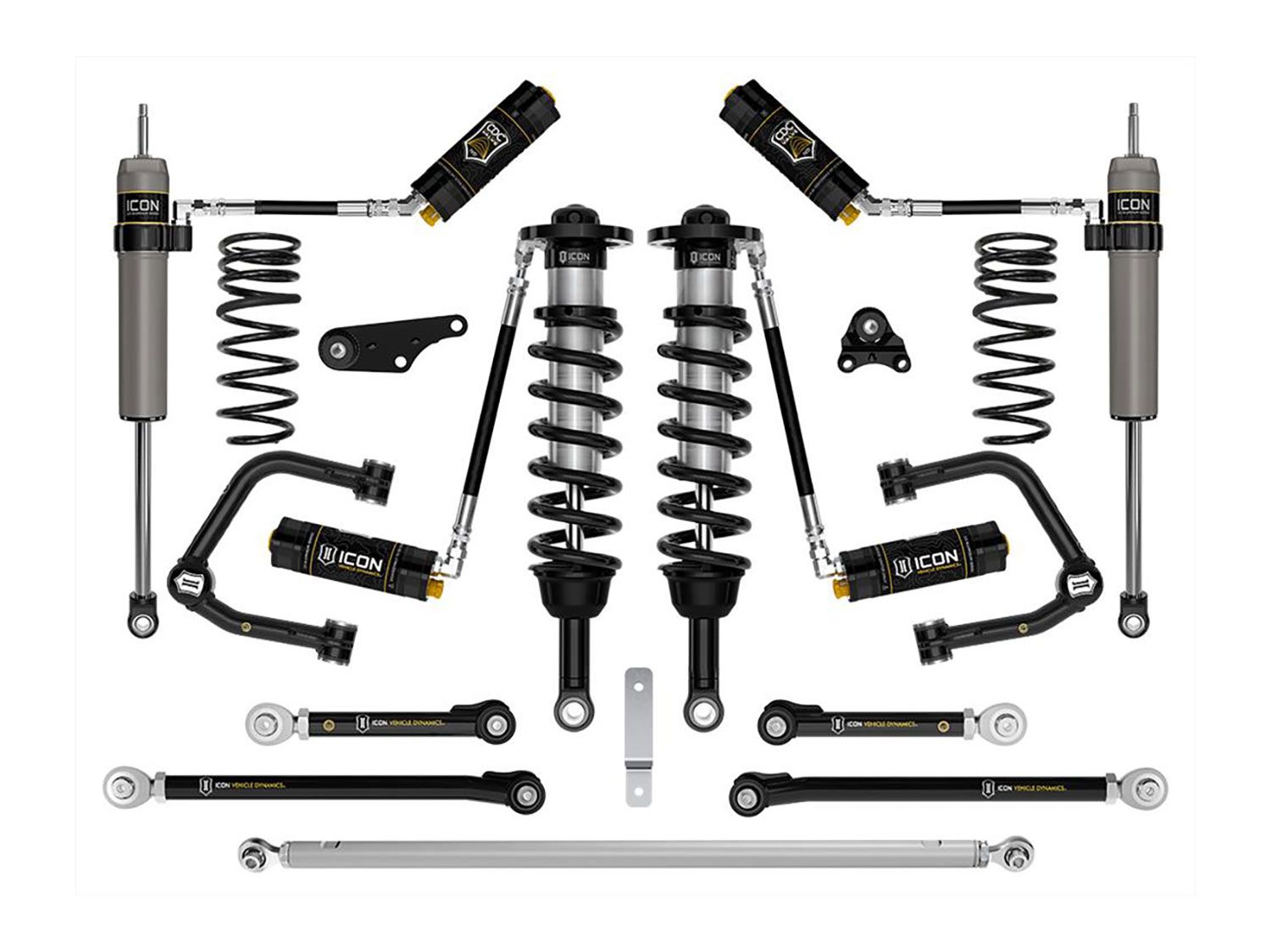

Parts Included

• 58791C (QTY: 1) | FRONT 2.5 VS RR CDCV COILOVER KIT
• 58452DJ or 58552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 57870CP (QTY: 1) | REAR 2.5 VS CDCV RR SHOCK PAIR
• 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
• 54202 (QTY: 1) | REAR ADJ TRACK BAR
• 54003T or 54003 (QTY: 1) | TUBULAR or BILLET REAR LOWER LINK KIT
• 54102T or 54102 (QTY: 1) | TUBULAR or BILLET REAR UPPER LINK KIT
• 55161 (QTY: 1) | REAR UPPER LINK SENSOR BRACKET KIT
