1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 10

The ICON Vehicle Dynamics K53370 / K53370T Stage 10 Suspension System for the 2024 Toyota Land Cruiser 250 Series is built for drivers seeking exceptional performance on and off the road. This system is designed to maximize wheel travel and damping and enhance vehicle control, ride quality, and versatility.

At the system's core are vehicle-specific 2.5 Series Coilover shocks with CDEV-equipped remote reservoirs, offering superior cooling and heat dissipation to withstand rugged use. ICON-engineered coil springs ensure a smooth and responsive ride throughout the suspension's range of travel. With height adjustability from 1.25” to 3”, the coilovers accommodate larger, more aggressive tires while maintaining optimal performance. The advanced ICON Intelligent Control (IIC) system uses compression-damping electronic valves (CDEV) to read terrain and make real-time adjustments at each shock, which are controlled wirelessly via the IIC app for a personalized driving experience.

Front differential drop brackets and specially tuned coilover lengths maximize suspension travel and prevent CV binding, while polyurethane differential mounting bushings reduce movement under load for improved durability.

The system also includes ICON tubular steel or billet aluminum upper control arms, which optimize front-end geometry, provide additional caster, and increase suspension clearance. Equipped with the ICON Delta Joint PRO, a serviceable and rebuildable component, these control arms allow full bump and droop travel while eliminating binding and maximizing articulation. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

At the rear, dual-rate coil springs deliver a softer ride height spring rate for on-road comfort combined with a firmer overload rate for off-road resilience and bottoming resistance. A 2” rear lift ensures a balanced, level stance. The billet adjustable rear track bar re-centers the axle, allowing on-vehicle adjustments without disassembly. ICON 2.5 Aluminum Series CDEV rear shocks with integrated bump zones and vehicle-specific valving provide consistent damping and balanced performance from front to rear. The Stage 10 Suspension System combines advanced technology, rugged durability, and refined performance, making it a top-tier upgrade for the 2024 Toyota Land Cruiser 250 Series. Whether navigating tough trails or cruising highways, this system enhances your vehicle's capabilities and driving experience.

Top Features and Benefits

• Designed for exceptional on- and off-road performance for the 2024 Toyota Land Cruiser 250 Series
• Vehicle-specific 2.5 Series coilover shocks with CDEV-equipped remote reservoirs provide superior cooling and heat dissipation
• ICON-engineered coil springs deliver a smooth and responsive ride throughout suspension travel
• Coilovers are height adjustable from 1.25” to 3” to accommodate larger, more aggressive tires
• ICON Intelligent Control (IIC) system with Compression Damping Electronic Valves (CDEV) makes real-time shock adjustments based on terrain
• Wirelessly controlled through the IIC app for a personalized and automated driving experience.
• Front differential drop brackets and specialized coilover lengths maximize suspension travel and prevent CV bin.d
• Polyurethane differential mounting bushings reduce movement under load for improved durability.
• ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• Rebuildable ICON Delta Joint PRO eliminates binding and allows full bump and droop suspension travel
• Dual-rate rear coil springs combine on-road comfort with off-road resilience and bottoming resistance
• Provides 2” of rear lift for a level stance and improved aesthetics
• Billet adjustable rear track bar re-centers the axle with convenient on-vehicle adjustments
• ICON 2.5 Aluminum Series CDEV rear shocks with integrated bump zones deliver consistent, vehicle-specific damping performance
• Perfect for enhancing the capabilities and driving experience of your Land Cruiser on tough trails or smooth highways

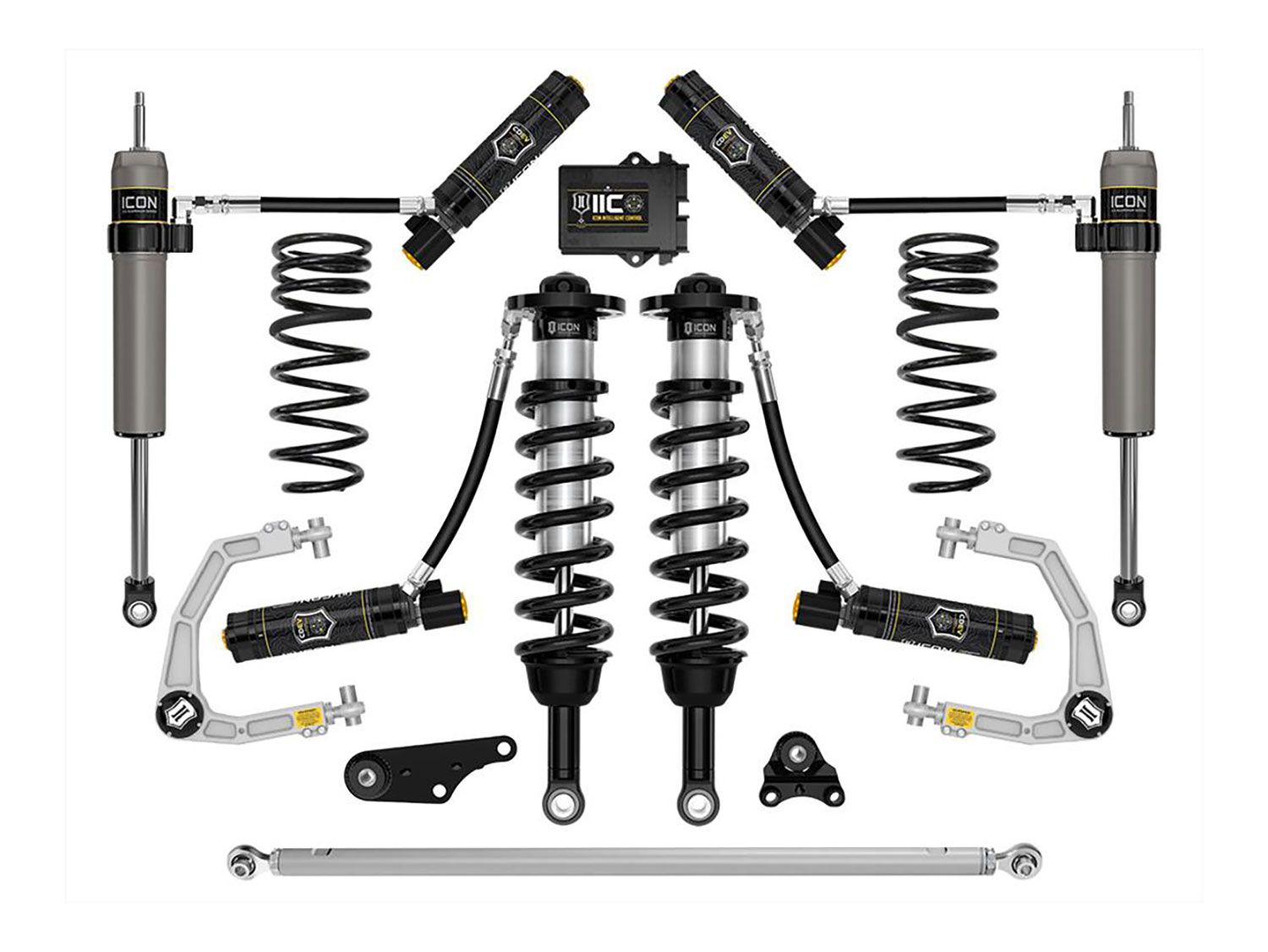

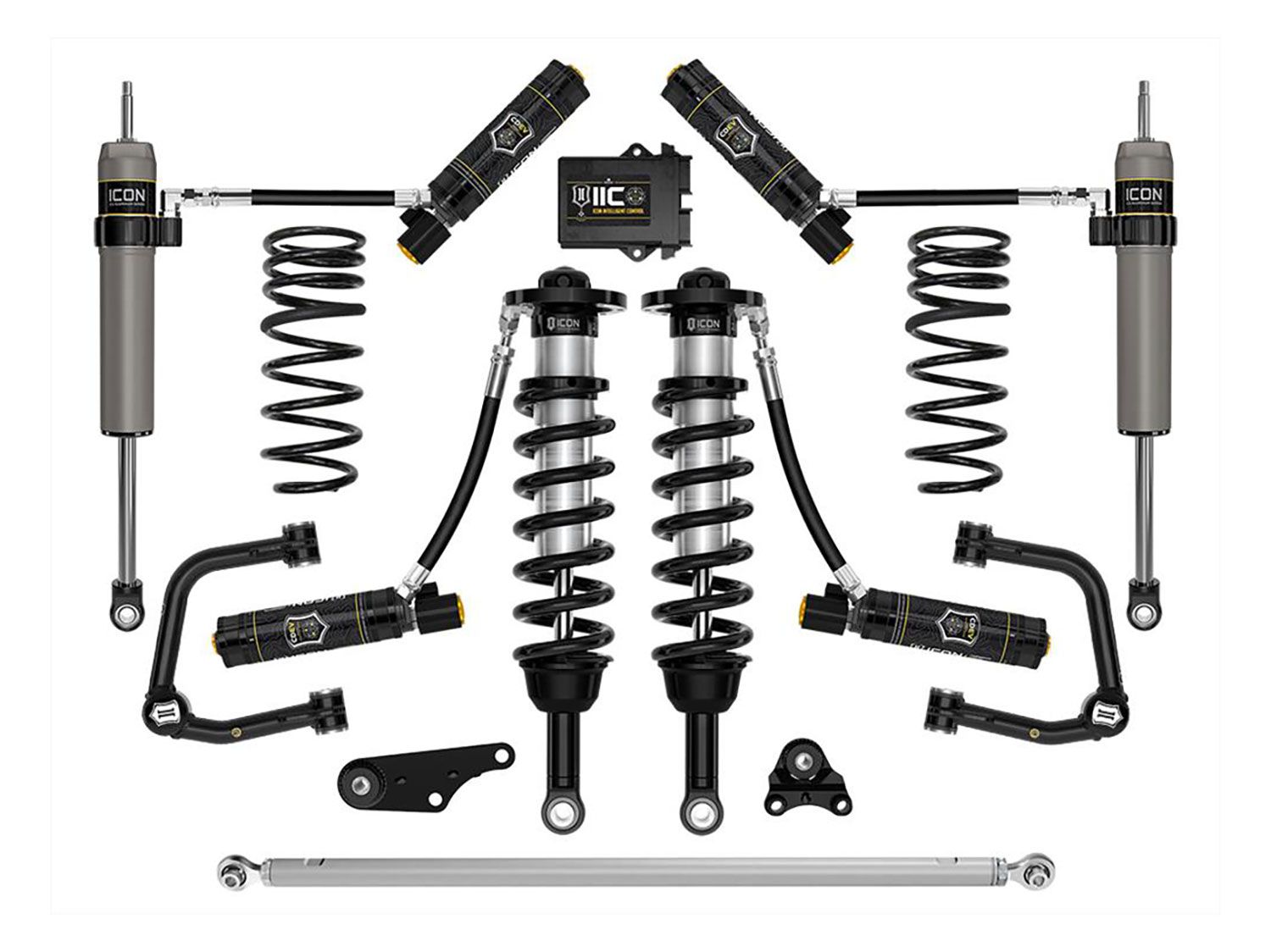

Parts Included

• 58791E (QTY: 1) | FRONT 2.5 VS RR CDEV COILOVER KIT
• 58452DJ or 58552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 57870EP (QTY: 1) | REAR 2.5 VS CDEV RR SHOCK PAIR
• 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
• 54202 (QTY: 1) | BILLET REAR ADJ TRACK BAR
• 53509 (QTY: 1) | IIC INSTALL KIT
