1.25"-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 11

Brand: Icon Vehicle Dynamics | SKU: K53371 / K53371T (Stage 11)
From $7,360.22 Regular Price $7,747.60

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The ICON Vehicle Dynamics K53371 / K53371T Stage 11 Suspension System for the Toyota Land Cruiser 250 Series is engineered to provide maximum performance for drivers who demand exceptional control and ride quality on any terrain. Designed to enhance wheel travel and damping, this system offers superior handling and comfort for both on-road and off-road adventures.

This advanced system includes vehicle-specific 2.5 Series Coilover shocks with CDEV-equipped remote reservoirs, ensuring exceptional cooling and heat dissipation under demanding conditions. ICON-engineered coil springs provide a responsive and refined ride, while the coilovers’ height adjustability from 1.25” to 3” accommodates larger, more aggressive tires. Featuring ICON Intelligent Control (IIC) technology, the system reads terrain in real-time and uses Compression Damping Electronic Valves (CDEV) for instant adjustments, delivering unmatched adaptability. The system can be wirelessly configured through the IIC app, allowing for a personalized driving experience that requires no additional driver input once set.

The Stage 11 system incorporates front differential drop brackets and optimized coilover lengths to maximize suspension travel and minimize CV bind. Polyurethane differential mounting bushings replace soft OE bushings, improving durability by reducing movement under load.

The system also includes ICON tubular steel or billet aluminum upper control arms, which optimize front-end geometry, provide additional caster, and increase suspension clearance. Equipped with the ICON Delta Joint PRO, a serviceable and rebuildable component, these control arms allow full bump and droop travel while eliminating binding and maximizing articulation. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

The dual-rate rear coil springs combine a soft primary spring rate for on-road comfort with a firmer overload rate for off-road resilience and bottoming resistance. The 2” rear lift levels the vehicle’s stance for improved performance and aesthetics. The billet adjustable rear track bar ensures precise axle alignment with on-vehicle adjustments. In contrast, the tubular rear lower links feature dual-durometer bushings for noise isolation, and FK rod ends for superior articulation and durability.

ICON 2.5 Aluminum Series CDEV rear shocks with integrated bump zones are tuned specifically for the Land Cruiser, delivering consistent damping performance and balanced handling from front to rear. The ICON Stage 11 Suspension System is the ultimate upgrade for the 2024 Toyota Land Cruiser 250 Series, offering a seamless combination of advanced technology, rugged durability, and refined comfort to confidently tackle any terrain.

Top Features and Benefits

  • Engineered for maximum performance on both on-road and off-road terrains
  • Vehicle-specific 2.5 Series Coilover shocks with CDEV-equipped remote reservoirs for exceptional cooling and heat dissipation
  • ICON-engineered coil springs provide a responsive and refined ride
  • Height-adjustable coilovers from 1.25” to 3” accommodate larger, more aggressive tires
  • ICON Intelligent Control (IIC) technology reads terrain and uses CDEV for real-time shock adjustments
  • Wirelessly configurable through the IIC app for a personalized, hands-free driving experience
  • Front differential drop brackets and optimized coilover lengths maximize suspension travel and reduce CV bind
  • Polyurethane differential mounting bushings improve durability by reducing movement under load
  • ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
  • Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
  • ICON Delta Joint PRO eliminates binding and allows full suspension travel, ensuring optimal performance on rough terrain
  • Dual-rate rear coil springs combine on-road comfort with off-road resilience and bottoming resistance
  • Provides 2” of rear lift for a level stance and improved ground clearance
  • The billet adjustable rear track bar ensures precise axle alignment with convenient on-vehicle adjustments
  • Tubular or billet rear lower links feature dual-durometer bushings for noise isolation and FK rod ends for superior articulation and durability
  • ICON 2.5 Aluminum Series CDEV rear shocks with integrated bump zones deliver consistent damping and balanced handling
  • The ultimate upgrade for the 2024 Toyota Land Cruiser 250 Series, offering advanced technology and rugged durability

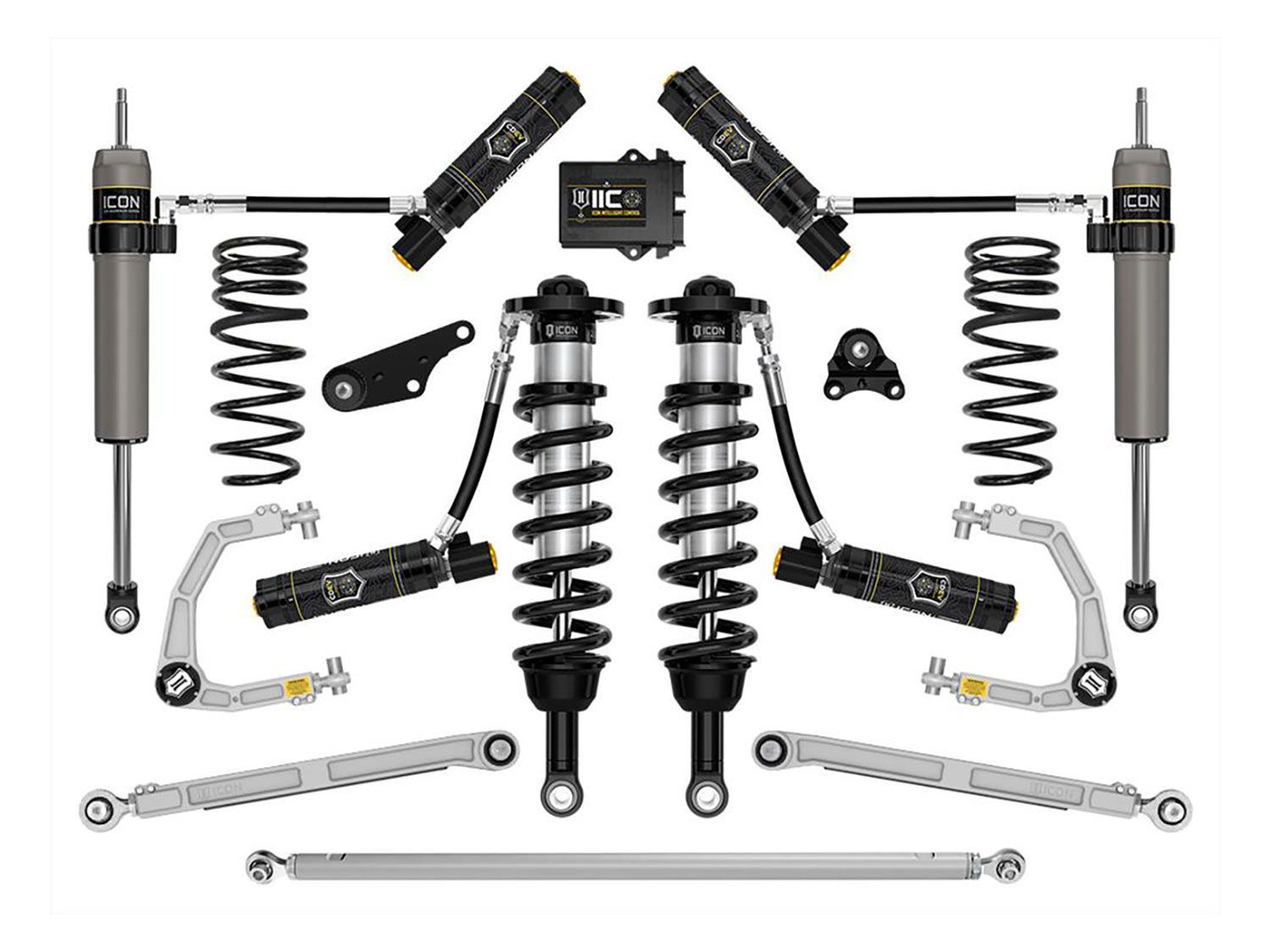

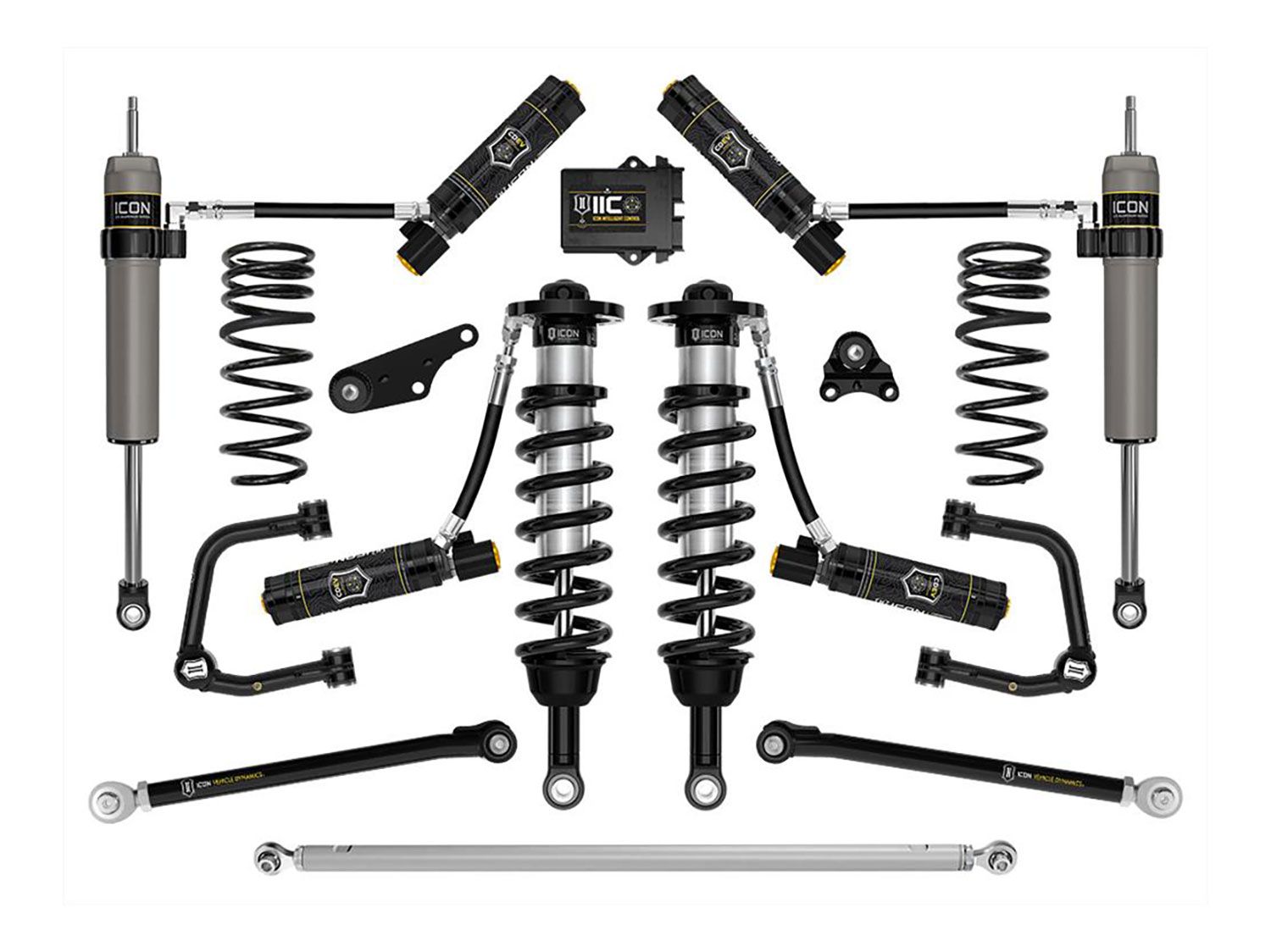

Parts Included

  • 58791E (QTY: 1) | FRONT 2.5 VS RR CDEV COILOVER KIT
  • 58452DJ or 58552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
  • 55160 (QTY: 1) | DIFF DROP KIT
  • 57870EP (QTY: 1) | REAR 2.5 VS CDEV RR SHOCK PAIR
  • 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
  • 54202 (QTY: 1) | BILLET REAR ADJ TRACK BAR
  • 54003T or 54003 (QTY: 1) | TUBULAR or BILLET REAR LOWER LINK KIT
  • 53509 (QTY: 1) | LC250 IIC INSTALL KIT
Important Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit, but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks are fully serviceable. The lift heights indicated are for a stock-equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock-equipped vehicle. Increasing the vehicle's weight due to accessories will alter the lift range.
  • TECH NOTE: An iOS-operated device is required to run the ICON Intelligent Control App
  • Vehicle Fitment
    MakeToyota
    ModelLandcruiser
    Year Fitment2024
    2WD/4WD4WD
    Tech Specs
    ManufacturerIcon Vehicle Dynamics
    Manufacturer Part NumberK53371 / K53371T (Stage 11)
    Item Numberico_k53371-k53371t
    MPN(UPC)840103430744
    Product LineLift Kits
