1.25-3" 2024 Toyota Land Cruiser 4wd Lift Kit by ICON Vehicle Dynamics - Stage 12

The ICON Vehicle Dynamics K53372 / K53372T Stage 12 Suspension System for the Toyota Land Cruiser 250 Series is engineered for drivers who demand maximum performance on and off the road. ICON's design prioritizes increased wheel travel and superior damping ability, ensuring exceptional ride quality and precise vehicle control in any terrain.

This comprehensive system features vehicle-specific 2.5 Series Coilover shocks equipped with CDEV (Compression Damping Electronic Valve) remote reservoirs for advanced cooling and optimized performance. The coilovers are adjustable from 1.25 to 3 inches for front lift, enabling the use of more prominent, aggressive tires. Remote reservoirs enhance oil volume and dissipate heat efficiently, preventing shock fade under demanding conditions. The ICON Intelligent Control (IIC) system automatically adjusts damping via the CDEV technology, responding to terrain in real-time. The system is wirelessly configurable through the IIC app, offering effortless customization and hands-free operation.

The suspension system includes ICON-engineered front differential drop brackets and polyurethane bushings, which reduce differential movement and prevent CV binding, maximizing suspension travel.

The system also includes ICON tubular steel or billet aluminum upper control arms, which optimize front-end geometry, provide additional caster, and increase suspension clearance. Equipped with the ICON Delta Joint PRO, a serviceable and rebuildable component, these control arms allow full bump and droop travel while eliminating binding and maximizing articulation. The aluminum upper control arms feature on-vehicle camber and caster adjustments.

In the rear, the dual-rate coil springs deliver a balanced combination of on-road comfort and off-road capability, with 2 inches of lift for a leveled stance. The Billet Adjustable Rear Track Bar allows precise axle centering with easy on-vehicle adjustments. Meanwhile, the tubular and billet rear upper and lower links feature dual-durometer bushings, and FK rod ends for optimal articulation and vibration damping. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones are rounding out the system. These shocks are tuned for vehicle-specific performance, ensuring a cohesive balance between front and rear suspension dynamics.

Top Features and Benefits

• Designed for the 2024 Toyota Land Cruiser 250 Series with maximum performance on and off-road.
• Increases wheel travel and damping ability for exceptional ride quality and precise vehicle control.
• 2.5 Series Coilover shocks with CDEV remote reservoirs for advanced cooling and optimized performance.
• Height adjustable from 1.25 to 3 inches of front lift, allowing for larger, more aggressive tires.
• ICON Intelligent Control (IIC) system provides real-time, automatic damping adjustments via CDEV technology.
• Wireless configuration is available through the IIC app for effortless setup and customization.
• Front differential drop brackets and polyurethane bushings reduce movement and prevent CV bind.
• ICON tubular or billet aluminum upper control arms enhance front-end geometry, add additional caster, and improve suspension clearance.
• Billet aluminum upper control arms provide on-vehicle caster/camber adjustments.
• Dual-rate rear coil springs provide on-road comfort and off-road capability, and 2 inches of rear lift ensures a level stance.
• The Billet Adjustable Rear Track Bar allows precise axle centering with on-vehicle adjustments.
• Tubular or billet rear upper and lower links feature dual-durometer bushings, and FK rod ends for optimal articulation and vibration damping.
• 2.5 Aluminum Series CDEV rear shocks with integrated bump zones deliver vehicle-specific performance and balanced dynamics.
• A versatile suspension system suitable for daily driving and extreme off-road challenges.

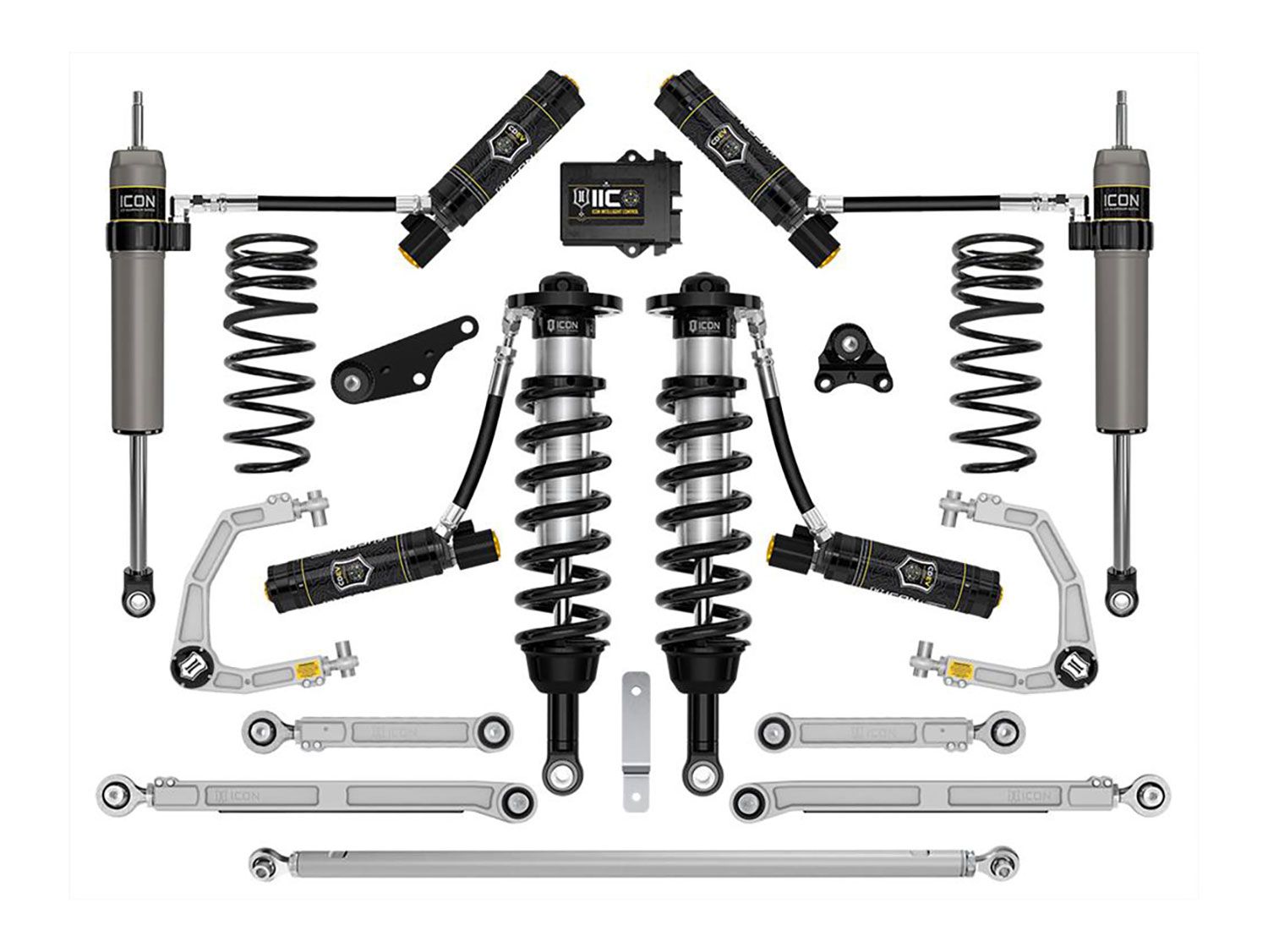

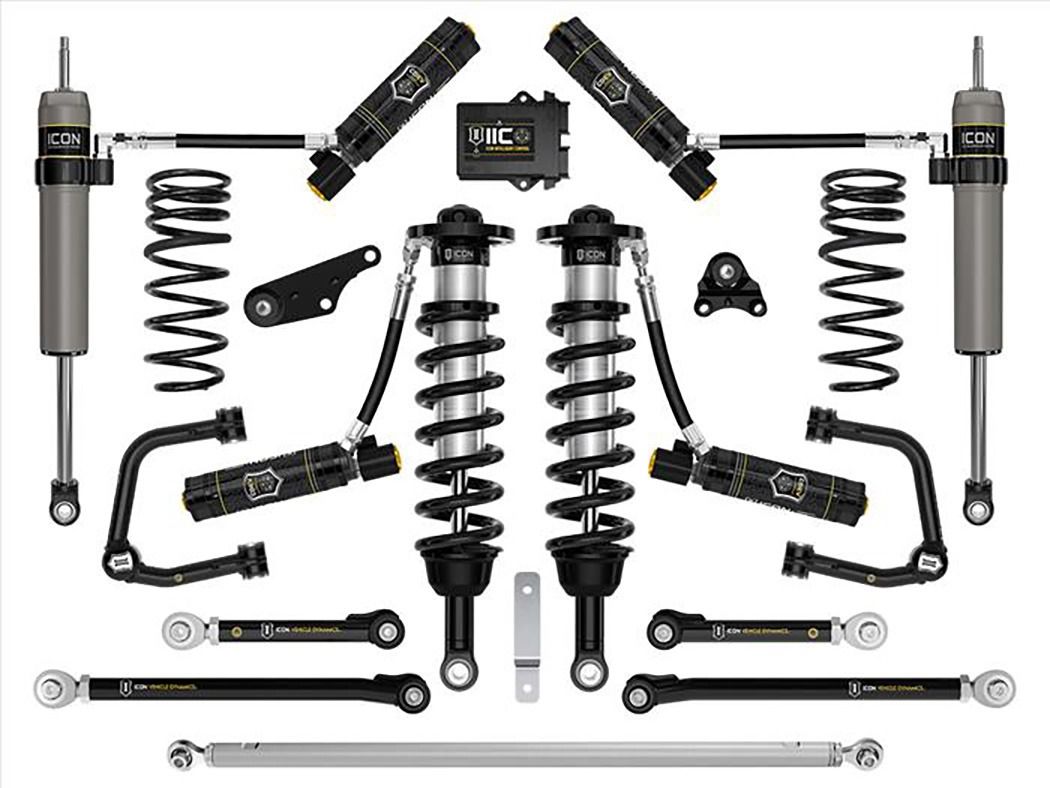

Parts Included

• 58791E (QTY: 1) | FRONT 2.5 VS RR CDEV COILOVER KIT
• 58452DJ or 54552DJ (QTY: 1) | TUBULAR or BILLET UCA DJ PRO KIT
• 55160 (QTY: 1) | DIFF DROP KIT
• 57870EP (QTY: 1) | 0-3" REAR 2.5 VS CDEV RR SHOCK PAIR
• 52752 (QTY: 1) | 2" LIFT DUAL RATE REAR COIL SPRING KIT
• 54202 (QTY: 1) | BILLET REAR ADJ TRACK BAR
• 54003T or 54003 (QTY: 1) | TUBULAR or BILLET REAR LOWER LINK KIT
• 54102T or 54102 (QTY: 1) | TUBULAR or BILLET REAR UPPER LINK KIT
• 55161 (QTY: 1) | REAR UPPER LINK SENSOR BRACKET KIT
• 53509 (QTY: 1) | LC250 IIC INSTALL KIT
