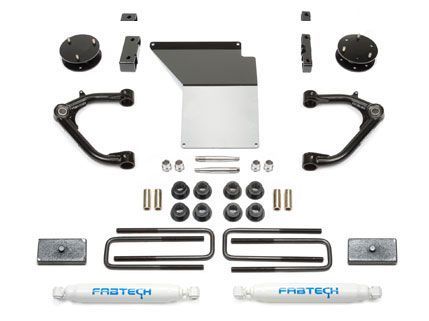

4" 2014-2018 Chevy Silverado 1500 4WD (w/aluminum or stamped steel factory arms) Performance Lift Kit by Fabtech

This system offers a mild lift height with easy installation for clearance of 33 inch tall tires. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.

The arms are constructed of top quality material including .120 inch wall 4130 Chromoly tubing with a 1.50 inch OD and 1 inch FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.

The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 inch thick steel skid plate provides protection against offroad obstacles.

Rear lift is accomplished with 1 1/2 inch rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.

Tires:
- Use 33/12.5R17 tire w/ 17x8 wheels w/ 4 1/2 inch BS w/ minor trimming
- Use 275/65R18 tire w/ 18x8 wheels w/ 4 1/2 inch BS w/ minor trimming
- Use 295/55R20 tire w/ 20x9 wheels w/ 5 inch BS w/ minor trimming
