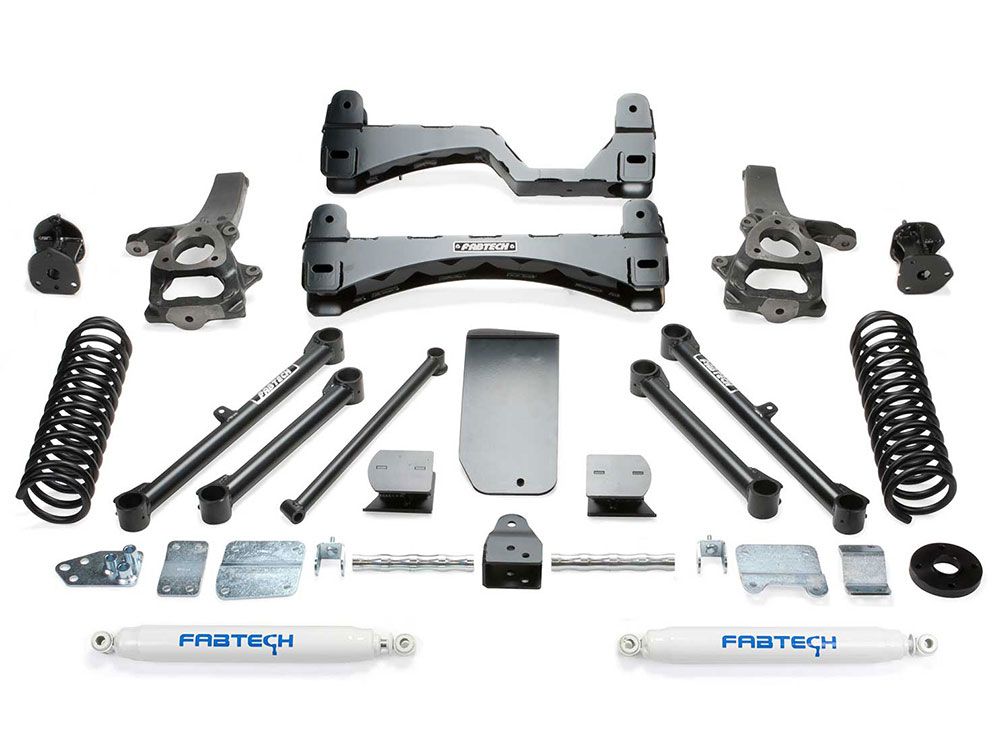

6" 2013-2018 Dodge Ram 1500 4WD Basic Lift Kit by Fabtech

Our Ram 1500 6 inch system features Fabtech’s proven IFS technology with extended length steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4 inch thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain.

In the Basic system lift is accomplished via a steel coilover shock spacer system retaining the stock ride characteristics of the vehicle.

Rear lift is accomplished with replacement performance coil springs along with new upper and lower link arms for the proper pinion angle without loss of ground clearance.

Shock Features:
- Twin Tube Hydraulic Construction
- 9/16 inch Hardened Chrome Piston Rod
- 1 3/8 inch OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving

Tire Fitment:
- Use 325/65R18 tires w/ 18x9 wheels w/ 4.5 inch BS w/ minor trimming
- Use 35/13.50R18 tires w/ 18x9 wheels w/ 4.5 inch BS w/ minor trimming
- Use 35/12.50R20 tires w/ 20x10 wheels w/ 4.5 inch BS w/ minor trimming
