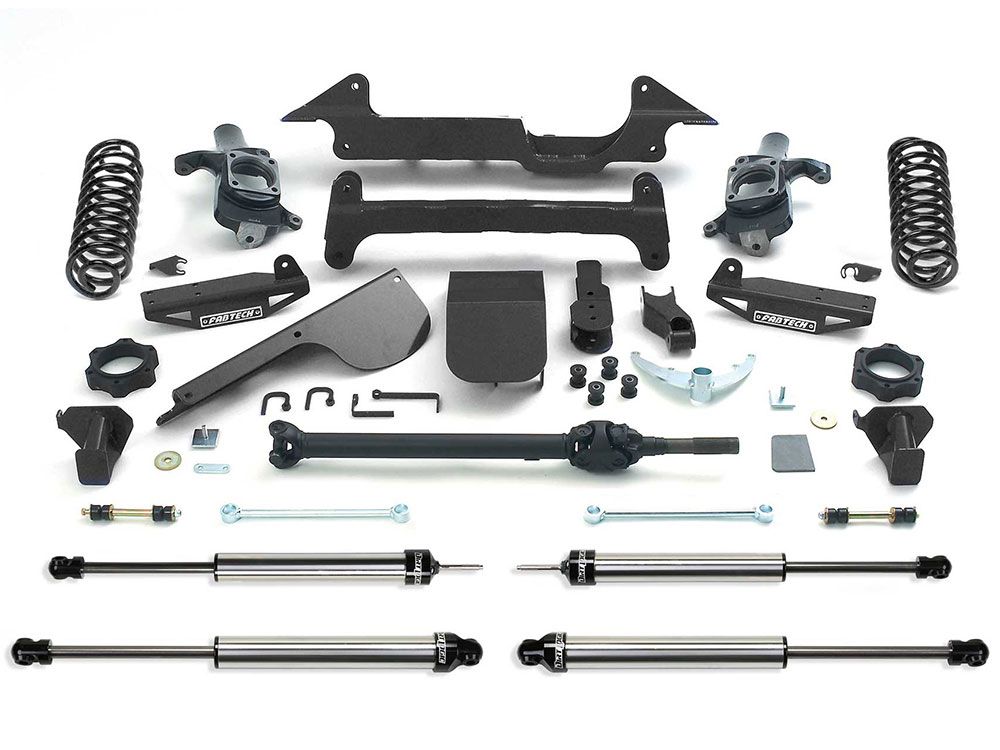

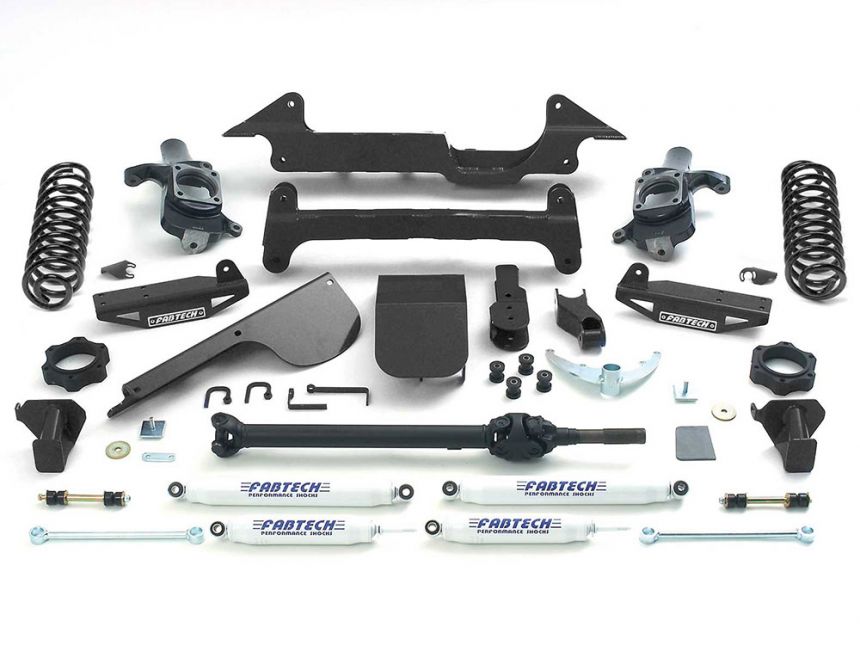

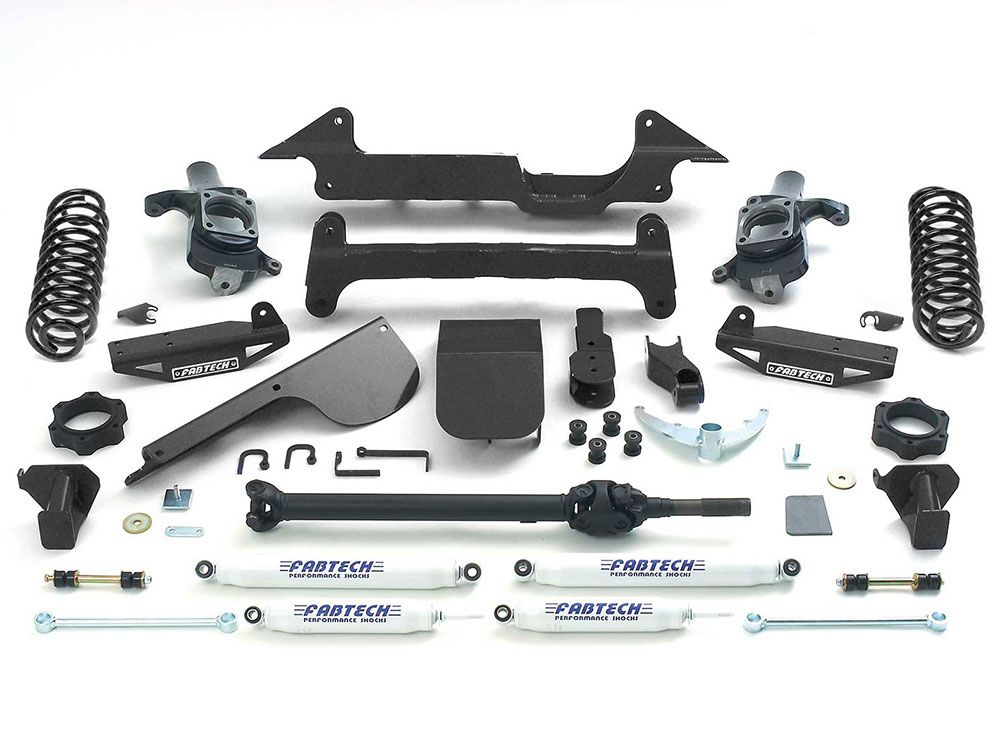

6" 2003-2008 Hummer H2 SUV / SUT 4wd (w/factory rear coil springs) Lift Kit by Fabtech

Brand: Fabtech | SKU: K5000 / K5000M / K5000DL
As low as $3,821.73 Regular Price $4,246.37

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Fabtech's K5000 / K5000M / K5000DL 6 inch lift kit for the Hummer H2 (eqipped with factory rear coil springs) is a high quality suspension upgrade that will allows for use of up to 37 inch diameter tires. Featuring a combination of extended steering knuckles and high clearance crossmembers to lift the front end along with a front driveshaft to allow for smooth driveline operation. Rear lift is done with extended coil springs.

Choose your shock!  You can select from the hydraulic Peformance shocks, the monotube Stealth shocks or the ultimate Dirt Logic 2.25 shocks that feature a stainless steel body.

Top Features and Benefits

  • Allows use of 37 inch tires
  • Extended length ducticle iron steering knuckles
  • 1/4 inch thick differential and transfer case skid plates
  • Extended front driveshaft
  • Rear coil springs
  • Limited Lifetime Warranty

Product Highlights

Fabtech Peformance Shocks
Affordable Option: These shocks absorber uses twin tube hydraulic construction with 9 stage valving for great ride control. Designed to function great on and off-road using heavy duty components like a 9/16 inch piston rod and 1 3/8 inch OD piston. Featuring a classic white finish.

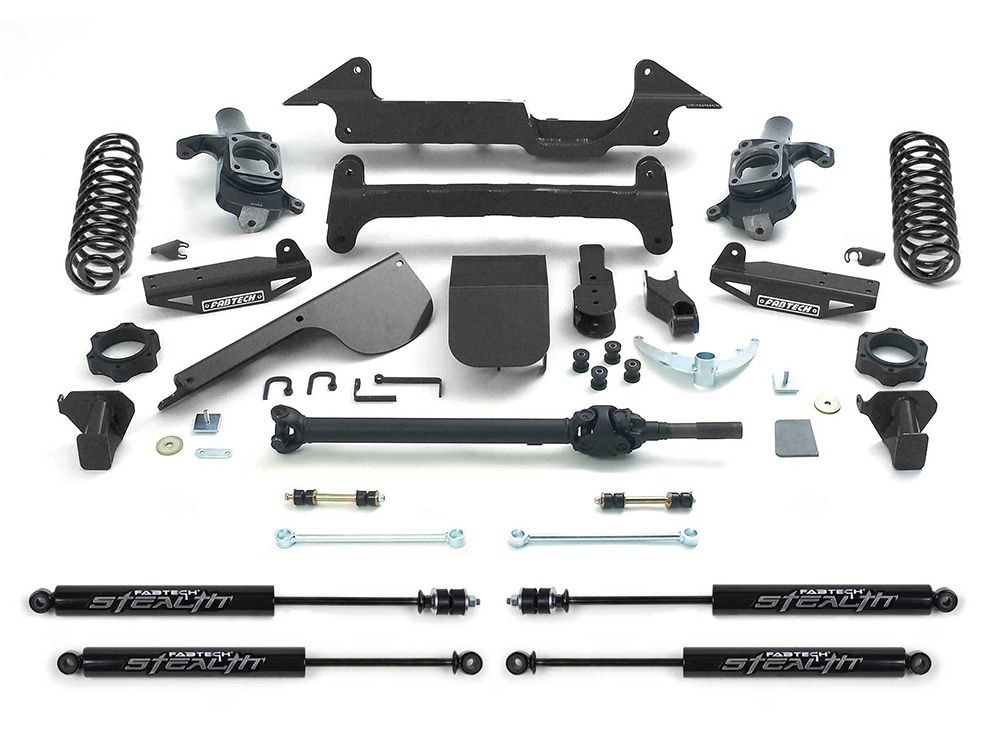

Fabtech Stealth Shocks
Mid-Range Option: These all black monotube gas shocks feature a 50mm OD seamless steel body with a distinct raised metal nameplate.  A 46mm high flow piston separates gas from oil for a consistant ride. Designed to give a superior ride on and off-road while looking great.
Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
Important NotesDoes not fit models with factory equipped air bags.
Vehicle Fitment
Year Fitment2008, 2007, 2006, 2005, 2004, 2003
Tech Specs
Manufacturer Part NumberK5000 / K5000M / K5000DL
Item Numberfab_k5000-k5000m-k5000dl
Product LineLift Kits
Lift Height6 inch
SpecialCall for Price Match!
